Voice Browser Call Control: CCXML Version 1.0

W3C Working Draft 22 November 2006

This version:
http://www.w3.org/TR/2006/WD-ccxml-20061122/
Latest version:
http://www.w3.org/TR/ccxml/
Previous version:
http://www.w3.org/TR/2005/WD-ccxml-20050629/
Editor:
RJ Auburn, Voxeo <rj@voxeo.com>

Copyright ©2006 W3C® (MIT, ERCIM, Keio), All Rights Reserved. W3C liability, trademark and document use rules apply.

Abstract

This document describes CCXML, or the Call Control eXtensible Markup Language. CCXML is designed to provide telephony call control support for dialog systems, such as VoiceXML [VOICEXML]. While CCXML can be used with any dialog systems capable of handling media, CCXML has been designed to complement and integrate with a VoiceXML interpreter. Because of this there are many references to VoiceXML's capabilities and limitations. There are also details on how VoiceXML and CCXML can be integrated. However, it should be noted that the two languages are separate and are not required in an implementation of either language. For example, CCXML could be integrated with a more traditional Interactive Voice Response (IVR) system or a 3GPP Media Resource Function (MRF), and VoiceXML or other dialog systems could be integrated with other call control systems.

Status of this Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This specification describes the Call Control XML (CCXML) markup language that is designed to provide telephony call control support for VoiceXML or other dialog systems. This document has been produced as part of the W3C Voice Browser Activity, following the procedures set out for the W3C Process. The authors of this document are members of the Voice Browser Working Group (W3C Members only).

This Working Draft addresses many of the comments that came up during the last call review and a number of minor changes that came up during the implementation report. This is not a Last Call Working Draft, as this publication is only meant as a public update on the work of the Working Group. The publication of the next Last Call Working Draft is expected soon, followed by the Candidate Recommendation.

This document is also available as a non-normative HTML page showing the changes since previous revisions. For a detailed list please see Changes in Working Draft 7.

A Implementation Report Plan is currently being developed for this specification. The Working Group currently expects to require at least two independently developed interoperable implementations of each required feature, and at least one implementation of each feature, in order to exit the next phase of this document, the Candidate Recommendation phase. To help the Voice Browser Working Group build such a report, reviewers are encouraged to implement this specification and to indicate to W3C which features have been implemented, and any problems that arose.

This document is for public review. Comments and discussion are welcomed on the public mailing list < www-voice@w3.org >. To subscribe, send an email to <www-voice-request@w3. org> with the word subscribe in the subject line (include the word unsubscribe if you want to unsubscribe). The archive for the list is accessible on-line.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Conventions of this Document

In this document, the key words "must", "must not", "required", "shall", "shall not", "should", "should not", "recommended", "may", and "optional" are to be interpreted as described in [RFC2119] and indicate requirement levels for compliant CCXML implementations.

Table of Contents

1: Introduction

This document describes CCXML, the Call Control eXtensible Markup Language. CCXML provides declarative markup to describe telephony call control. CCXML is a language that can be used with a dialog system such as VoiceXML [VOICEXML].

CCXML can provide a complete telephony service application, comprised of Web server CGI compliant application logic, one or more CCXML documents to declare and perform call control actions, and to control one or more dialog applications that perform user media interactions

Since platforms implementing CCXML may choose to use one of many telephony call control definitions (JAIN Call Control [JSR021], ECMA CSTA [CSTA], S.100 [S.100], etc.), the call control model in CCXML has been designed to be sufficiently abstract so that it can accommodate all major definitions. For relatively simple types of call control, this abstraction is straightforward. The philosophy in this regard has been to "make simple things simple to do." Outdial, transfer (redirect), two-party bridging, and many forms of multi-party conferences fall within this classification.

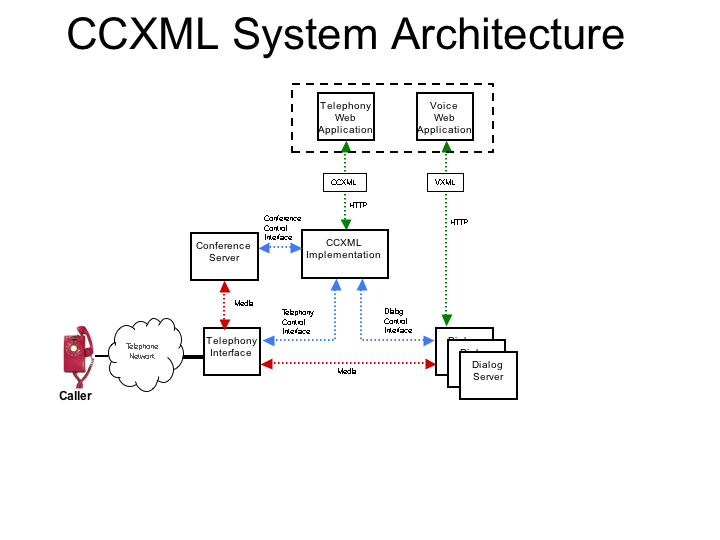

Figure 1 shows the architecture of a telephony implementation consisting of four primary components:

The Telephony Web Application may or may not be integrated with the Voice Web Application.

The Telephony Control and Dialog Control Interfaces may be implemented as an API or protocol.

The components as shown in the figure below represent logical functions, and are not meant to imply any particular architecture.

CCXML architecture overview
Figure 1

2: Motivation (Informative)

CCXML is designed to complement dialog systems such as VoiceXML by providing advanced telephony functions. It also can be used as a third-party call control manager in any telephony system. This document contains references to VoiceXML's capabilities and limitations, as well as details on how VoiceXML and CCXML can be integrated.

The CCXML specification originated from the desire to handle call control requirements that were beyond the scope of the VoiceXML specification. The following requirements are addressed by this specification:

CCXML and VoiceXML implementations are not mutually dependent. A CCXML implementation may or may not support voice dialogs, or may support dialog languages other than VoiceXML.

3: Concepts and Architecture

A CCXML application consists of a collection of CCXML documents that control and manage the objects listed below:

CCXML programs manipulate these entities through elements defined in the CCXML language. They can also send and/or receive asynchronous events associated with these entities.

CCXML programs directly manipulate Connection Objects and Conference Objects with various elements in the language, such as <accept>, <createconference>, and <join>. CCXML may also receive events from Connection and Conference Objects, in the case of line signaling, line-status informational messages, or error and failure scenarios.

CCXML programs can start and kill Voice Dialogs using language elements. It can receive events from Voice Dialogs, which may be standardized events such as dialog.exit, or application-specific ones. CCXML can support sending of an event to a Voice Dialog.

CCXML programs can create other CCXML sessions using <createccxml>. This is the only guaranteed control mechanism a CCXML Session ever wields over another. Any other interaction takes place through the event mechanism. CCXML Sessions can both send and receive events between one another.

3.1: Event Processing

Telephone applications need to receive and process large numbers of events in real-time. These events arrive from outside the program itself - either the underlying telephony platform, or from other sources of events.

A CCXML program includes event handlers which are executed when certain events arrive. There are mechanisms for passing information back and forth between Voice Dialogs (such as VoiceXML) and CCXML, but the important points are that CCXML:

Note: References to threads are meant as logical threads and do not imply any specific platform implementation.

3.2: Conferencing

CCXML provides a powerful and flexible method of creating multi-party calls based on the following concepts:

3.3: Scripting

The computational semantics of CCXML language is based on the ECMAScript Compact Profile (ES-CP, also known as ECMA-327) [ECMA327]. ES-CP is a strict subset of the third edition of ECMA-262 [ECMASCRIPT]. Execution efficiency is a primary goal of CCXML implementations, and ES-CP was chosen to ensure that CCXML implementations can operate in a variety of execution environments and without excessive execution overhead.

The ES-CP document specification states:

'ECMAScript Compact Profile is a subset of ECMAScript 3rd Edition tailored to resource-constrained devices such as battery powered embedded devices. Therefore, special attention is paid to constraining ECMAScript features that require proportionately large amounts of system memory (both for storing and executing the ECMAScript language features) and continuous or proportionately large amounts of processing power.'

While CCXML implementations are not necessarily intended for battery powered embedded devices, it is intended to be used in large, real-time telephony platforms managing thousands of lines. The constraints of ES-CP emphasize CCXML's ongoing concern for execution efficiency.

Even though ES-CP tends to be implemented using interpreters, CCXML does not require an interpretive implementation. ES-CP can be compiled to a target language such as C, and thus in turn to machine code, so that CCXML documents which are static can be rendered once in machine code. For example, a CCXML implementation, for optimization purposes, could translate and compile frequently used CCXML documents on their way from the document server to the CCXML execution environment in order to avoid multiplying interpretive overhead by the number of lines that execute the same document.

The emphasis on efficiency in CCXML language is also shown by the avoidance of requirements which can only be implemented either by interpretation or by run-time evaluation.

The choice of an implementation strategy is up to the CCXML implementer and CCXML language is aimed to allow a range of design choices in order to accommodate implementations on a wide variety of platforms.

A CCXML implementation MUST support the ECMAScript Compact Profile.

3.4: Definitions

The following terms, which are used throughout this specification, are defined as:

3.5: Session Life-Cycle

3.5.1: Startup

A CCXML session can be started for the following reasons:

To create a CCXML session, the URI for the initial CCXML document must be known, along with any fetching parameters affecting how that CCXML document is retrieved. For incoming calls, the selection of the initial URI and fetching parameters is platform-dependent, and MAY be based on information from the incoming call. Sessions created via <createccxml> and the session creation event I/O processor determine the initial URI and fetching parameters as stated in this specification.

When a session is started due to an incoming call it has ownership of the new Connection that caused it to be created. The new CCXML session will be responsible for processing the Connection state events and performing the Connection actions. If the session was started because of a <createccxml>, it will start without ownership of any event endpoints. In the case of an external session launch the session will not own any event endpoints.

A CCXML application can determine the reason its session was started by evaluating the contents of the session.startupmode session variable that is defined in the Session Variables section.

3.5.2: Shutdown

A CCXML session can end in one of the following ways:

When a CCXML session ends, all active connections, conferences and dialogs that are owned by that session are automatically terminated by the platform.

3.5.3: Session Life-Cycle Diagrams

The following diagrams illustrate the session life-cycle of several different scenarios. These diagrams do not show all possible scenarios but rather show some of the most common ones that CCXML applications may encounter.

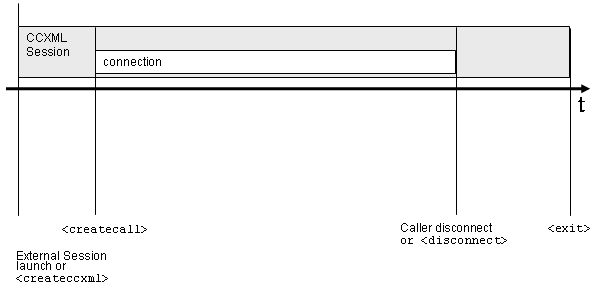

3.5.3.1: session can live before and after active connections (or no connections at all)

A CCXML session does not necessarily need to have any connections associated with it. After starting, a session may acquire connections as a result of <createcall> or <move> requests.

Session lifecycle diagram

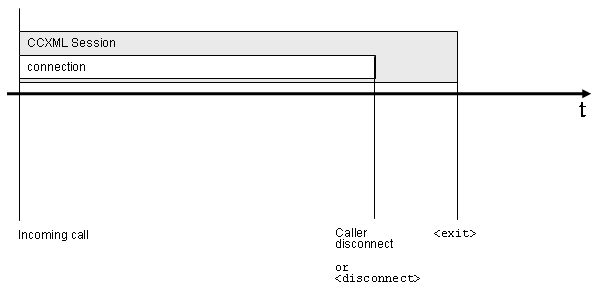

3.5.3.2: connection life shorter than session

In this example, the session is started due to an incoming call. A connection is typically shorter than a session. A session does not end when a connection terminates.

Session lifecycle diagram

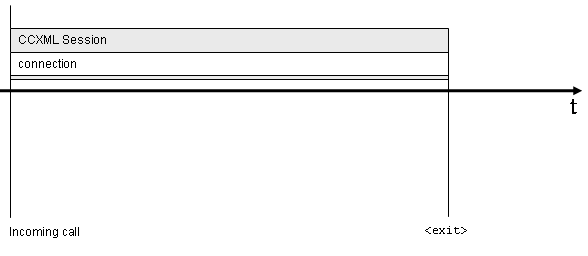

3.5.3.3: session ends, kills all active connections

When a session ends, any resources, including connections owned by that session are terminated.

Session lifecycle diagram

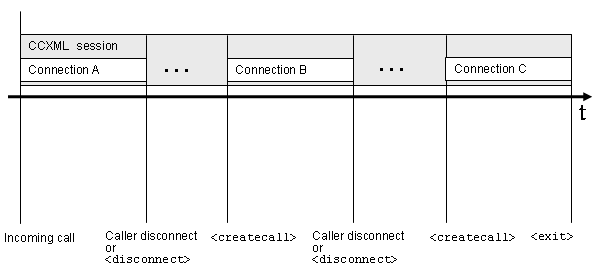

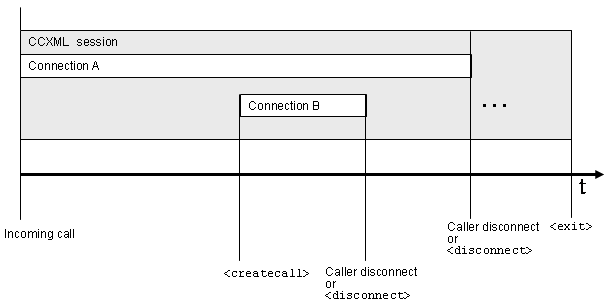

3.5.3.4: session can have multiple sequential connections

A session can have multiple sequential connections

Session lifecycle diagram
3.5.3.5: session can have multiple sequential connections and multiple concurrent connections

In addition to having multiple sequential connections, a session can have multiple concurrent connections.

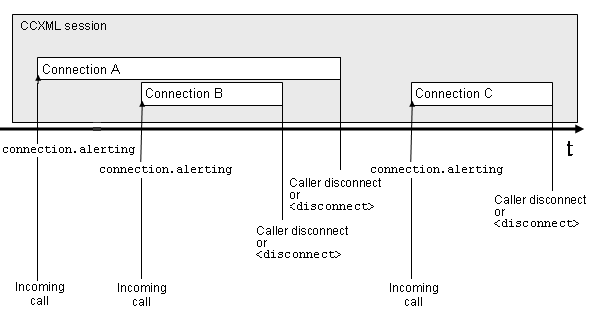

Session lifecycle diagram

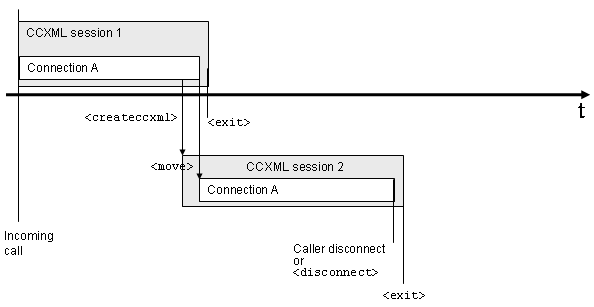

3.5.3.5: move a connection to a newly created session

A connection can be moved from one CCXML session to another session. In the figure below, CCXML session (1) creates a new CCXML session (2) via <createccxml>. Then, the connection is moved from the original CCXML session to the new session.

Session lifecycle diagram

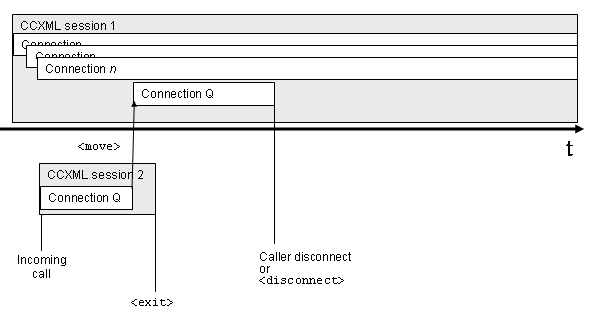

3.5.3.7: move a connection to a "master" session

A connection can be moved from one CCXML session to another session, such as a "master" session.

Session lifecycle diagram
3.5.3.8: optional "master" session for inbound call handling

Implementations MAY, as a platform-specific optimization, choose to deliver more than one inbound call to a single "master" session. This can be viewed as equivalent to sessions handling incoming calls performing a <move>, as described in 3.5.3.7, of the new Connection (including the connection.alerting event) to the single "master" CCXML session.

The default inbound call handling behavior for CCXML implementations is to create a new CCXML session and deliver the connection.alerting event to it. If a platform supports delivery of multiple inbound calls to a single session, the way this is configured is implementation specific.

Session lifecycle diagram

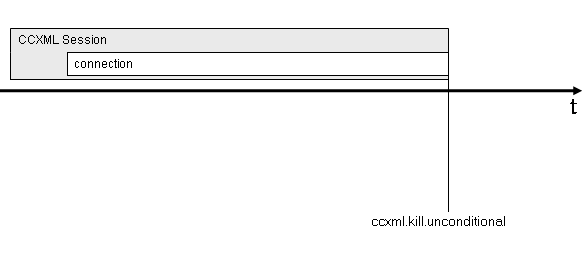

3.5.3.9: ccxml.kill.unconditional event raised

If at anytime a ccxml.kill.unconditional event is raised by the underlying implementation, the CCXML session is immediately terminated and all active connections, conferences and dialogs that are owned by that session are automatically terminated by the platform.

Session lifecycle diagram

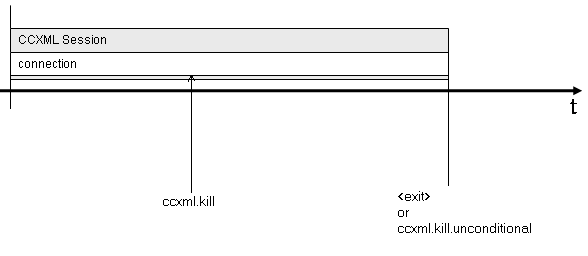

3.5.3.10: Normal session shutdown requested by the platform

If at anytime the platform wishes to terminate a CCXML session it MUST raise a ccxml.kill event to inform the CCXML application. The normal response to this event is for the CCXML application to perform any clean up and termination of current active connections, conferences or dialogs and then execute an <exit> element.

If the CCXML application does not respond to the ccml.kill event in a timely manner the platform MAY then raise a ccxml.kill.unconditional event to immediately terminate the CCXML session and all active connections, conferences, and dialogs that are owned by the session.

Session lifecycle diagram

4: Simple Examples

4.1: Hello World

This simple CCXML document shows an example of a "hello world" application that is started due to an incoming call where the application simply assigns a value to a variable, prints a message to the platform log and exits:

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0" xmlns="http://www.w3.org/2002/09/ccxml">
  <eventprocessor>
    <transition event="connection.alerting">
      <var name="MyVariable" expr="'This is a CCXML Variable'"/>
      <log expr="'Hello World. I just made a variable: ' + MyVariable"/>
      <log expr="'Lets hang up on this incoming call.'"/>
      <exit/>
    </transition>
  </eventprocessor>
</ccxml>

4.2: Accept or Reject a Call

This CCXML document shows an example of how to process a incoming call event and answer or reject the call based on the phone number of the calling party:

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0" xmlns="http://www.w3.org/2002/09/ccxml">
  <eventprocessor>

    <transition event="connection.alerting">
      <log expr="'The number called is' + event$.connection.remote + '.'"/>
      <if cond="event$.connection.remote == 'tel:+18315551234'">
        <log expr="'Go away! we do not want to answer the phone.'"/>
        <reject/>
      <else/>
        <log expr="'We like you! We are going to answer the call.'"/>
        <accept/>
      </if>
    </transition>
    <transition event="connection.connected">
      <log expr="'Call was answered,Time to disconnect it.'"/>
      <disconnect/>
    </transition>
    <transition event="connection.disconnected">
      <log expr="'Call has been disconnected. Ending CCXML Session.'"/>
      <exit/>
    </transition>

  </eventprocessor>
</ccxml>

4.3: Simple Dialog

This is an example of running a simple VoiceXML dialog from CCXML. The application answers an incoming phone call and then connects it to a VoiceXML dialog that returns a value that is then logged to the platform:

dialog.ccxml:

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0" xmlns="http://www.w3.org/2002/09/ccxml">
  <!-- Lets declare our state var -->
  <var name="state0" expr="'init'"/>

  <eventprocessor statevariable="state0">
    <!-- Process the incoming call -->
    <transition state="init" event="connection.alerting">
      <accept/>
    </transition>
    <!-- Call has been answered -->
    <transition state="init" event="connection.connected">
      <log expr="'Houston, we have liftoff.'"/>
      <dialogstart src="'dialog.vxml'"/>
      <assign name="state0" expr="'dialogActive'" />

    </transition>
    <!-- Process the incoming call -->
    <transition state="dialogActive" event="dialog.exit">
      <log expr="'Houston, the dialog returned [' + event$.values.input + ']'" />
      <exit />
    </transition>
    <!-- Caller hung up. Lets just go on and end the session -->
    <transition event="connection.disconnected">
      <exit/>
    </transition>
    <!-- Something went wrong. Lets go on and log some info and end the call -->
    <transition event="error.*" >
      <log expr="'Houston, we have a problem: (' + event$.reason + ')'"/>
      <exit/>
    </transition>
  </eventprocessor>
</ccxml>

dialog.vxml:

<?xml version="1.0"?>
<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
  <form id="Form">
    <field name="input" type="digits">
      <prompt>
        Please say some numbers ...
      </prompt>
      <filled>
        <exit namelist="input"/>
      </filled>
    </field>
  </form>
</vxml>

5: CCXML Elements Listing

<accept> Accept an incoming phone call
<assign> Assign a variable a value
<cancel> Cancel a CCXML event timer
<ccxml> CCXML container element
<createcall> Make an outbound call
<createccxml> Create a new CCXML session
<createconference> Create a multi-party audio conference
<destroyconference> Destroy a multi-party audio conference
<dialogprepare> Prepare a dialog for execution
<dialogstart> Start a dialog session's execution
<dialogterminate> Stop a dialog session's execution
<disconnect> Terminate a phone connection
<else> Used in <if> statements
<elseif> Used in <if> statements
<eventprocessor> Block of event-processing statements
<exit> Ends execution of the CCXML session
<fetch> Preload a CCXML file
<goto> Move execution to a new location
<if> Conditional logic
<join> Connect two audio sources
<log> Log to the platform debug log
<merge> Merge two connections at the network level
<meta> Override HTTP headers and provide document metadata
<metadata> Provide document metadata
<move> Move an event source to another ccxml session
<redirect> Redirect an incoming call to a new endpoint
<reject> Reject an incoming phone call
<script> Run ECMA Script
<send> Generate an event
<transition> A single event-processor block
<unjoin> Disconnect two audio sources
<var> Declare a variable

6: Document Control Flow and Execution

6.1: Overview

A CCXML session begins with the execution of a CCXML document. The flow of the execution can be changed with the help of <if>, <elseif>, <else>, <fetch>, and <goto>. Most of a CCXML session's execution will take place within an <eventprocessor>, which processes a stream of incoming events.

A CCXML session can consist of multiple CCXML documents, traversed by use of <goto> and <fetch>.

A new CCXML session has a new session object (session.*). A CCXML session can contain multiple active connections.

A CCXML session may launch a new CCXML session using <createccxml>. The new CCXML session executes in an independent context and variable space from the original CCXML session, completely independent of the lifetime of the original session. Sessions can communicate by sending messages via <send>.

The CCXML media type application/ccxml+xml is defined in [RFC4267]

This media type should be used for a XML document containing CCXML content.

6.2: Elements

This section details the CCXML elements for control flow and execution.

6.2.1: <ccxml>

6.2.1.1: Overview

This is the parent element of a CCXML document and encloses the entire CCXML script in a document. When a <ccxml> is executed, its child elements are collected logically together at the beginning of the document and executed in document order before the target <eventprocessor>. This is called document initialization.

The <ccxml> can designate the CCXML namespace. This can be achieved by declaring an xmlns attribute or an attribute with an " xmlns " prefix. See [XMLNS] for details. Note that when the xmlns attribute is used alone, it sets the default namespace for the element on which it appears and for any child elements. The namespace URI for CCXML is "http://www.w3.org/2002/09/ccxml".

6.2.1.2: <ccxml> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
version true string none 1.0 The version of this CCXML document. The initial version number must be 1.0.
xml:base false valid URL none A valid URL The base URI for this document as defined in [XML-BASE]. As in [HTML], a URI which all relative references within the document take as their base.

6.2.2: <meta>

6.2.2.1: Overview

The <metadata> and <meta> are containers in which information about the document can be placed. The <metadata> provides more general and powerful treatment of metadata information than <meta> by using a metadata schema.

A <meta> declaration associates a string to a declared meta property or declares " http-equiv " content. Either a name or http-equiv attribute is REQUIRED. It is an error to provide both name and http-equiv attributes. A content attribute is REQUIRED. The http-equiv attribute has a special significance when documents are retrieved via HTTP. Although the preferred method of providing HTTP header information is by using HTTP header fields, the " http-equiv " content MAY be used in situations where the CCXML document author is unable to configure HTTP header fields associated with their document on the origin server, for example, cache control information. Note that, as with <meta> in HTML documents [HTML], HTTP servers and caches are not REQUIRED to introspect the contents of <meta> in CCXML documents and thereby override the header values they would send otherwise.

Informative: This is an example of how <meta> can be included in a CCXML document to specify a resource that provides additional metadata information and also indicate that the document MUST NOT be cached.

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0"
       xmlns="http://www.w3.org/2002/09/ccxml">
       <meta name="seeAlso"
content="http://example.com/my-ccxml-metadata.xml"/>
       <meta http-equiv="Cache-Control" content="no-cache"/>
</ccxml>

<meta> is an empty element.

6.2.2.2: <meta> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
name false This attribute must not be specified in conjunction with the http-equiv attribute NMTOKEN none seeAlso The NAME of the metadata property.
The seeAlso property must be used to specify a resource that might provide additional metadata information about the content.
Either the name or the http-equiv attribute has to be specified. If neither of them is specified, or if both are specified, an error.fetch event must be thrown.
http-equiv false This attribute must not be specified in conjunction with the name attribute NMTOKEN none A valid HTTP header The NAME of an HTTP response header.
This attribute has special significance when documents are retrieved via HTTP. The http-equiv content may be used in situations where the CCXML document author is unable to configure HTTP header fields associated with their document on the origin server.
Either the name or the http-equiv attribute has to be specified. If neither of them is specified, or if both are specified, an error.fetch event must be thrown.
content true string none The value of the metadata property.

6.2.3: <metadata>

6.2.3.1: Overview

<metadata> is a container in which information about the document can be placed using a metadata language. Although any metadata language can be used within <metadata>, it is recommended that the Resource Description Format [RDF] be used in conjunction with the general metadata properties defined by the Dublin Core Metadata Initiative [DC].

RDF [RDF-SYNTAX] is a declarative language and provides a standard way for using XML to represent metadata in the form of statements about properties and relationships of items on the Web. A recommended set of generally applicable metadata properties (e.g., " title ", " creator ", " subject ", " description ", " copyrights ", etc.) is the Dublin Core Metadata Element Set [DC], used in the example below.

Document properties declared with <metadata> can use any metadata schema.

Informative: This is an example of how <metadata> can be included in a CCXML document using the Dublin Core version 1.0 RDF schema [DC] describing general document information such as title, description, date, and so on:

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0"
       xmlns="http://www.w3.org/2002/09/ccxml">
  <metadata>
   <rdf:RDF
       xmlns:rdf = "http://www.w3.org/1999/02/22-rdf-syntax-ns#"
       xmlns:dc = "http://purl.org/dc/elements/1.1/">
   <!-- Metadata about CCXML document -->
   <rdf:Description rdf:about="http://www.example.com/meta.ccxml"
       dc:title="Hamlet-like Soliloquy"
       dc:description="Aldine's Soliloquy in the style of Hamlet"
       dc:publisher="W3C"
       dc:language="en"
       dc:date="2002-11-29"
       dc:rights="Copyright 2002 Aldine Turnbet"
       dc:format="application/ccxml+xml" >
       <dc:creator>William Shakespeare</dc:creator>
       <dc:creator>Aldine Turnbet</dc:creator>
   </rdf:Description>
  </rdf:RDF>
 </metadata>
</ccxml>

The following CCXML elements can occur within the content of <metadata> : none .

6.2.3.2: <metadata> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
none none none

6.2.4: <if>

6.2.4.1: Overview

<if> is a container for conditionally executed elements. <else> and <elseif> can optionally appear within an <if> as immediate children, and serve to partition the elements within an <if>. <else> and <elseif> have no content. <else/> is a synonym for <elseif cond="true"/>.

Each partition within an <if> is preceded by an element having a cond attribute. The initial partition is preceded by the <if> and subsequent partitions by <elseif>s (or <else>s). The first partition in document order with a cond that evaluates to true is selected. <else> always evaluate to true. A partition MAY be empty.

If an <if> has no immediate <elseif> or <else> children, the full contents of the <if> will be selected when the cond attribute is true.

<else> was chosen to match similar concepts in other languages, and supports examples such as

<if cond="...">
  <!-- selected when <if cond> is true -->
  <else/>
    <!-- selected when <if cond> is false -->
  </if>.

However, <else> is a synonym for <elseif cond="true"/>, so an example such as

<if cond="...">
  <!-- selected when <if cond> is true -->
<else/>
  <!-- selected when <if cond> is false -->
<else/>
  <!-- never selected -->
</if>
is also possible and MUST be interpreted as
<if cond="...">
  <!-- selected when <if cond> is true -->
<elseif cond="true"/>
  <!-- selected when <if cond> is false -->
<elseif cond="true"/>
  <!-- never selected -->
</if>.

With this definition for <else>, CCXML provides familiar if/elseif/else semantics, but conforms to the rules of valid XML [XML] documents.

6.2.4.2: <if> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
cond true ECMAScript Expression none A valid ECMAScript expression An ECMAScript expression which can be evaluated to true or false.

6.2.5: <elseif>

6.2.5.1: Overview

An <elseif> partitions the content of an <if>, and provides a condition that determines the selection of the partition it begins. <elseif> can appear optionally as an immediate child of an <if>.

6.2.5.2: <elseif> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
cond true ECMAScript Expression none A valid ECMAScript expression An ECMAScript expression which can be evaluated to true or false.

6.2.6: <else>

6.2.6.1: Overview

<else> is a synonym for <elseif cond="true"/>.

6.2.6.2: <else> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
none none else is a synonym for elseif cond="true".

6.2.7: <fetch>

6.2.7.1: Overview

<fetch> is used to asynchronously fetch content identified by the attributes of the <fetch>. The fetched content may either be a CCXML document, or script content. Content that has been acquired using <fetch> is accessible through other elements defined by CCXML. Execution returns from the element immediately, and the CCXML application can continue on while the platform works to fetch the identified resource. When the fetch request has been completed, an event is generated against the session that initiated the fetch. The event is one of fetch.done, which indicates that the identified content was fetched successfully, or error.fetch, indicative of a failure to fetch the requested content. Note that even if content is successfully fetched, errors in processing fetched content (for instance, a CCXML document with a syntax error) may result in an error.fetch being thrown.

The fetch request is local to the session that initiated the <fetch>, and is referenced through a unique identifier generated by the CCXML platform. The application may obtain the unique identifier for a fetch request by providing an ECMAScript left-hand-side expression in the fetchid attribute when the fetch is performed. The fetch identifier can also be obtained as a property of the fetch.done event. The application uses the fetch identifier in any CCXML elements that reference fetched content, currently <goto> and <script>.

Fetched content has a lifetime that is limited to that of the document in which it is fetched. Therefore, following a transition to a new CCXML document using <goto>, content fetched in the scope of the current document is no longer accessible. Note that this should not be taken to preclude platform-level optimizations or caching of resources that are fetched multiple times.

The use of <fetch> to obtain content does not compel the application to make use of that content. However, it is wasteful of system resources to fetch resources that are not used. Platforms are responsible for clearing out unused fetch resources, and may impose limits on the resources that can be fetched by a single session.

The "http" URI scheme MUST be supported by CCXML platforms, the "https" protocol should be supported and other URI protocols may be supported.

6.2.7.2: <fetch> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
next true ECMAScript Expression none must evaluate to a valid URL An ECMAScript expression which returns the URI of the resource to be fetched.
type false ECMAScript Expression application/ccxml+xml application/ccxml+xml
text/ecmascript
text/javascript		 An ECMAScript expression which returns a character string that specifies the MIME type of the fetched content. Values defined by the specification are:
application/ccxml+xml
This specifies that the document being fetched must be a CCXML document.
text/ecmascript
This specifies that the fetched content must be ECMA Script.
text/javascript
This specifies that the fetched content must be JAVA Script.
namelist false Var List none List of ECMAScript Variable names A list of zero or more whitespace separated CCXML variable names. These variables must be submitted to the web server, with the same qualification as used in the namelist. When an ECMAscript variable is submitted to the web server, its value must be first converted into a string before being submitted.
If the variable is an ECMAScript Object, the mechanism by which it must be submitted is not currently defined. Instead of submitting ECMAScript Objects directly, the application developer may explicitly submit the properties of an Object. e.g. "date.month date.year".
method false ECMAScript Expression get get
post		 An ECMAScript expression which returns a character string that indicates the HTTP method to use. Values defined by the specification are:
get
This indicates that the "GET" method must be used to fetch the URL.
post
This indicates that the "POST" method must be used while submitting the URL to the web server.
fetchid false ECMAScript Left Hand Side Expression none ECMAScript Variable An ECMAScript left hand side expression evaluating to a previously defined variable. The value of the attribute must receive an internally generated unique string identifier to be associated with the completion event. This identifier can be tested by the fetch completion event handler to distinguish among several outstanding fetch requests.
If this attribute is not specified, the fetch identifier can be acquired from the fetch completion event. Every fetch request must receive a unique fetch identifier, even if the request is for the same URL.
timeout false ECMAScript Expression none An ECMAScript expression which returns a character string in CSS2 [CSS2] format The character string returned must be interpreted as a time interval. This interval begins when the fetch is executed. The fetch must fail if not completed at the end of this interval. A failed fetch must return the error.fetch event.
maxage false ECMAScript Expression none An ECMAScript expression which returns a valid time value for the HTTP 1.1 request [RFC2616] The character string returned must be interpreted as a time interval. This indicates that the document is willing to use content whose age must be no greater than the specified time in seconds (cf. 'max-age' in HTTP 1.1 [RFC2616]). The document is not willing to use stale content, unless maxstale is also provided.
maxstale false ECMAScript Expression none An ECMAScript expression which returns a valid time value for the HTTP 1.1 request [RFC2616] The character string returned must be interpreted as a time interval. This indicates that the document is willing to use content that has exceeded its expiration time (cf. 'max-age' in HTTP 1.1 [RFC2616]). If maxstale is assigned a value, then the document is willing to accept content that has exceeded its expiration time by no more than the specified number of seconds.
enctype false Valid only when the value of the method is "post" ECMAScript Expression application/x-www-form-urlencoded valid media encoding type An ECMAScript expression which returns a character string that indicates the media encoding type of the submitted document (when the value of the method is "post"). Values defined by the specification are:
application/x-www-form-urlencoded
This indicates that the ccxml variables specified in the namelist must be url encoded.

6.2.8: <goto>

6.2.8.1: Overview

<fetch>, in conjunction with <goto>, is used to transfer execution to a different CCXML document in a multi-document CCXML application. The <fetch> tells the platform to find, load, and parse a given CCXML document. After the fetch completes, the CCXML application can then issue a <goto> to execute the now-fetched document.

Below is a small snippet of code from the CCXML application's event handler. We execute a <fetch> operation, and continue on to assign to a state variable, and maybe handle more events. Eventually, the fetch completes, the CCXML platform services the event, and the application performs the <goto>.

<fetch next="'http://www.example.com/control.ccxml'"/>
<--control continues here->
<assign name="state_var" expr="'fetch_wait'"/>
</transition>
<!-- ……… -->
<transition state="fetch_wait" event="fetch.done"/>
<goto fetchid="event$.fetchid"/>
</transition>

A <goto> transfers control to the document obtained through a fetch request, using the platform-generated unique identifier associated with that fetch request. The fetch completion event MUST have arrived before the <goto> is executed, otherwise, an error.semantic event is generated. If the fetched content referenced by the fetch identifier is not a CCXML document, or the fetch identifier is invalid and does not correspond to any fetch request, this also results in an error.semantic event.

When a <goto> is executed, the target document replaces the current document in its session. Event sources associated with this session are inherited by the target document. Execution of the current document terminates.

6.2.8.2: <goto> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
fetchid true ECMAScript Expression none A valid fetch id An ECMAScript expression which returns the fetch identifier of a completed fetch request acquired either in a fetch with the fetchid attribute, or from the fetchid attribute of a fetch.done event.
If the attribute value is invalid, an error.semantic event must be thrown.
6.2.8.3: <fetch> and <goto> Example

The following code shows the use of the <fetch> and <goto> elements along with the fetchid attribute to handle more complex fetching situations:

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0" xmlns="http://www.w3.org/2002/09/ccxml">

  <!-- var to hold the value of the fetch
          identifier that we care about -->
  <var name="myGoodFetchID"/>

  <eventprocessor>
    <transition event="ccxml.loaded">
       <!-- stick the value of the fetch
               identifier in the myGoodFetchID var -->
       <fetch fetchid="myGoodFetchID"
                 next="'http://www.example.com/goodfetch.ccxml'"/>

       <!-- do not bother saving the fetch id's for these,
               we would just ignore them anyway -->
       <fetch next="'http://www.example.com/fakefetch1.ccxml'"/>
       <fetch next="'http://www.example.com/fakefetch2.ccxml'"/>
    </transition>

    <transition event="fetch.done">
       <if cond="myGoodFetchID == event$.fetchid">
          <!-- only matched if we have fetched
                  http://www.example.com/goodfetch.ccxml -->
          <goto fetchid="event$.fetchid"/>
       </if>
    </transition>

    <transition event="error.fetch">
          <!-- Ignore bad fetches in this example -->
    </transition>

  </eventprocessor>
</ccxml>

6.2.9: <createccxml>

6.2.9.1: Overview

<createccxml> is used to create another CCXML session, which begins execution with the document identified by this element. The new CCXML session has no relation to its creator once spawned, and has a wholly separate lifetime and address space.

Execution returns from the <createccxml> element immediately, and the CCXML interpreter can continue on while the new CCXML session is established and loads its initial document. If the new session is successfully established or a failure occurs an event is generated and is delivered to the session that executed the <createccxml> element.

6.2.9.2 <createccxml> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
next true ECMAScript Expression none a valid URL An ECMAScript expression which returns the URI of the resource to be fetched.
namelist false Var List none List of ECMAScript Variable names A list of zero or more whitespace separated CCXML variable names. These variables must be submitted to the web server, with the same qualification as used in the namelist. When an ECMAscript variable is submitted to the web server, its value must be first converted into a string before being submitted.
If the variable is an ECMAScript Object, the mechanism by which it must be submitted is not currently defined. Instead of submitting ECMAScript Objects directly, the application developer may explicitly submit the properties of an Object. e.g. "date.month date.year".
fetchparam false ECMAScript expression 'none' 'none', 'session-id', 'session' Specifies parameters, in addition to those specified via 'namelist' (if present), that will be passed to the web server when fetching the CCXML document for the new session. Three values are legal for this attribute:
  • none - No additional parameters should be passed with the fetch;
  • session-id - The 'session.id' property of the newly created session will be included when fetching the initial document;
  • session - The 'session.id' property and all properties of 'session.values' will be included when fetching the initial document. The evaluation of 'session.values' will occur after it has been populated as per the 'parameter' attribute above, providing developers with a simple means of passing data both to the new CCXML session and to the web server.
parameters false Var List none List of ECMAScript Variable names A list of zero or more whitespace separated CCXML variable names. Each named variable will be created as a property of 'session.values' in the newly created session. For instance, passing a variable named 'foo' with value '123' will result in the 'session.values.foo' property evaluating to '123'; similarly, passing a variable named 'foo.bar' would result in a 'session.values.foo.bar' property. Variable values are passed in string form; the passing of ECMAScript objects is not currently defined.
method false ECMAScript Expression get get
post		 An ECMAScript expression which returns a character string that indicates the HTTP method to use. Values defined by the specification are:
get
This indicates that the "GET" method must be used to fetch the URL.
post
This indicates that the "POST" method must be used while submitting the URL to the web server.
sessionid false ECMAScript Left Hand Side Expression none ECMAScript Variable An ECMAScript left hand side expression evaluating to a previously defined variable. The value of the attribute must receive an internally generated unique string identifier which identifies the newly created session.
timeout false ECMAScript Expression none An ECMAScript expression which returns a character string in CSS2 [CSS2] format The character string returned must be interpreted as a time interval. This time interval must be interpreted by the new CCXML session as the maximum time it may wait for the completion of the fetch for the initial document specified by the next attribute. If the new CCXML session is unable to fetch the initial document within the timeout interval, an error.createccxml event must be thrown.
maxage false ECMAScript Expression none An ECMAScript expression which returns a valid time value for the HTTP 1.1 request [RFC2616] The character string returned must be interpreted as a time interval. This indicates that the document is willing to use content whose age must be no greater than the specified time in seconds (cf. 'max-age' in HTTP 1.1 [RFC2616]). The document is not willing to use stale content, unless maxstale is also provided.
maxstale false ECMAScript Expression none An ECMAScript expression which returns a valid time value for the HTTP 1.1 request [RFC2616] The character string returned must be interpreted as a time interval. This indicates that the document is willing to use content that has exceeded its expiration time (cf. 'max-age' in HTTP 1.1 [RFC2616]). If maxstale is assigned a value, then the document is willing to accept content that has exceeded its expiration time by no more than the specified number of seconds.
enctype false Valid only when the value of the method is "post" ECMAScript Expression application/x-www-form-urlencoded valid media encoding type An ECMAScript expression which returns a character string that indicates the media encoding type of the submitted document (when the value of the method is "post"). Values defined by the specification are:
application/x-www-form-urlencoded
This indicates that the ccxml variables specified in the namelist must be url encoded.

6.2.10: <exit>

6.2.10.1: Overview

<exit> ends execution of the CCXML session. All pending events are discarded, and there is no way to restart CCXML execution.

6.2.10.2 <exit> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
expr false ECMAScript Expression undefined A return ECMAScript expression (e.g. 0 or 'oops!'). If this attribute is omitted, the return value must be ECMAScript undefined. This value must be stored as a property of the exit event.
namelist false Var List none List of ECMAScript Variable names A list of one or more whitespace separated CCXML unqualified variable names to be returned. These variable names and their associated values must be set as properties of the exit event.

A CCXML document executing the <exit> will generate a ccxml.exit event to the parent session. The exiting document will be identified on the exit event by its session ID.

6.2.11: <log>

6.2.11.1: Overview

<log> allows an application to generate a logging or debug message which a developer can use to help in application development or post-execution analysis of application performance. The manner in which the message is displayed or logged is platform-dependent. The usage of label is platform-dependent. The use of <log> SHOULD have no other side-effects on interpretation. <log>is an empty element.

6.2.11.2 <log> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
label false ECMAScript Expression none An ECMAScript expression which returns a character string which must be used, for example, to indicate the purpose of the log.
expr true ECMAScript Expression none An ECMAScript expression evaluating to a string to be logged.

6.3: Events

6.3.1: Overview

CCXML allows operations such as document fetching, startup and shutdown to execute independently. CCXML events that describe these operations are defined below:

6.3.2: fetch.done - Fetch Completion Event

This event is generated when a fetch request completes successfully. It is delivered to the document which issued the request.

The fields of this event are:

Attribute Name Required Type Details
name true string fetch.done
fetchid true string The internally generated unique fetch identifier
uri true string The URI of the resource that was fetched. If the fetch resulted in one or more HTTP redirects (e.g. 302), the value of this property is set to the final target URI.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

6.3.3: error.fetch - Fetch Error Event

This event is generated when a fetch request does not successfully complete. It is delivered to the document which issued the request.

The fields of this event are:

Attribute Name Required Type Details
name true string error.fetch
fetchid true string The internally generated unique fetch identifier
reason true string A string description of the fetch error. Content of this field is platform-specific.
statuscode true int The numeric HTTP status code (eg 404,500 etc) of the failed HTTP request.
uri true string The URI of the resource that was fetched. If the fetch resulted in one or more HTTP redirects (e.g. 302), the value of this property is set to the final target URI.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

6.3.4: ccxml.exit - CCXML Document Exit Event

This event is generated when a CCXML document executes an <exit>, having an unhandled "error.*" or ccxml.kill event. This event is only generated when the session executing the <exit/> has a parent session. This event is sent to the parent session and not the session executing the <exit/>.

The fields of this event are:

Attribute Name Required Type Details
name true string ccxml.exit
sessionid true string The identifier of the exiting session. This must be the same value that was returned to the sessionid attribute of the createccxml which created this session.
expr true string The value of the exit expr attribute. If this attribute is omitted in the exit, the value must be ECMAScript undefined.
false string valued array
values.* false ECMAScript Object Return values from the ccxml session. This would be the values of each of the objects listed in the CCXML exit element's namelist.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.
reason true string Reason that the session ended. Possible values are:
"exit" - Session ended due to a <exit> element
 "error" - Session ended due to an unhandled error event
 "kill" - Session ended due to ccxml.kill* event

6.3.5: ccxml.loaded - CCXML Document Loaded Event

This event is thrown once the document is parsed and ready for execution (document initialization occurs between the fetched and loaded events). The CCXML platform MUST generate this event when the CCXML document is first loaded, both at session startup and after transferring control to a new document with the <goto>. This event would be processed after the platform had executed the document initialization including executing any elements under the <ccxml> and before events such as connection.alerting which may have triggered creation of the session.

The fields of this event are:

Attribute Name Required Type Details
name true string ccxml.loaded
sessionid true string The identifier of the session on which this document is executing.
parent true string The identifier of the session which issued the createccxml to start this document. If this document was started directly by the CCXML platform the value is ECMAScript undefined.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

6.3.6: ccxml.kill - CCXML kill Event

The kill event can be used by the platform to terminate a session without an explicit <exit>. There are two versions of this event: catchable, and non-catchable.

The ccxml.kill event can be caught, typically to perform a clean-up operation at the end of a session. If the event is caught the session will not be terminated unless the an <exit> element is processed. If the event is not caught the session will be terminated and all active connections, conferences and dialogs that are owned by that session will be automatically terminated by the platform.

Unlike other events, the ccxml.kill.unconditional event is the only event that cannot be caught by an application; it will unconditionally terminate the session and all active connections, conferences and dialogs that are owned by that session will be automatically terminated by the platform.

Note that while the normal cause of a ccxml.kill or ccxml.kill.unconditional event being queued to a session is that the platform wishes to terminate the session, it is legal for any event I/O processor to generate a ccxml.kill or ccxml.kill.unconditional event. For instance, it is legal for one CCXML session to unconditionally kill another session by sending a ccxml.kill.unconditional event using <send>. Note, however, that platforms may impose rules that prevent one session from arbitrarily killing another (to prevent malicious applications, for instance).

The fields of this event are:

Attribute Name Required Type Details
name true string ccxml.kill
sessionid true string The identifier of the session.
reason true string A string describing the reason the platform sent the kill event. Content of this field is platform-specific, and is only for informative purposes.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This would be set to ccxml as this is an event generated by the CCXML Session Event processor.

6.3.7: ccxml.created - CCXML Session Create Completion Event

This event is generated when a <createccxml> request completes successfully. It is delivered to the document which issued the request and indicates that the new session has retrieved the specified initial CCXML document, parsed and has begun execution of it by sending the ccxml.loaded event to the new session.

The fields of this event are:

Attribute Name Required Type Details
name true string ccxml.created
sessionid true string The identifier of the newly created CCXML session. This must be the same identifier as was returned on the sessionid attribute of the createccxml request that created the session.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

6.3.8: error.createccxml - CCXML Session Create Failed Event

This event is generated when a <createccxml> request fails to complete. It is delivered to the document which issued the request and indicates that the new session has not been created.

The fields of this event are:

Attribute Name Required Type Details
name true string error.createccxml
sessionid true string The identifier of the failing CCXML session. This is the same identifier as was returned on the sessionid attribute of the createccxml request that created the session.
reason reason string A string description of the error encountered. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

6.3.9: error.unsupported - CCXML Unsupported Operation

This event is generated when an operation that is not supported by the platform is executed.

The fields of this event are:

Attribute Name Required Type Details
name true string error.unsupported
reason true string A string description of the error encountered. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

7: Dialogs

7.1: Overview

CCXML does not provide any mechanism for interacting with callers but relies on separate dialog environments such as VoiceXML [VOICEXML]. Whenever interaction with a caller is required, a CCXML session can create a separate dialog to perform that interaction. After the dialog interaction is complete, an asynchronous event is sent to the CCXML session which can use any results returned by the dialog environment to decide what should happen next.

Dialogs initiated by CCXML sessions are not tied to any single dialog language or technology. Any dialog system which fulfils CCXML's requirements MAY be used for interaction with the caller. Examples of dialog systems include VoiceXML, SALT [ SALT ], traditional IVR, 3GPP MRF as well as simple media handling systems for fax, media playback and recording, DTMF detection, answer-machine detectors, etc. A CCXML platform MAY support interaction with several dialog systems with the selection of the particular technology being based on the MIME type specified when the dialog is initiated.

All CCXML elements that manipulate dialogs are asynchronous with control returning immediately to the CCXML session after the operation is initiated. The CCXML session is notified when the dialog operation successfully completes, or fails, by an asynchronous event.

A CCXML program initiates a dialog using the <dialogstart> element. Execution of this element connects a dialog environment to a connection and instructs it to start interacting with the caller. For some dialog environments it may take some time to initialize the dialog environment and thus the use of the <dialogstart> element alone may cause the caller to hear silence, or "dead air". To avoid this situation CCXML provides an ability to ready a dialog environment prior to connecting and starting it, this is done using the <dialogprepare> element. Any dialog that has been either started with <dialogstart>, or prepared with <dialogprepare> can be terminated using the <dialogterminate> element. CCXML implementations MUST support the <dialogprepare>, <dialogstart>, and <dialogterminate> elements though the exact behaviour may vary depending on the dialog environments supported.

The following examples illustrate the valid use patterns for these three elements. Firstly the normal case of preparing a dialog, starting it, then optionally terminating it before normal completion. This example illustrates the use of <dialogprepare> to ready a dialog while the call is left in alerting state. When the alerting notification arrives the script executes a <dialogprepare> to prepare a dialog and associate it with the connection. When the dialog is prepared the script executes an <accept> to connect the call and then when the connection transitions to connected state, a <dialogstart> element is used to execute the previously prepared dialog.

<transition event="connection.alerting">
    <dialogprepare src="..." connectionid="event$.connectionid"/>
</transition>
<transition event="dialog.prepared">
    <accept connectionid="session.dialogs[event$.dialogid].connectionid"/>
</transition>

<transition event="connection.connected" >
    <dialogstart prepareddialogid="event$.connection.dialogid"
                    connectionid="event$.connectionid"/>
</transition>

(optionally)
<transition event="???">
    <dialogterminate dialogid="..." />
</transition>

The next example shows a single step dialog invocation without dialog preparation. In this case a connection in alerting state is accepted and, when the transition to connected state occurs, a <dialogstart> element is used to start the dialog.

<transition event="connection.alerting">
    <accept connectionid="event$.connectionid"/>
</transition>

<transition event="connection.connected">
    <dialogstart src="..." connectionid="connectionid"/>
</transition>

(optionally)
<transition event="???">
    <dialogterminate dialogid="..." />
</transition>

This next example shows the preparation of a dialog for an outbound call:

<transition event="...">
    <dialogprepare src="..."> <!-- no connectionid -->
</transition>
<transition event="dialog.prepared" >
    <createcall dest="..." joinid="event$.dialogid"> <!-- use joinid -->
</transition>
<transition event="connection.connected">
    <dialogstart prepareddialogid="event$.connection.dialogid"
                 connectionid="event$.connectionid"/>
</transition>

The final example shows the case where a dialog which has been previously prepared is cancelled before a <dialogstart> has been issued. A dialog may be terminated when it is in the prepared state or while it is being prepared such as might be the case if the caller hangs up at some arbitrary point. In this case the <dialogterminate> may be executed before or after the dialog.prepared event is processed.

<transition event="connection.connected">>
    <dialogprepare src="..." connectionid="event$.connectionid"/>
</transition>
<transition event="connection.disconnected" >
    <dialogterminate dialogid="event$.connection.dialogid" />
</transition>

It is possible for Dialogs to exist that are not joined to a Connection or a Conference. For example, this could be due to a Connection disconnecting, or due to the application performing an <unjoin/> operation.

7.2: Elements

7.2.1: <dialogprepare>

7.2.1.1: Overview

<dialogprepare> is used to get an appropriate dialog handler ready to process, it is used as the precursor to a <dialogstart> request. The element includes a URI reference to the initial document for the dialog. The new dialog is prepared on a separate logical execution thread (this MAY be a thread, process, or system depending upon platform implementation) and does not block the processing of further events by the CCXML session. The use of the <dialogprepare> element is entirely optional, applications may choose to simply use <dialogstart> without prior preparation.

Optionally the new dialog may be associated with a connection by specifying the connectionid attribute, or with a conference by specifying the conferenceid attribute.

When preparation of the dialog completes successfully a dialog.prepared event MUST be posted to the event queue of the CCXML session. If however the dialog cannot be prepared for any reason, an error.dialog.notprepared event MUST be posted. However should the dialog be terminated using <dialogterminate> while it is being prepared the platform MUST only post a dialog.exit event.

CCXML implementations MUST support dialog preparation though the processing carried out as part of a <dialogprepare> request is dialog manager specific. In the case of a dialog manager that does not support preparation, the CCXML implementation MUST as a minimum, note the values provided in the <dialogprepare> attributes, create a Dialog object, and return a new unique value to the location defined by the dialogid attribute and throw a dialog.prepared event.

The CCXML session selects what it believes to be the appropriate dialog manager based on the MIME type specified by the type attribute without retrieving the resource specified by the src URI. If, when the dialog manager retrieves the content, it finds the MIME type, as specified by the HTTP headers, differs from that specifed by the type attribute, it MUST raise an error.dialog.notprepared event with a reason indicating the type mismatch. The dialog manager MUST NOT ignore the type mismatch or render the resource as a different type based on the HTTP headers or on inspection of the document data. Refer to the W3C guidelines for client handling of MIME types [MIME-TAG] for further information.

7.2.1.2: <dialogprepare> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
src true ECMAScript Expression none a Dialog URL An ECMAScript expression which returns a character string identifying the URI of the dialog document that the dialog interpreter must prepare.
type false ECMAScript Expression application/voicexml+xml a Valid MIME Type An ECMAScript expression which returns a character string that specifies the MIME type of the document, and as a result determines which dialog manager environment must actually be used. Values defined by the specification are:
application/voicexml+xml
This MIME type would request a VoiceXML interpreter instance.
audio/wav
This MIME type would request a dialog manager that merely plays wave files.
namelist false Var List none List of ECMAScript Variable names A list of one or more whitespace separated CCXML variable names. These variables must be submitted to the web server, with the same qualification as used in the namelist. When an ECMAscript variable is submitted to the web server, its value must be first converted into a string before being submitted.
If the variable is an ECMAScript Object, the mechanism by which it is submitted is not currently defined. Instead of submitting ECMAScript Objects directly, the application developer may explicitly submit the properties of an Object. e.g. "date.month date.year".
parameters false Var List none List of ECMAScript Variable names A list of one or more whitespace separated CCXML variable names. These variables are sent to the dialog environment as a list of name/value pairs. Names are sent exactly as they are specified; values are formed by converting the referenced ECMAScript variable to string form (which is undefined for objects). The dialog environment determines how passed parameters will be handled
dialogid false ECMAScript Left Hand Side Expression none ECMAScript Variable An ECMAScript left hand side expression evaluating to a previously defined variable. The value of the attribute must receive a dialog identifier value for the launched dialog interpreter instance.
connectionid false Must not be used with conferenceid ECMAScript Expression none Connection IDs An Optional ECMAScript expression which returns the identifier of a connection. The specified connection must be associated with the dialog being prepared. If the attribute value is invalid an error.semantic event must be thrown.
conferenceid false Must not be used with connectionid ECMAScript Expression none Conference IDs An Optional ECMAScript expression which returns the identifier of a conference bridge. A connection must be allocated for the dialog being prepared. If the attribute value is invalid an error.semantic event must be thrown.
mediadirection false ECMAScript Expression both both dialogtransmit dialogreceive An ECMAScript expression that defines the direction of the media flow between the Dialog and the Connection or Conference. The following values must be used:
both
Specifies a full duplex connection where the media flows in both directions.
dialogtransmit
The dialog transmits media to the Connection or Conference but does not receive any media streams.
dialogreceive
The dialog receives media from the Connection or Conference but does not transmit any media streams.
The bridge does not take place until a subsequent dialogstart is executed, but this attribute may be provided as guidance to the dialog environment for preparation. If no value is specified, the dialog environment must make no assumptions as to the bridging type. For more information about connections and bridges, refer to Section 10 .
maxage false ECMAScript Expression none An ECMAScript expression which returns a character string in CSS2 [CSS2] format The character string returned must be interpreted as a time interval. This indicates that the document is willing to use content whose age is no greater than the specified time in seconds (cf. 'max-age' in HTTP 1.1 [RFC2616]). The document is not willing to use stale content, unless maxstale is also provided.
maxstale false ECMAScript Expression none An ECMAScript expression which returns a character string in CSS2 [CSS2] format The character string returned must be interpreted as a time interval. This indicates that the document is willing to use content that has exceeded its expiration time (cf. 'max-age' in HTTP 1.1 [RFC2616]). If maxstale is assigned a value, then the document is willing to accept content that has exceeded its expiration time by no more than the specified number of seconds.
enctype false Valid only when the value of the method is "post" ECMAScript Expression application/x-www-form-urlencoded valid media encoding type An ECMAScript expression which returns a character string that indicates the media encoding type of the submitted document (when the value of the method is "post"). Values defined by the specification are:
application/x-www-form-urlencoded
This indicates that the ccxml variables specified in the namelist must be url encoded.
method false ECMAScript Expression get get post An ECMAScript expression which returns a character string that indicates the HTTP method to use. Values defined by the specification are:
get
This indicates that the "GET" method must be used by the dialog manager.
post
This indicates that the "POST" method must be used by the dialog manager.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform for implementing the dialog operation. Note: The meaning of these hints is specific to the implementing platform and dialog type.

7.2.2: <dialogstart>

7.2.2.1: Overview

<dialogstart> is used to start a dialog and associate the dialog with a connection or conference. (See Section 10 for a discussion of connections and bridges). The element includes either a URI reference to the initial document for the dialog or the identity of a previously prepared dialog. The dialog executes on a separate logical execution thread (this MAY be a thread, process, or system depending upon platform implementation) and does not block the processing of further events by the CCXML session.

If the dialog cannot be started for any reason, an error.dialog.notstarted event MUST be posted to the event queue of the CCXML session that processed the <dialogstart> request otherwise, a dialog.started event MUST be posted to indicate that the dialog has started successfully. When the dialog completes, a dialog.exit event MUST be posted.

If the connectionid attribute of <dialogstart> is specified, and if the dialog language allows access to telephony variables such as ANI, DNIS and UUI, values of these variables will be propagated from the specified connection to the dialog application.

If the prepareddialogid attribute is specified and any attribute values conflict with the values specified in the <dialogprepare> element this MUST result in the throwing of an error.dialog.notstarted event.

Dialogs MAY only be started on connections while they are in the ALERTING or CONNECTED states. For connections in the ALERTING state media MAY not be sent or received by the connection making the bridge effectively full-duplex, half-duplex or silent depending on the underlying telephony environment and the restrictions imposed by it.

The CCXML session selects the appropriate dialog manager based on the MIME type specified by the type attribute without retrieving the resource specified by the src URI. If, when the dialog manager retrieves the content, it finds the MIME type, as specified by the HTTP headers, differs from that specifed by the type attribute, it MUST raise an error.dialog.notstarted event with a reason indicating the type mismatch. The dialog manager MUST NOT ignore the type mismatch or render the resource as a different type based on the HTTP headers or on inspection of the document data. Refer to the W3C guidelines for client handling of MIME types [MIME-TAG] for further information.

7.2.2.2: <dialogstart> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
src false This attribute must not be specified in conjunction with the prepareddialogid attribute. ECMAScript Expression none a valid Dialog URL An ECMAScript expression which returns a character string identifying the URI of the dialog document that the dialog interpreter must load and begin execution upon startup.
prepareddialogid false This attribute must not be specified in conjunction with the src, type or namelist attributes. ECMAScript Expression none a valid dialogid An ECMAScript expression which returns a dialog identifier of a dialog previously prepared by the execution of a dialogprepare element.
type false This attribute must not be specified in conjunction with the prepareddialogid attribute. ECMAScript Expression application/voicexml+xml a Valid MIME Type An ECMAScript expression which returns a character string that specifies the MIME type of the document, and as a result determines which dialog manager environment must actually be used. Values defined by the specification are:
application/voicexml+xml
This MIME type would request a VoiceXML interpreter instance.
audio/wav
This MIME type would request a dialog manager that merely plays wave files.
namelist false This attribute must not be specified in conjunction with the prepareddialogid attribute. Var List none List of ECMAScript Variable names A list of one or more whitespace separated CCXML variable names. These variables must be submitted to the web server, with the same qualification as used in the namelist. When an ECMAscript variable is submitted to the web server, its value must be first converted into a string before being submitted.
If the variable is an ECMAScript Object, the mechanism by which it is submitted is not currently defined. Instead of submitting ECMAScript Objects directly, the application developer may explicitly submit the properties of an Object. e.g. "date.month date.year".
parameters false This attribute must not be specified in conjunction with the prepareddialogid attribute. Var List none List of ECMAScript Variable names A list of one or more whitespace separated CCXML variable names. These variables are sent to the dialog environment as a list of name/value pairs. Names are sent exactly as they are specified; values are formed by converting the referenced ECMAScript variable to string form (which is undefined for objects). The dialog environment determines how passed parameters will be handled
dialogid false ECMAScript Left Hand Side Expression none ECMAScript Variable An ECMAScript left hand side expression evaluating to a previously defined variable. The value of the attribute must receive a dialog identifier value for the launched dialog interpreter instance. This identifier may be used on future invocations of dialogterminate.
connectionid false Must not be used with conferenceid. ECMAScript Expression none Connection IDs An Optional ECMAScript expression which returns the identifier of a connection. The specified connection must be associated with the dialog being prepared. If both the connectionid and the conferenceid are omitted and the dialog was previously prepared using a dialogprepare element with a connectionid or conferenceid specified, the interpreter must use the id as specified on the dialogprepare element.
If neither the connectionid or conferenceid is specified and the dialog had not previously been prepared, the interpreter must use the id indicated in the current event being processed. For more information about connections and bridges, refer to Section 10 . If both connectionid and conferenceid are specified, an error.fetch event must be thrown. If the attribute value is invalid an error.semantic event must be thrown.
conferenceid false Must not be used with connectionid. ECMAScript Expression none Conference IDs An Optional ECMAScript expression which returns the identifier of a conference bridge. If both the connectionid and the conferenceid are omitted and the dialog was previously prepared using a dialogprepare element with a connectionid or conferenceid specified, the interpreter must use the id as specified on the dialogprepare element.
If neither the connectionid or conferenceid is specified and the dialog had not previously been prepared, the interpreter must use the id indicated in the current event being processed. For more information about connections and bridges, refer to Section 10 . If both connectionid and conferenceid are specified, an error.fetch event must be thrown. If the attribute value is invalid an error.semantic event must be thrown.
mediadirection false If used in conjunction with prepareddialogid , the bridge type must match that used on the previous dialogprepare element. ECMAScript Expression both both dialogtransmit dialogreceive An ECMAScript expression that defines the direction of the media flow between the Dialog and the Connection or Conference. The following values must be used:
both
Specifies a full duplex connection where the media flows in both directions.
dialogtransmit
The dialog transmits media to the Connection or Conference but does not receive any media streams.
dialogreceive
The dialog receives media from the Connection or Conference but does not transmit any media streams.
If both the mediadirection and the prepareddialogid are specified and the bridge type specified by the mediadirection attribute does not match that used on the previous dialogprepare element, an error.dialog.notstarted event must be raised. If no value for the mediadirection attribute was specified on the previous dialogprepare element, any mediadirection type option may be specified.
maxage false ECMAScript Expression none An ECMAScript expression which returns a character string in CSS2 [CSS2] format The character string returned must be interpreted as a time interval. This indicates that the document is willing to use content whose age is no greater than the specified time in seconds (cf. 'max-age' in HTTP 1.1 [RFC2616]). The document is not willing to use stale content, unless maxstale is also provided.
maxstale false ECMAScript Expression none An ECMAScript expression which returns a character string in CSS2 [CSS2] format The character string returned must be interpreted as a time interval. This indicates that the document is willing to use content that has exceeded its expiration time (cf. 'max-age' in HTTP 1.1 [RFC2616]). If maxstale is assigned a value, then the document is willing to accept content that has exceeded its expiration time by no more than the specified number of seconds.
enctype false Valid only when the value of the method is "post" ECMAScript Expression application/x-www-form-urlencoded valid media encoding type An ECMAScript expression which returns a character string that indicates the media encoding type of the submitted document (when the value of the method is "post"). Values defined by the specification are:
application/x-www-form-urlencoded
This indicates that the ccxml variables specified in the namelist must be url encoded.
method false ECMAScript Expression get get post An ECMAScript expression which returns a character string that indicates the HTTP method to use. Values defined by the specification are:
get
This indicates that the "GET" method must be used by the dialog manager.
post
This indicates that the "POST" method must be used by the dialog manager.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform for implementing the dialog operation. Note: The meaning of these hints is specific to the implementing platform and dialog type.

7.2.3: <dialogterminate>

7.2.3.1: Overview

A CCXML document may decide that it wants to terminate a currently executing dialog, to throw away a previously prepared dialog, or to terminate the preparation of a dialog. This is accomplished using the <dialogterminate> element. When the CCXML interpreter encounters a <dialogterminate> element, it MUST send a terminate request to the specified dialog.

A dialog terminated due to the processing of a <dialogterminate> element MAY still return data to the CCXML application using a dialog.exit event if the value of the immediate attribute is false or unspecified. The details of the data returned are dialog environment specific.

If the immediate attribute is set to true the dialog MUST NOT return data to the CCXML application and the CCXML interpreter MUST post a dialog.exit event immediately.

The platform MUST implicitly tear down any existing bridges to the dialog and send a conference.unjoined to the CCXML document once the media paths have been freed.

7.2.3.2: <dialogterminate> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
dialogid true ECMAScript Expression none valid dialog ID An ECMAScript expression which returns a character string identifying the dialog. This dialogid was returned in the variable identified by the dialogid attribute of previous dialogstart or dialogprepare request or the value in a dialog.started or dialog.prepared event.
immediate false ECMAScript Expression false true false An ECMAScript expression which returns a character string, that identifies the termination style of the dialog. Valid values are:
true
This indicates that the dialog must be terminated immediately.
false
This indicates that the dialog must be terminated in a normal fashion.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform for implementing the dialog operation. Note: The meaning of these hints is specific to the implementing platform and dialog type.

7.3: Events

7.3.1: Overview

The majority of communication between CCXML interpreter sessions and dialogs is by way of events. Dialog environments post events to the CCXML interpreter event queue and a CCXML application MAY send an event to a dialog. How this is handled on the dialog side is dialog manager and CCXML interpreter dependent. On the CCXML side it is done by using <send> and passing in the dialogid that was received as a result of processing a <dialogstart> or a <dialogprepare>.

The following are the CCXML events related to dialogs:

7.3.2: dialog.started

The dialog.started event MUST be thrown when a dialog is successfully started. The fields available in the event are:

Attribute Name Required Type Details
name true string dialog.started
dialogid true string The ID of the dialog.
dialog true ECMAScript Object An ECMAScript object reference to the dialog object identified by the dialogid property of this event.
connectionid false string The identifier of the connection to which the dialog connection is bridged (usually the connectionid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a conference the value must be undefined.
conferenceid false string The identifier of the conference to which the dialog connection is bridged (usually the conferenceid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a connection the value must be undefined.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the DIALOG Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to dialog as this is an event generated by the Dialog Session Event processor.

7.3.3: dialog.exit

The dialog.exit event MUST be thrown when a dialog terminates either normally or following a <dialogterminate> request. Termination of a dialog always results in a single dialog.exit event; if normal dialog termination and a <dialogterminate> occur simultaneously, the dialog.exit event will reflect the condition that the platform processes first. For example, if a dialog.exit event is thrown based on normal termination, and the platform subsequently processes a <dialogterminate> request made by the application, it will discard the <dialogterminate> and will not generate a second dialog.exit event. The fields available in the event are:

Attribute Name Required Type Details
name true string dialog.exit
dialogid true string The ID of the dialog.
dialog true ECMAScript Object An ECMAScript object reference to the dialog object identified by the dialogid property of this event.
connectionid false string The identifier of the connection to which the dialog connection is bridged (usually the connectionid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a conference the value must be undefined.
conferenceid false string The identifier of the conference to which the dialog connection is bridged (usually the conferenceid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a connection the value must be undefined.
false string valued array
values.* false ECMAScript Object Return values from the dialog. In VoiceXML this would be the values of each of the objects listed in the exit element's namelist.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the DIALOG Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to dialog as this is an event generated by the Dialog Session Event processor.

7.3.4: dialog.disconnect

The dialog.disconnect event represents a request by a dialog to disconnect the Connection or Conference with which it is presently associated. The actual handling of this event is determined entirely by the running CCXML application, which may disconnect the associated Connection, detach the dialog from the Connection/Conference, or elect to ignore the dialog.disconnect event altogether. The fields available in the event are:

Attribute Name Required Type Details
name true string dialog.disconnect
dialogid true string The ID of the dialog.
dialog true ECMAScript Object An ECMAScript object reference to the dialog object identified by the dialogid property of this event.
connectionid false string The identifier of the connection to which the dialog connection is bridged (usually the connectionid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a conference the value must be undefined.
conferenceid false string The identifier of the conference to which the dialog connection is bridged (usually the conferenceid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a connection the value must be undefined.
false string valued array
values.* false ECMAScript Object Return values from the dialog. In VoiceXML this would be the values of each of the objects listed in the dialog element's namelist.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the DIALOG Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to dialog as this is an event generated by the Dialog Session Event processor.

7.3.5: dialog.transfer

The dialog.transfer event represents a request by a dialog to transfer the Connection or Conference with which it is presently associated to a new destination. The actual handling of this event is determined entirely by the running CCXML application, which may perform a <redirect> on the associated Connection, use <createcall> and <join> to establish a bridged transfer, handle the transfer request in some other way, or elect to ignore the dialog.transfer event altogether. The properties of the dialog.transfer event reflect the information dialog environments are most likely to supply when requesting a transfer, but are up to the running CCXML application to interpret. The fields available in the event are:

Attribute Name Required Type Details
name true string dialog.transfer
dialogid true string The ID of the dialog.
dialog true ECMAScript Object An ECMAScript object reference to the dialog object identified by the dialogid property of this event.
connectionid false string The identifier of the connection to which the dialog connection is bridged (usually the connectionid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a conference the value must be undefined.
conferenceid false string The identifier of the conference to which the dialog connection is bridged (usually the conferenceid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a connection the value must be undefined.
type true string A string value specifying the transfer type.
URI true a valid URI A URI describing the destination to which this call must be transferred. The format of this information is protocol and platform specific but might consist of a telephone URI RFC2806 or a SIP URI RFC3261 .
false string valued array
values.* false ECMAScript Object Properties returned from the dialog processor relating to the dialogs transfer request.
maxtime true string A string in CSS2 format that specifies the maximum amount of time the transfer may stay connected. If the amount of time is unlimited the value must be 0s.
connecttimeout true string A string in CSS2 format that specifies the maximum amount of time to spend while attempting to connect the call.
aai false string A string of application-to-application information to be passed to the destination party when establishing the transfer.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the DIALOG Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to dialog as this is an event generated by the Dialog Session Event processor.

7.3.6: dialog.terminatetransfer

The dialog.terminatetransfer event represents a request by a dialog to terminate an ongoing transfer for example due to a "hotword" recognition. The actual handling of this event is determined entirely by the running CCXML application, which may terminate the outgoing call leg and return the media stream of the original call to the dialog using the <join> element, handle the terminate transfer request in some other way, or elect to ignore the dialog.terminatetransfer event altogether. The properties of the dialog.terminatetransfer event reflect the information dialog environments are most likely to supply when terminating a transfer, but are up to the running CCXML application to interpret. The fields available in the event are:

Attribute Name Required Type Details
name true string dialog.terminatetransfer
dialogid true string The ID of the dialog.
dialog true ECMAScript Object An ECMAScript object reference to the dialog object identified by the dialogid property of this event.
connectionid false string The identifier of the connection to which the dialog connection is bridged (usually the connectionid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a conference the value must be undefined.
conferenceid false string The identifier of the conference to which the dialog connection is bridged (usually the conferenceid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a connection the value must be undefined.
reason true string A description of the reason the dialog wants the transfer to be terminated. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the DIALOG Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to dialog as this is an event generated by the Dialog Session Event processor.

7.3.7: error.dialog

The error.dialog event MUST be thrown when there was an unspecified error with the dialog (for example the dialog server crashed). The fields available in the event are:

The platform MUST implicitly tear down any existing bridges to the dialog and send a conference.unjoined to the CCXML document once the media paths have been freed.

Attribute Name Required Type Details
name true string error.dialog
dialogid true string The ID of the dialog.
dialog true ECMAScript Object An ECMAScript object reference to the dialog object identified by the dialogid property of this event.
connectionid false string The identifier of the connection to which the dialog was connected to (usually the connectionid that was specified in the dialogstart or dialogprepare).
If the dialog was being connected to a conference the value must be undefined.
conferenceid false string The identifier of the conference to which the dialog was connected to (usually the conferenceid that was specified in the dialogstart or dialogprepare).
If the dialog was being connected to a connection the value must be undefined.
reason true string A description of the reason the dialog had an error. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the DIALOG Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to dialog as this is an event generated by the Dialog Session Event processor.

7.3.8: error.dialog.notstarted

The error.dialog.notstarted event MUST be thrown when the processing of a <dialogstart> element fails because the dialog cannot be started for some reason. The fields available in the event are:

Attribute Name Required Type Details
name true string error.dialog.notstarted
dialogid true string The ID of the dialog.
dialog true ECMAScript Object An ECMAScript object reference to the dialog object identified by the dialogid property of this event.
connectionid false string The identifier of the connection to which the dialog connection could not be started (usually the connectionid that was specified in the dialogstart or dialogprepare).
If the dialog was being connected to a conference the value must be undefined.
conferenceid false string The identifier of the conference to which the dialog connection could not be started (usually the conferenceid that was specified in the dialogstart or dialogprepare).
If the dialog was being connected to a connection the value must be undefined.
reason true string A description of the reason the dialog could not be started. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the DIALOG Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to dialog as this is an event generated by the Dialog Session Event processor.

7.3.9: blank

This section is intentionally left blank.

7.3.10: dialog.user.*

The dialog.user.* (where * is the name of the user defined event) MUST be thrown when a dialog sends a user/application-defined event. The fields available in the event are:

Attribute Name Required Type Details
name true string dialog.user.* (where * is the name of the user defined event)
dialogid true string The ID of the dialog.
dialog true ECMAScript Object An ECMAScript object reference to the dialog object identified by the dialogid property of this event.
connectionid false string The identifier of the connection to which the dialog connection is bridged (usually the connectionid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a conference the value must be undefined.
conferenceid false string The identifier of the conference to which the dialog connection is bridged (usually the conferenceid that was specified in the dialogstart or dialogprepare).
If the dialog is bridged to a connection the value must be undefined.
false string valued array
values.* false ECMAScript Object Return values from the dialog for the user event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the DIALOG Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to dialog as this is an event generated by the Dialog Session Event processor.

7.3.11: dialog.prepared

The dialog.prepared event MUST be thrown when a dialog has been successfully prepared following the execution of a <dialogprepare> element. The fields available in the event are:

Attribute Name Required Type Details
name true string dialog.prepared
dialogid true string The ID of the dialog.
dialog true ECMAScript Object An ECMAScript object reference to the dialog object identified by the dialogid property of this event.
connectionid false string The identifier of the connection to which the dialog connection is prepared (usually the connectionid that was specified in the dialogprepare).
If the dialog was prepared without a connection, the value must be undefined.
conferenceid false string The identifier of the conference to which the dialog connection is prepared (usually the conferenceid that was specified in the dialogprepare).
If the dialog was prepared without a conferece, the value must be undefined.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the DIALOG Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to dialog as this is an event generated by the Dialog Session Event processor.

7.3.12: error.dialog.notprepared

The error.dialog.notprepared event MUST be thrown when the processing of a <dialogprepare> element fails. The fields available in the event are:

Attribute Name Required Type Details
name true string error.dialog.notprepared
dialogid true string The ID of the dialog.
dialog true ECMAScript Object An ECMAScript object reference to the dialog object identified by the dialogid property of this event.
reason true string A description of the reason the dialog could not be prepared. Content of this field is platform-specific.
connectionid false string The identifier of the connection to which the dialog connection was attempting to be prepared (usually the connectionid that was specified in the dialogprepare).
If the dialog was prepared without a connection, the value must be undefined.
conferenceid false string The identifier of the conference to which the dialog connection was attempting to be prepared (usually the conferenceid that was specified in the dialogprepare).
If the dialog was prepared without a conferece, the value must be undefined.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the DIALOG Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to dialog as this is an event generated by the Dialog Session Event processor.

7.4: Dialog Object Properties

An instance of the Dialog object is associated with each dialog created by <dialogstart> or <dialogprepare> and referenced in the session.dialogs associative array.

The Dialog Object is an extension of the Media Endpoint Object as defined in section 10.4.3.

Dialog Properties Required Definitions
dialogid true This property is the ECMAScript string value of the Dialog Identifier, which uniquely identifies each instance of the Dialog class.
connectionid false Identifies the connection that is driving a media stream to the dialog. If the media stream to the dialog is not being driven by a connection, then this property must be undefined.
Note: connectionid and conferenceid properties are mutually exclusive.
conferenceid false Identifies the conference that is driving a media stream to the dialog. If the media stream to the dialog is not being driven by a conference, then this property must be undefined.
Note: connectionid and conferenceid properties are mutually exclusive.
type true An ECMAScript string value that specifies the MIME type of the document that loaded the dialog
src true An ECMAScript string value identifying the initial URI of the dialog document.
true
input true The identifier (connectiondid/conferenceid/dialogid) of the single media endpoint (connection, dialog or conference) providing the input stream to this media endpoint or undefined if there is no input stream. This property MUST be updated each time a <join>/<unjoin> or any other media operation changes the media source to this media endpoint.
If the media endpoint does not have a media source the value MUST be ECMAScript undefined.
For example the creation of a half duplex bridge
<join id1="con1" id2="con2" duplex="half" />
Result
session.connections[con1].input = "con2"
session.connections[con2].input = undefined
outputs true An array containing the identifiers of all media endpoints to which the output stream of this media endpoint is sent. If the media endpoint does not have any media destinations the length of the array MUST be 0.
For example the creation of a half duplex bridge
<join id1="con1" id2="con2" duplex="half" />
Result
session.connections[con1].outputs.length = 0
session.connections[con2].outputs.length = 1

7.5: Dialog class

All dialog objects MUST be initiated via the Dialog class. The Dialog class currently has no defined properties.

8: Variables and Expressions

8.1: Overview

CCXML expressions are valid ECMAScript [ ECMASCRIPT ] expressions, assignable to variables with valid ECMAScript names. For further details please see section 3.4.

Many CCXML elements have multiple attributes that are ECMAScript expressions. The CCXML language does not guarantee a specific order of evaluation of these expressions. Also, some elements such as <transition> may or may not evaluate all attributes. Hence, attributes containing expressions with side-effects can lead to implementation specific behavior. It is RECOMMENDED that applications do not use ECMAScript expressions with side-effects in attributes.

If the implementation is unable to evaluate an ECMAScript expression it MUST throw an error.semantic event.

8.2: Elements

8.2.1: <assign> and <var>

8.2.1.1: Overview

Variables are declared using the <var> element and are initialized with the results of evaluating the OPTIONAL expr attribute as an ECMAScript expression. If the expr attribute is not present in the <var> declaration, the variable is initialized to ECMAScript undefined. The values of variables MAY be subsequently changed with <assign>.

Variables are declared explicitly by <var> :

<var name="sessionid" />
<var name="currentstate" expr="'initial'" />

Variables declared without an explicit initial value MUST be initialized to the ECMAScript value undefined by the implementation.

It is illegal to make an assignment to a variable that has not been explicitly declared using <var> or a var statement within a <script>. Attempting to assign to an undeclared variable causes an error.semantic event to be thrown. Please see Section 9.5 for a detailed description of error events.

Note that when an ECMAScript object, e.g. "obj", has been properly initialized then its properties, for instance "obj.prop1", can be assigned without explicit declaration. An attempt to declare ECMAScript object properties such as "obj.prop1" results in an error.semantic event being thrown.

CCXML uses an ECMAScript scope chain (please see section 3.4 ) to allow variables to be declared at different levels of hierarchy in an application. For instance, a variable declared at ccxml (document) scope can be referenced anywhere within that document, whereas a local variable declared in a <transition> is only available within that element.

The implementation MUST define four scopes - session, application, ccxml and transition. The relationship between these scopes is shown below.

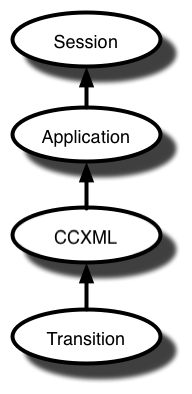

Variable Scoping
Variable Scoping

A description of the scopes is provided in the table below.

Scope Name Details
session This scope is opened by CCXML implementation before interpretation of a new session starts and exists until the session exits. Variables within this scope are provided by CCXML implementation and are read-only. Any attempt to modify the session object or it's properties by the application MUST result in an error.semantic event to be thrown by the platform.
application This scope is opened by CCXML implementation before interpretation of a new session starts and exists until the session exits. Variables within this scope cannot be explicitly declared using <var> element or var statement within a <script>. They can be created only by assigning a value to a property of the application object (application.varname = value;). Unlike in the session scope, variables in this scope can be modified by CCXML programs. They are visible to documents within the CCXML application.
ccxml This scope is opened by CCXML implementation for each CCXML document when it is loaded and exists while the document is loaded. Variables within this scope are declared with <var> and <script> elements that are children of <ccxml>. They are initialized in document order when the document is loaded. They exist while the document is loaded. They are visible only within that document. Variables in this scope can be also created without an explicit declaration by assigning a value to a property of the ccxml object (ccxml.varname = value;).
transition Each <transition> element has a scope that exists while the implementation is processing the executable content within that <transition>, and which is visible to the elements of that <transition>. Variables with transition scope are declared by <var> and <script> child elements of <transition>. The child <var> and <script> elements of <transition> are initialized in document order when the executable content is executed. Variables in this scope can be also created without an explicit declaration by assigning a value to a property of the transition object (transition.varname = value;).

The implementation MUST instantiate a variable within the scope of the closest containing scope element. The fully-qualified name of a variable is the name of the variable's scope object prepended with a dot to the name of the variable. The implementation MUST allow reference to variables by their fully qualified names. The implementation MUST allow reference to variables without requiring use of their fully qualified names. In the case of like-named variables declared in different scopes, the implementation MUST reference the variable in the closest containing scope, unless the fully-qualified variable name is used.

The implementation MUST resolve variables by searching the enclosing transition scope first (if applicable) followed by the ccxml scope, the application scope and then the session scope, unless the variable reference is qualified with a scope prefix.

If the variable includes a scope prefix, the implementation MUST resolve the variable by searching the named scope.

If a variable is declared more than once, the implementation MUST evaluate the expr attribute of each subsequent declaration, and assign the result to the variable declared by the first <var>.

Variables can be assigned new values using <assign> :

        <assign name="currentstate" expr="'cleanup'" />

The implementation MUST evaluate the ECMAScript expression contained in the expr attribute of <assign>, and assign the results to the variable referenced in the name attribute.

The variable naming convention is as in ECMAScript, but names beginning with the underscore character ("_") and names ending with a dollar sign ("$") are reserved for internal use. CCXML variables MUST NOT contain ECMAScript reserved words. They MUST also follow ECMAScript rules for referential correctness. For example, variable names must be unique and their declaration MUST NOT include a dot - "var x.y" is an illegal declaration in ECMAScript. Variable names which violate naming conventions or ECMAScript rules MUST cause an 'error.semantic' event to be thrown.

8.2.1.2: <var> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
name true String none Valid ECMAScript Variable name Indicates the name of the variable. It must be a valid ECMAScript variable name. However, it must not contain a scope prefix. The scope in which the variable is defined must be determined from the position in the document at which the variable is defined.
expr false ECMAScript Expression undefined Valid ECMAScript Expression Indicates the new value of the variable. This will be the initial value. It must be a valid ECMAScript expression.
8.2.1.3: <assign> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
name true ECMAScript Left Hand Side Expression none ECMAScript Variable An ECMAScript left hand side expression evaluating to a previously defined variable. The value of the attribute must receive the result of the expr attribute.
expr true ECMAScript Expression none Valid ECMAScript Expression Indicates the new value of the variable. It must be a valid ECMAScript expression.

8.2.2: <script>

8.2.2.1: Overview

<script> encloses computations written in the ECMAScript Compact Profile [ECMA327] scripting language. The ECMAScript Compact Profile is a strict subset of the third edition of ECMA-262 [ECMASCRIPT]. It has been designed to meet the needs of resource-constrained environments. Special attention has been paid to constraining ECMAScript features that require proportionately large amounts of system memory, and continuous or proportionately large amounts of processing power. In particular, it is designed to facilitate prior compilation for execution in a lightweight environment. For specific details on what ECMAScript functions are not supported please take a look at ECMA-327 specification.

An implementation MUST support the ECMAScript Compact Profile and MAY support the full ECMA-262 ECMAScript specification.

The example <script> below defines a function that computes the greatest common factor of two integers:

<script>
<![CDATA[
function gcd(a, b)
{
 var t;
 if (a < 1 || b < 1)
   return -1;
 do
  {
   t = a % b;
   a = b;
   b = t;
  }
 while (b > 1);
 return (b == 0) ? a : b;
}
]]>
</script>

An implementation MUST support <script> within the <ccxml> element and in executable content. <transition> and <if> contain executable content. The implementation MUST evaluate <script> in a <ccxml> immediately after the document is loaded, along with any <var> and <assign> elements, in document order. When used as a child of the <ccxml> element, <script> cannot be used to execute dynamically fetched content obtained using <fetch>. The implementation MUST evaluate <script> in executable content as it is processed.

The ECMAScript contained within the <script> can declare variables with the ECMAScript var statement. Variables declared in this manner are declared in the scope of the closest containing scope CCXML element. They are known from the point of declaration to the end of the containing scope. The implementation MUST allow reference to these variables from CCXML and from ECMAScript, using either the fully-qualified variable name, or the declared name.

If the implementation is unable to run the script referenced it MUST throw an error.semantic event.

8.2.2.2: <script> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
src false This attribute must not be specified in conjunction with the fetchid attribute. Valid URL none a valid URL A URI which references a resource which is the script content, and which must be resolved when the CCXML document is compiled. Note that the src attribute, fetchid attribute and the script element content are mutually exclusive and exactly one of them must be present, otherwise the implementation must throw an error.fetch event.
Note that the value of the src attribute must not be an ECMAScript expression in order to allow it to be resolved at compile-time. If the script cannot be fetched the implementation must throw an error.fetch event.
fetchid false This attribute must not be specified in conjunction with the src attribute. ECMAScript Expression none valid fetch ID An ECMAScript expression which returns the fetch identifier of a completed fetch request, acquired either in a fetch with the fetchid attribute, or from the fetchid attribute of a fetch.done event. If the fetch identifier is invalid, has not completed, or the fetched content is not valid ECMAScript, an error.semantic event must be thrown.
timeout false This attribute is only valid in conjunction with the src attribute. Character string none Character string in CSS2 [CSS2] format The character string must be interpreted as a time interval. This interval must begin when the script is requested; If the script has not been fetched at the end of this interval, an error.fetch event must be thrown.
maxage false This attribute is only valid in conjunction with the src attribute. Character string none A valid time value for the HTTP 1.1 request [RFC2616] The character string must be interpreted as a time interval. This indicates that the document is willing to use content whose age must be no greater than the specified time in seconds (cf. 'max-age' in HTTP 1.1 [RFC2616]). The document is not willing to use stale content, unless maxstale is also provided.
maxstale false This attribute is only valid in conjunction with the src attribute. Character string none A valid time value for the HTTP 1.1 request [RFC2616] The character string must be interpreted as a time interval. This indicates that the document is willing to use content that has exceeded its expiration time (cf. 'max-age' in HTTP 1.1 [RFC2616]). If maxstale is assigned a value, then the document is willing to accept content that has exceeded its expiration time by no more than the specified number of seconds.
charset false Character string UTF-8 valid character encoding type A character string that indicates the character encoding type of the script. UTF-8 and UTF-16 encodings of ISO/IEC 10646 must be supported (as in [XML] ) and other encodings, as defined in the [IANA] , may be supported.

8.3: Session Variables

Every CCXML session has a set of standard ECMAScript variables that are available to the program during execution called session variables. The session variables are defined by the CCXML implementation when the CCXML session is created and are read-only to the running script and cannot be modified by the CCXML program. New session variables cannot be declared by CCXML programs.

Session variable values visible to a CCXML application reflect the state of the executing CCXML session, current as of the occurrence of the event being processed. For example, when an application processes a Connection event such as connection.alerting, the value of the state property of the corresponding Connection object will be updated by the CCXML implementation so that if the CCXML program's event handler evaluates the state variable, it will evaluate to ALERTING, since connection.alerting always results in a transition to the ALERTING state. This is true even if the underlying connection is actually DISCONNECTED, in which case a connection.disconnected event would be queued. It is the responsibility of the CCXML implementation to control and update the session changes as they occur in the CCXML session. It is assumed that session changes are visible to the CCXML program as they occur. However, it is permissible for a CCXML implementation to optimize session changes by "lazy-binding" values as they are accessed or evaluated by a CCXML program, so as to minimize processing time. For example, an implementation might only update the current Connection states when a CCXML program evaluates the variable during execution time versus continually updating the Connection states inside ECMAScript scope as state changes. Regardless of when session variables are updated to reflect changes, the CCXML implementation is REQUIRED to provide the correct values when accessed by a CCXML program.

Variables defined in the session scope are subject to the parent scope chain delegation model but do not have a parent scope defined.

The following are the list of standard session variables:

session.startupmode
String that indicates the startup mode that the script was started as:
Value
 Details
newcall Session was started due to a new incoming call.
external Session was started due to a external session launch request.
createccxml Session was started due to a <createccxml> request.
session.id
A globally unique string that indicates the session identifier of the executing CCXML session.
session.uri
URI that was used when creating the current CCXML session. If the interpreter fetched multiple documents as a result of one or more HTTP redirects (e.g. 302), the value of this session variable is set to the URI of the final target. session.uri includes the query string used when fetching the document, if one is present.
session.parentid
String that indicates the session identifier of the parent of the CCXML session that created this session. In the case the current session has no parent, the value of the variable will be ECMAScript undefined. Once a new CCXML session is created, the new session and its parent are completely independent.
session.connections
Associative Array which contains a list of the Connection objects that the session is currently using. The array is associative and each key in the array is the connection identifier for the Connection. For example, session.connections["1234"] would return the Connection object for connection id 1234. The following example demonstrates the use of the session.connections variable:
<transition state="in_vxml_session" event="connection.disconnected">
  <if cond="session.connections['1234'].connectionid==event$.connid">
    <--  if the disconnect is on the first connection, do something -->
  <else/>
    <exit/>
  </if>
</transition>
session.conferences
An Associative array which contains a list of the Conference objects for which the session is attached using <createconference> For example, session.conferences["1234"] would return the Conference object for conference id 1234.
session.dialogs
Associative Array which contains a list of the Dialog objects that the session is currently using. The array is associative and each key in the array is the dialog identifier for the Dialog. For example, session.dialogs["1234"] would return the Dialog object for dialog id 1234.
session.ioprocessors
Associative Array which contains a list of external event I/O access URIs which are available to the current session. The array is associative and each key in the array is the type of the event I/O processor. For example, session.ioprocessors["basichttp"] would return the access URI (e.g. http://www.example.com/ccxml/basichttp) for the "basichttp" type event I/O processor.
session.values
Associative array which contains a list of session parameters passed on session creation. For sessions created using <createccxml>, session.values contains variables passed using the 'parameters' attribute of <createccxml>. Other session creation mechanisms, such as the HTTP-based session creation I/O processor defined in Appendix L, define other mechanisms for populating this variable.

8.4: Application Variables

CCXML provides application variables which, like session variables, persists across the CCXML application. Application variables differ from session variables in that they can be modified by CCXML programs.

The application object is initialized by the CCXML implementation. Application variables that are properties of the application object are not explicitly declared. Application variables that are not properties, e.g. objects, must be declared. By default, application variables have the value ECMAScript undefined. Variables in the application scope are subject to the parent scope chain delegation model and have session as their parent scope. For example:

        <assign name="application.userid" expr="'user001'"/>
        <var name="application.obj" expr="new Object()"/>
        <assign name="application.obj.prop1" expr="'value of prop1'"/>
        <assign name="application.obj.prop2" expr="'value of prop2'"/>

Application variables are visible within documents which form the CCXML application. For example, a document in a CCXML application could assign an application variable a value using <assign name="application.userid" expr="'user001'"/>, and a later document in the CCXML application could reference application.userid to retrieve the value 'user001'.

Application developers should be careful in their use of application variables since they are visible to all CCXML documents within a CCXML application.

9: Event Handling

This section contains information on <eventprocessor>, <send>, <cancel>, <transition> and <move>.

9.1: Overview

Event Handling is one of the most powerful features of CCXML. CCXML events can be delivered at any time and from a variety of sources. This flexible event-handling mechanism is essential for many telephony applications.

Every CCXML session can send and receive events. These might be in response to a previous action by the CCXML session (e.g., an outbound-call request, which generates an event to indicate when the call goes off-hook), or on the initiative of some external source (e.g., an incoming call to be answered). Events can be generated by the telephony system (as in the two previous examples), other CCXML sessions (which emit events via <send>), Dialogs, or CCXML sessions can send events to themselves.

There is a core set of telephony-related events (derived from the JCC event model for connection objects; See the JAIN Call Control API (JCC) [JSR021] for more information) that a browser MUST support. Implementers are otherwise free to define and support any platform-specific events they like. In addition, users/programmers may use <send> to send arbitrary events to external destinations, or may send arbitrary events to CCXML documents from internal or external sources and may specify transition handlers to handle these events.

The transmission and reception of events both external and internal is controlled by a logical component in the platform called the "Event I/O Processor". A platform may support more than one type of Event I/O Processor and each of them may support a different format of external events (For example: SOAP, JMS, SIP, Simple HTTP or any other event transmission approaches). For incoming events the Event I/O Processor is responsible for accepting the incoming event and transforming it into an ECMAScript event object that can be accessed by CCXML. For outgoing events the Event I/O Processor is responsible for deciding the serialization and transport formats. The operation and behavior of Event I/O Processors is platform dependent; however, this specification defines a Basic HTTP Event I/O Processor (Appendix K) that defines event transmission over HTTP. External Event I/O processors and new events created using <send> will typically generate application-specific events with different names than those of the standard events in this specification; however, it is legal for external sources and for events created using <send> to generate standard events. For instance, it is useful to be able to generate a ccxml.kill event to attempt graceful termination of a session from an external context, or from another CCXML session. Platforms SHOULD reject any standard events that do not contain all of the mandatory properties defined in this specification, and SHOULD notify the sender of the rejection (for instance with an error.send event).

Each running CCXML interpreter has a queue, into which it places incoming events. Events are generally queued on a first-in, first-out (FIFO) basis; however, certain classes of events are queued differently, as described in the paragraphs below. A CCXML programmer can only gain access to these queued events by using the <eventprocessor> element with associated <transition> elements.

An event can be delivered to a CCXML session using a <send> element in which case an optional delay may be specified. If a delay is specified, the event is not delivered to the target CCXML session until the delay time has elapsed. When the delay has elapsed, the event is queued as if it had just occured, using standard queueing rules.

There are three types of events that, when delivered to a CCXML session, are handled differently. All ccxml.kill and ccxml.kill.* events are placed at the head of the event queue rather than the tail so that they are processed in preference to all other events. All error.* events are placed at the head of the queue but behind any error.*, ccxml.kill, or ccxml.kill.* events that are already on the queue. ccxml.loaded events are always placed at the head of the queue.

An <eventprocessor> is interpreted by an implicit Event Handler Interpretation Algorithm (EHIA). The EHIA's main loop removes the first event from the CCXML session's event queue, and then selects from the set of <transition>s contained in the <eventprocessor>. A <transition> always indicates a set of accepted event types, MAY indicate a required current value of the ECMAScript state variable specified in the <eventprocessor>, and MAY indicate a further ECMAScript conditional expression to be evaluated. The <transition> that accepts the type for the just-removed event, is in the specified state, has a satisfied conditional expression, and appears first in the <eventprocessor> in document order, is the selected <transition>.

Once selected, an object representing the event being processed is created at transition scope, and the elements inside the <transition> are executed in document order. If a semantic error occurs that prevents an element in the transition from being executed (such as the 'cond' attribute of <if> being an invalid ECMAScript expression), then successive elements within that transition will NOT be executed; an error.semantic will be raised for the element that could not be executed. Note that elements that can be executed but that generate errors (such as a <disconnect> on an invalid connection ID) do not terminate execution of the transition.

At most one <transition> will be chosen. If no <transition> meets all the criteria, none are selected and the event is simply dropped; the EHIA loop then starts over again, removing the event at the head of the queue. The only exception to this rule is when ccxml.kill and error.* events are received; in this case, the CCXML interpreter will end the session if there are no <transition>s that match the ccxml.kill and error.* events explicitly.

Any events that arrive while an event is already being processed are just placed on the queue for later. If the event queue is empty, and the EHIA wants to process an event, execution pauses until an event arrives.

During the processing of an event by the EHIA, the state of any ECMAScript objects exposed by a platform, such as the Connection object, must reflect the state of the CCXML session immediately following the occurrence of the event. For instance, if a 'connection.alerting' event is being processed against a connection with ID 1234, then session.connections['1234'].state would have a value of 'ALERTING'. This is true even if the actual connection has already been terminated, with a 'connection.disconnected' event queued (but not yet processed) against the session. It is required that the ECMAScript context for the session is updated prior to the selection of a matching <transition>, since the <transition> might contain an ECMAScript conditional expression, the value of which depends on the state changes caused by the event.

Code inside an <eventprocessor> SHOULD run "instantaneously", without blocking execution. This will allow events to be rapidly processed. CCXML applications should be aware of this and should keep calculations such as large ECMAScript functions within a transition to a minimum.

The only way for CCXML execution to leave an <eventprocessor> is via an explicit <goto> or <exit> inside a <transition> or an unhandled error or ccxml.kill event .

An <eventprocessor> MAY also declare a state variable attribute. An <eventprocessor>'s state variable must be declared in the ccxml scope using a <var> or a <script>. The <eventprocessor> can be considered, and programmed as, a finite-state-automaton, with the state variable indicating the automaton's current state or node, and the <transition>s, driven by incoming events, moving the machine to a new state and creating side effects along the way.

9.2: Elements

9.2.1: <eventprocessor>

9.2.1.1: Overview

The <eventprocessor> acts as a container for <transition>s. A valid CCXML document MUST only have a single <eventprocessor>.

9.2.1.2: <eventprocessor> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
statevariable false string none ECMAScript Variable name This is a CCXML variable name, which is the name of the eventprocessor's state variable. This variable must be defined using the var or the script element in the ccxml scope.

<eventprocessor> can contain only <transition>s .

9.2.2: <transition>

9.2.2.1: Overview

The content of a <transition> specifies the actions to be taken when it is selected. The <transition> are examined by the EHIA in document order.

In order to be selected, a <transition> MUST satisfy three criteria:

  1. If a state attribute is specified on the <transition>, the parent <eventprocessor> MUST specify a statevariable attribute, and the current value of the associated variable MUST be equal to one of the values specified in the state attribute of the <transition>. If no state attribute is specified on the <transition>, this criteria is met regardless of whether or not the parent <eventprocessor> specifies a statevariable attribute
  2. the expression specified by the <transition> 's cond attribute MUST evaluate to true, if that attribute is present
  3. the current event's name property MUST match the pattern specified by the <transition>'s event attribute, if that attribute is present

A <transition> with none of the attributes, state, cond, or event, will always be selected when encountered by the EHIA.

If the state attribute of <transition> is specified without <eventprocessor> having a statevariable attribute an error.fetch event MUST be thrown when the document is loaded.

The contents of the received event object will be available via the transition scoped event$ ECMAScript variable. This variable is accessible from the <transition> cond attribute to allow CCXML Applications to conditionally select <transition>'s based on the contents of the event.

9.2.2.2: <transition> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
state false string none This indicates the current possible value of the variable associated with the statevariable attribute of the parent <eventprocessor>. More than one value may be specified, separated by whitespace. If the parent <eventprocessor> does not specify a statevariable attribute, and a <transition> specifies a state attribute, the interpreter MUST fail to load the document as specified in 9.5.1.
event false string none This is a pattern that indicates a matching event type. Event types are dot-separated strings of arbitrary length. The character * is a wild-card, and will match zero or more characters of the processed event's type name.
cond false ECMAScript Boolean Expression true An ECMAScript Boolean expression. If this attribute is present, it must evaluate to true for the transition to be selected. Note: You can not access the value of the variable listed in the name attribute as it will not do the assign until the transition has been selected.
false ECMAScript Left Hand Side Expression none ECMAScript Variable
9.2.2.3: <transition> Event Matching

The event attribute of a <transition> specifies a pattern used to match event names. Each character in the pattern specified by event must match the corresponding character in the event name, except for the asterisk ('*') character, which acts as a wildcard that matches any substring of zero or more characters in the event name. Event names are case-insensitive.

Pattern match examples

Pattern
 Matches
*
 any event name
error.*
 error.fetch, error.dialog.notstarted
error.*.*
 error.dialog.notstarted
err*
 any event name starting with "err"

9.2.3: <send>

9.2.3.1: Overview

<send> is used to send messages containing events or other information directly to another CCXML Interpreter or other external systems using an Event I/O Processor.

The event target of <send/> is specified using the target and targettype attributes. These attributes control how the platform should dispatch the event to its final destination.

The target attribute specifies the unique identifier of the event target that the Event I/O Processor should send the event to. This can be the value of a CCXML Session ID or a Dialog ID if you wish to send an event to one of these respective targets. In the case where you are using some other Event I/O Processor this attribute should be able to describe how to connect to the event destination (For example a SIP URL for SIP-INFO messages or a HTTP URL for Web Services). If the value of the target attribute is not supported, invalid or unreachable by the Event I/O Processor the Platform MUST throw a error.send.targetunavailable event.

The targettype attribute controls what Event I/O Processor the event should be sent to. The default value of this attribute is 'ccxml'. If the event targettype specified is not supported the platform MUST throw a error.send.targettypeinvalid event.

A platform must support the following values for the targettype attribute:

Value
 Details
ccxml CCXML Session Event Processor.
dialog Dialog Event Processor.
basichttp Basic HTTP Event I/O engine (See Appendix K).

Platforms may support other types of Event I/O Processors, for example: Web-services, SIP or basic HTTP GET. However, platforms SHOULD name the Event I/O Processor beginning with "x-" to signify that they are platform dependent.

<send> also specifies the content of the message to be sent. <send> may specify message content in one of two ways (the following mechanisms are mutually exclusive):

When inline XML is specified, the content of the <send> is parsed but MUST be ignored by the sending CCXML Interpreter until the <send> is executed. XML namespace binding within the <send> element MUST be preserved in the message sent to the <send> target. This may result in XML namespace declarations being added to the message contents in order to resolve XML namespace prefixes whose associated namespace declarations were not contained in the message contents in the original CCXML document. It is the responsibility of the Event I/O Processor responsible for forwarding events to the <send> target to parse the incoming message and remove the namespace bindings, if required by the <send> target.

The sending CCXML Interpreter MUST NOT alter the content of the <send> other than by adding namespace declarations for unresolved namespace bindings. The data contained within a <send> MUST be sent to the destination specified in the target attribute of <send> using the Event I/O Processor specified by the targettype attribute.

The mechanism by which the content of the message is made available to the target depends on both the targettype and the way in which the content is specified:

Although the full set of requirements for the Event I/O Processor is not within the scope of this specification, an event processor sending an event to a CCXML Interpreter is required to generate an event which can be processed in a CCXML Session. See Section 9.1 for details regarding the processing of incoming events by an CCXML Interpreter.

When a message is successfully sent to the target, a send.successful event will be thrown. Note that this does not mean that the target processed the message successfully. It is up to the target to generate events specific to the message. These events are application specific.

If the send request fails, an event signifying the error will be returned to the CCXML Session. The failure events are documented at the end of this section.

9.2.3.2: <send> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
target true ECMAScript Expression none A valid target URL An ECMAScript expression returning the target location of the event. The target attribute specifies the unique identifier of the event target that the Event I/O Processor must send the event to.
targettype false ECMAScript Expression ccxml ccxml
dialog
basichttp		 An ECMAScript expression which returns a character string that specifies the type of the Event I/O Processor that the event must be dispatched to. Values defined by the specification are:
ccxml
This specifies that the event must be dispatched to the CCXML Session Event Processor..
dialog
This specifies that the event must be dispatched to the Dialog Event Processor.
basichttp
This specifies that the event must be dispatched to the Basic HTTP Event Processor.
sendid false ECMAScript Left Hand Side Expression none ECMAScript Variable An ECMAScript left hand side expression evaluating to a previously defined variable. The value of the attribute must receive an internally generated unique string identifier to be associated with the event being sent.
delay false ECMAScript Expression '0s' An ECMAScript expression which returns a character string in CSS2 [CSS2] format The character string returned must be interpreted as a time interval. The send element must return immediately, but the event must not be dispatched until the delay interval elapses. Timers are useful for a wide variety of programming tasks, and can be implemented using this attribute.
Note: The delayed event queue for sending events must be maintained locally. Any events waiting to be sent must be purged when the session that issued this request terminates.
name false This attribute must not be specified in conjunction with inline content ECMAScript Expression none An ECMAScript expression which returns a character string that indicates the type of event being generated. The event type may include alphanumeric characters and the "." (dot) character. The first character may not be a dot or a digit.
Event type names are case-insensitive.
If neither the name attribute nor inline content is specified, an error.fetch event must be thrown.
If used in conjunction with the inline content, an error.fetch must be thrown.
namelist false This attribute must not be specified in conjunction with inline content Var List none List of ECMAScript Variable names A list of zero or more whitespace separated CCXML variable names to be included with the event. Values for these variables are evaluated when the <send> element is processed See section 9.2.3.1 for details on how these variables are made available to the target.
If used in conjunction with the inline content, an error.fetch must be thrown.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform to configure the event processor. The meaning of these hints is specific to the implementing platform and the event processor.
9.2.3.3: <send> Examples

In this example we send the current CCXML session a hello.jack event that contains a single field. We catch the event, log the field and exit:

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0" xmlns="http://www.w3.org/2002/09/ccxml">
  <eventprocessor>
    <transition event="ccxml.loaded">
      <var name="jacksvar"
              expr="'I am Jack\'s complete lack of surprise.'"/>
      <send target="session.id" targettype="'ccxml'"
       name="'hello.jack'" namelist="jacksvar"/>
    </transition>
    <transition event="hello.jack">
      <log expr="event$.jacksvar"/>
      <exit/>
    </transition>
  </eventprocessor>
</ccxml>

In this example we send a event to our parent and then exit:

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0" xmlns="http://www.w3.org/2002/09/ccxml">
  <eventprocessor>
    <transition event="ccxml.loaded">
      <var name="jacksvar"
              expr="'I am Jack\'s inflamed sense of rejection.'"/>
      <send target="session.parentid" name="'hello.jack'"
       targettype="'ccxml'" namelist="jacksvar"/>
      <exit/>
    </transition>
  </eventprocessor>
</ccxml>

In this example we catch a dialog.transfer request and just return a error event back to the dialog:

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0" xmlns="http://www.w3.org/2002/09/ccxml">
  <eventprocessor>
    <transition event="dialog.transfer">
      <var name="reason" expr="'I am a jack's unsupported transfer.'"/>
      <send target="event$.dialogid" name="error.unsupported.transfer"
       targettype="'dialog'" namelist="reason"/>
      <exit/>
    </transition>
  </eventprocessor>
</ccxml>

In this example we send the current CCXML session an event that contains an ECMAScript Object and a qualified variable. We catch the event, log some properties resulting in the string "1, 2, 3, 4", and exit:

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0" xmlns="http://www.w3.org/2002/09/ccxml">
  <eventprocessor>
    <transition event="ccxml.loaded">
      <var name="obj1">
      <assign name="obj1.prop1" expr="'1'">
      <assign name="obj1.prop2.a" expr="'2'">
      <assign name="obj1.prop2.b" expr="'3'">
      <var name="obj2">
      <assign name="obj2.prop1" expr="'4'">
      <send target="session.id" targettype="'ccxml'"
       name="'my.complex.event" namelist="obj1 obj2.prop1"/>
    </transition>
    <transition event="my.complex.event">
      <log expr="event$.obj1.prop1 + ', ' + event$.obj1.prop2.a + ', ' +
                 event$.obj1.prop2.b + ', ' + event$.obj2.prop1"/>
      <exit/>
    </transition>
  </eventprocessor>
</ccxml>

9.2.4: <move>

9.2.4.1: Overview

<move> is used to move an event source (such as a Connection object) to an executing CCXML session. When an event source is moved to a session, events originating from that source will be delivered to that session's currently executing CCXML document. The event OR the source attribute MUST be specified. If neither attribute is specified or both attributes are specified, an error.fetch event will be thrown.

Support for the <move> element is optional in CCXML platforms. Even if <move> is supported platforms may only support it between a restricted set of CCXML sessions. If <move> is unsupported the CCXML platform will raise an error.move event.

A <move> attempt may fail for a number of reasons. These reasons include:

A <move> is not allowed once an event source is associated with another object through an implicit or explicit <join>. Moving event sources that are joined would disassociate the objects connected through the join. For example the result of moving connection that has an active dialog would be two CCXML sessions, one owning the connection, the other owning the dialog.

In the event of a <move> failure, an error.move event will be generated to indicate that the <move> attempt was unsuccessful. Otherwise, a move.successful event will be generated against the session that performed the <move> to indicate that the request has completed successfully.

Since each CCXML session has an event queue, it is possible that a session executing a <move> will already have events in its queue from the event source that is being moved. As an example, this situation could easily occur with connection.alerting and connection.disconnected if the incoming connection is abandoned before a CCXML platform initiates processing. Any such events will be removed from the queue of the session performing the <move>, and placed into the queue of the session that the event source is being moved to. Each event moved in this manner will be inserted into the queue of the target session as if it was a new event occuring in the context of that session. The order in which events are queued is the order in which they appear in the event queue of the session performing the <move>. If the event attribute is specified, then the referenced event is placed into the queue of the target session before other queued events from the event source are inserted. Note that queueing rules governing the order in which the inserted events will be processed continue to apply.

Like all CCXML elements, <move> executes asynchronously. As such, there is a period of time during which events generated by the event source being moved cannot be processed either by the session performing the <move>, or by the target session. If the <move> fails, then these events remain in the queue of the session that attempted the <move>, and will be processed normally. However, while the <move> is being performed, events from event sources other than the one being moved will continue to be processed according to the EHIA. As such, a failed <move> request may result in events being processed in a different order than if no <move> operation was performed. Note that the relative ordering of events from the event source being moved is not changed even as a result of such a failure.

9.2.4.2: <move> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
source false This attribute must not be specified in conjunction with the event attribute. ECMAScript Expression none (valid connection or dialog ID) An ECMAScript expression which returns a connectionID or dialogID. The event source associated with this identifier must be moved to the target session.
Either the source or the event attribute has to be specified. If neither of them is specified, or if both are specified, an error.fetch event must be thrown.
If the attribute value is invalid, an error.semantic event must be thrown.
event false This attribute must not be specified in conjunction with the source attribute. ECMAScript Expression none An ECMAScript expression which returns an event object. The event source from which the event object originated, if any, must be moved to the target session. The event must also be sent to the target session to provide a notification.
Either the source or the event attribute has to be specified. If neither of them is specified, or if both are specified, an error.fetch event must be thrown.
sessionid true ECMAScript Expression none A valid CCXML session id An ECMAScript expression that identifies the session to which the event source must be moved.

9.2.5: <cancel>

9.2.5.1: Overview

When a CCXML program uses <send> to send an event and includes a delay attribute, the <cancel> command will cancel the pending event, if possible.

The cancel operation cancels a pending event by removing it from the delayed event queue of the CCXML session that initiated the <send>, preventing it from ever being delivered. If the delay has expired and the event has already been removed from the delayed event queue, the <cancel> request will fail and an error.notallowed event will be delivered to the event queue of the CCXML session that executed the <cancel>. Otherwise, a cancel.successful event will be delivered to indicate that the <cancel> was successful, and that the cancelled event was not delivered. Sessions are only permitted to cancel their own delayed events; they may not cancel the delayed events of other sessions.

9.2.5.2: <cancel> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
sendid true ECMAScript Expression none A valid event identifier An ECMAScript expression which returns the value of the event identifier that was received when the send command was issued.

9.3: Events

9.3.1: error.notallowed

This error event is thrown when the execution of an element causes an invalid operation to be performed on a session and/or connection. The fields available in this event are:

Attribute Name Required Type Details
name true string error.notallowed
sessionid true string The ID of the affected session.
connectionid false string The ID, if specified in the element being executed, of the affected connection or conference.
reason true string A description of the reason the operation was denied. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML or Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml if this event is generated by the CCXML Session Event processor. If the event is generated by the platform, the value will be platform dependent.
tagname true string This property must be set to the ECMAScript string value of the name of the element that produced the error (ie accept, reject, etc).

9.3.2: error.semantic

This error event is thrown when there is a semantic error in a CCXML element (ie. passing an incorrect value for an attribute, etc.).

The fields of this event are:

Attribute Name Required Type Details
name true string error.semantic
reason true string This property must be set to the ECMAScript string value of the printable error message associated with this error. Content of this field is platform-specific.
tagname true string This property must be set to the ECMAScript string value of the name of the element that produced the error (ie accept, reject, etc).
attributelist.* false ECMAScript Object If available in the interpreter, this property must be an object whose properties are the names of the attributes of the element in error. The value of each attribute property must be the corresponding string value of the attribute.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

9.3.3: error.send.targetunavailable

Could not send the event to the target listed in <send> due to it currently being unavailable. The fields available in this event are:

Attribute Name Required Type Details
name true string error.send.targetunavailable
sendid true string The ID of the affected event.
reason true string A description of the reason the operation was denied. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

9.3.4: error.send.targettypeinvalid

Could not connect to the Event I/O Processor listed in <send>. The fields available in this event are:

Attribute Name Required Type Details
name true string error.send.targettypeinvalid
sendid true string The ID of the affected event.
reason true string A description of the reason the operation was denied. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

9.3.5: error.send.failed

Message in the <send> could not be sent for an unknown reason. The fields available in this event are:

Attribute Name Required Type Details
name true string error.send.failed
sendid true string The ID of the affected event.
reason true string A description of the reason the operation was denied. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

9.3.6: send.successful

This event is thrown when an event is successfully delivered to the specified receiver. Receipt of the event does not imply the event has been processed by the receiver but simply that it has been sent without error. The fields available in this event are:

Attribute Name Required Type Details
name true string send.successful
sendid true string The ID of the send request as returned in the sendid attribute of the send element.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

9.3.7: move.successful

This event is thrown when an event source is successfully moved to a CCXML session. The fields available in this event are:

Attribute Name Required Type Details
name true string move.successful
sourceid true string The ID of the event source that has been moved as specified either directly via the source attribute or indirectly via the event attribute of the move element.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

9.3.8: cancel.successful

This event is thrown when the sending of an event has been successfully cancelled. The fields available in this event are:

Attribute Name Required Type Details
name true string cancel.successful
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
sendid true string The ID of the send event that has been cancelled as specified in the sendid attribute of the cancel element.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

9.3.9: error.move

This event is thrown when a move request performed by a session fails to complete successfully. The fields available in this event are:

Attribute Name Required Type Details
name true string error.move
sourceid true string The ID of the event source referenced either directly via the source attribute or indirectly via the event attribute of the move element.
sessionid true string The ID of the target session to which it was attempted to move the event source.
reason true string A description of the reason for which the move request failed. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the CCXML Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. This must be set to ccxml as this is an event generated by the CCXML Session Event processor.

9.4: Standard Events

9.4.1: Overview

CCXML can generate arbitrarily-named events. While any event name is possible, there is a small set of well-known events that are generated as a matter of course, and which any telephone application SHOULD handle. There are three kinds of these events: connection events, language events and error events.

The first, and larger set, is present so a CCXML session can keep abreast of events happening with the telephone network. CCXML is designed to be neutral with respect to the telephony layer, so the event set MUST be very generic and capable of describing the behavior of a wide variety of systems (e.g., [Q931], [SS7], VoIP, etc).

9.4.2: Standard Event Attributes

9.4.2.1: Overview

All events received in a CCXML session must have a number of standard fields. It is the responsibility of the Event I/O Processor that delivered the event to make sure that they are present.

9.4.2.2: Standard Event Attribute Table
Attribute Name Required Type Details
name true string This property must be set to the ECMAScript string value of the event name.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. If the event source can receive events, you can use this identifier in the target of send.
eventsourcetype true string The name of the Event I/O Processor that sent this event. If the event source can receive events, you can use this in the targettype attribute of send.

9.4.3: Connection Events

9.4.3.1: Overview

CCXML applications are notified of Connection activities by events, which often reflect Connection state changes. Applications MAY also take actions which change the state of a Connection and which cause other events to be generated.

Connection events and their properties are specified in section 10.6: Events

9.4.4: Language Events

Language Events are a general class of responses that occur as a result of the execution of elements within a CCXML document. These events may be further categorized as follows:

9.4.5: Error Events

9.4.5.1: Overview

CCXML uses its event handling mechanism to notify a CCXML document of errors that occur during execution. An error notification takes the form of an error event that is added to the event queue of the CCXML document where the error occurred. All error events are named with the prefix "error." so that a properly defined <transition> can filter out error events.

Here is an example of a <transition> that can be used to filter out and report error events:

<transition event="error.*">
  <log expr="'an error has occurred (' + event$.reason+ ')'" />
  <exit/>
</transition>

All error events have a set of properties in common, shown in the following table:

Attribute Name Required Type Details
reason true string This property is set to the ECMAScript string value of the printable error message associated with this error

9.5: Error Handling

A CCXML interpreter MAY provide the attributelist property on the error event. The attributelist object MAY have just the attribute and value in error, or MAY provide all the attributes and values.

Due to the nature of CCXML's event handling mechanism, some error scenarios are treated differently. These scenarios are described below.

9.5.1: Fetching & compilation errors

Errors that occur in trying to load and compile a CCXML document, such as the inability to fetch the CCXML page or statically referenced ECMAScript content, XML parsing or validation errors, compilation errors or other errors that occur as a result of trying to fetch and run a CCXML page prior to document initialization. The handling of fetching errors is dependent on the context of the fetch; if the fetch was triggered by a running CCXML document using <createccxml> or <fetch>, then an error.createccxml or error.fetch (respectively) MUST be thrown to the initiating session. If an error occurs fetching the initial CCXML document for a session created to handle an incoming call, the CCXML session created for the incoming call MUST be terminated; the incoming call SHOULD be rejected. If the session is created through other means (such as the Session Creation Event I/O Processor), the session MUST be terminated; the creator of the session SHOULD be notified.

9.5.2: Document Initialization Errors

Errors that occur during documentation initialization (elements that occur in the CCXML document before <eventprocessor>) occur outside of CCXML's event handling mechanism. These errors MUST cause the CCXML thread of execution to terminate and notify the platform of the document error.

9.5.3: Error In <eventprocessor> attributes

An <eventprocessor> contains <transition>s that comprise CCXML's event handling mechanism. Since errors in <eventprocessor> attribute evaluation could keep the EHIA from correctly processing an event, these errors MUST cause the CCXML thread of execution to terminate and notify the platform of the document error.

9.5.4: Error in <transition> attributes

<transition> attributes specify when the elements contained by the <transition> should be executed. Since errors in <transition> attribute evaluation could keep the <transition> from correctly handling the error event, these errors MUST cause the CCXML thread of execution to terminate and notify the platform of the document error.

9.5.5: Errors While Handling Error Events

If an error occurs during the handling of an error event another error event will be raised and posted to the front of the event queue. In many cases this may be perfectly acceptable and the CCXML application may be able to successfully recover from the error. In some situations however this can lead to an infinite loop in the CCXML session. Implementations MAY choose to include some form of loop detection and to terminate the CCXML session when a loop is detected.

10: Telephony Operations and Resources

This section contains information on <accept>, <createcall>, <createconference>, <destroyconference>, <disconnect>, <join>, <merge>, <redirect>, <reject>, and <unjoin>.

10.1: Overview

The primary goal of CCXML is to provide call control throughout the duration of a call. Call control includes handling incoming calls, placing outgoing calls, bridging (or conferencing) multiple call legs, and ultimately disconnecting calls.

In CCXML call control occurs through three major concepts: Connections, Conferences and Bridges.

A Connection is an object modeling a resource by which two independent unidirectional media streams, and optionally any associated network signaling traffic, can be controlled by a CCXML session. This corresponds roughly to a "call leg" as the term is used informally. The picture below illustrates the media streams associated with the Connection c1.

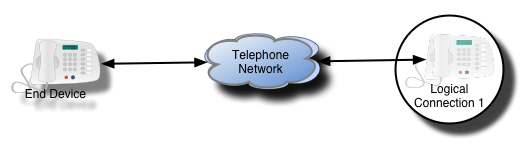

Connection

A Bridge occurs when the input and/or output media streams of Connections or Conferences are linked or "joined" together. The picture below depicts the result of a full duplex <join> between the connections c1 and c2.

bridge

A Conference is an object that controls the mixing of media streams for two or more Connections through Bridges.In the picture below, the connections c1 and c2 are joined in a full duplex mode to the conference C1.

conference

These concepts are discussed in greater detail in the sections below.

10.1.1 Concepts Background (INFORMATIVE)

The goals of the CCXML call model are to focus on relatively simple types of call control and to be sufficiently abstract so that the call model can be implemented using all major telephony definitions such as JAIN Call Control(JCC) [JSR021], [CSTA], and [S.100]. The JCC call model meets these requirements by providing an event model for connections which abstracts away many of the differences between telephone networks (e.g., [Q931], [SS7], VoIP, etc). Additionally, this call model is small and easily-understood so that concrete example programs can be written.

JCC was designed to be a cross-platform high-level event set to describe as generic a phone model as possible. The JCC call model consists of Addresses, Calls, Connections, and Providers. In the context of CCXML, it was felt that the Address, Call, and Provider objects would add more complexity than value, so these were omitted as explicitly visible objects. Instead the behavior of Connections became the focus.

The CCXML call model therefore is based on the behavior of Connections. A call is received or initiated under control of a CCXML session through the properties of a Connection.

Note that the JCC model is designed for endpoint devices only.

10.2 Connections

The CCXML call model is based on the behavior of Connections.

Each Connection has one input by which it receives a media stream from another Connection or Conference.

Each Connection has one output media stream that can be directed to the inputs of multiple Connections and/or Conferences.

If a network call is active on a Connection, the media stream received from the network is the Connection output, and the Connection input media stream is transmitted to the network.

Dialogs are also modeled internally as a Connection for the purposes of media interaction. The Dialog object behaves as if it was a Connection object and can be joined to other resources in the same way as any other Connection. A Dialog will not however be listed in the session.connections session variable.

<dialogstart connectionid="c1" src="'example.vxml'" duplex="'full'">

dialogstart

For a Connection created by <dialogstart> , the Connection input media stream is available to a recognizer under control of the CCXML session, and the Connection output media stream can be sourced from a resource (such as a Text To Speech engine) under control of the CCXML session.

10.2.1: Connection State

The state of a Connection Object reflects events that are generated, either a result of actions that occur within the telephony network, or as a result of actions performed by the CCXML application. The following state diagram shows the major aspects of Connection behavior, but omits some detail in favor of clarity (e.g. The ERROR state).

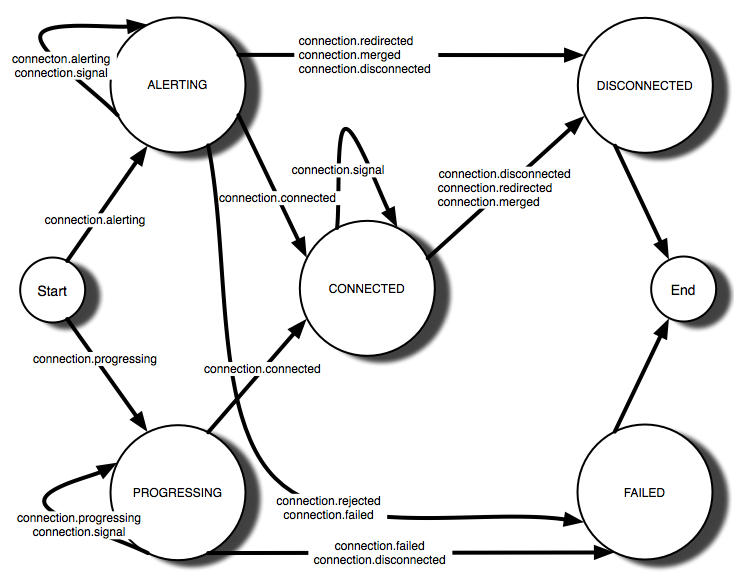

Connection state diagram

The list of valid states that a connection can be in is:

Connection Objects are created when a incoming call arrives to the platform via a connection.alerting event or via the execution of <createcall>.

Connection Objects are automatically destroyed by the platform after they have reached the DISCONNECTED, FAILED or ERROR states. Platforms are responsible for deciding when to remove unused Connection Objects, however platforms MUST maintain a Connection Object at least through the <transition> for the corresponding connection.disconnected, connection.failed, connection.redirected, connection.merged or error.connection event

The PROGRESSING and ALERTING states have reflexive transitions. This is intended to model protocols which have additional states at these points, and which MAY exchange messages such as PROCEEDING, ALERTING, FACILITY, or NOTIFY. Platforms MAY choose to implement additional states which MAY be reflected in the substate property of the Connection object. Additional messages can be implemented with <send>.

10.2.2: Connection Object

An instance of the Connection Object is associated with each telephony event source. Each instance is uniquely identified by its connection identifier. All Connection instances have a set of properties in common, shown in the following table. Properties that are not indicated as required only appear on an instance of the Connection object if they have a value. Other properties will always be present.

The Connection Object is an extension of the Media Endpoint Object as defined in section 10.4.3.

Connection Properties Required Definitions
connectionid true This property is the ECMAScript string value of the Connection Identifier, which uniquely identifies each instance of the Connection object.
state true This property identifies the current state of the Connection instance; the value of this property is one of the constants defined in section 10.2.5.
true
substate false This property is a protocol-dependent property which allows further refinement of the state of a Connection, if desired.
dialogid false This property is the identifier of an associated dialog, if there is one currently using the connection.
true MUST MUST
true MUST MUST MUST MUST
local false This property is a URI which addresses the interpreter platform; for an incoming call, this is the called URI; for a redirected incoming call, this is also the most recent redirection, and the prior values are contained in the "redirect" property; for an outgoing call, this is the calling URI.
remote false This property is a URI which addresses the remote device; for an incoming call, this is the calling URI; for a redirected incoming call, this is the requester of the most recent redirection, and prior values are contained in the "redirect" property; for an outgoing call, this is the called URI.
protocol false This property is a reference to an object defining protocol information for the protocol used on this connection; the referenced object defines information which applies to all connections using this protocol, and it has at least two properties:
  • name - the name of the connection protocol; the name MAY also be a property on the connection instance referencing protocol specific information; if no further protocol specific information is available, then Connection.protocol[Connection.protocol.name] is undefined; (see Appendix E for a suggested set of protocol names)
  • version - the version of the connection protocol
For example, the assignment of protocol-dependent user-to-user information to a variable tmp from a Connection instance referenced by the variable cx would be:
<assign name="tmp" expr="cx.protocol[cx.protocol.name].uui"/>
redirect false This property is an array representing the connection redirection paths; the first element, Connection.redirect[0], is the original number, and the last element is the most recent redirected number; each element of the array MAY define any of the following four properties:
  • uri - this element's path
  • pi - presentation information
  • si - screening information
  • reason - this is the reason for the redirect for example, "unknown", "user busy", "no reply", "deflection during alerting", "deflection immediate response", "mobile subscriber not reachable"
aai false This property is the application-to-application information passed during connection setup.
originator false This property is set to either "local" or "remote" and indicates the originator of the connection; for an incoming call, this property is set to "remote"; for an outgoing call, it is set to "local";
For example, the assignment of the originating URI to a variable uri from a Connection instance referenced by the variable cx would be:
<assign name="uri" expr="cx[cx.originator]"/>
input true The identifier (connectiondid/conferenceid/dialogid) of the single media endpoint (connection, dialog or conference) providing the input stream to this media endpoint or undefined if there is no input stream. This property MUST be updated each time a <join>/<unjoin> or any other media operation changes the media source to this media endpoint.
If the media endpoint does not have a media source the value MUST be ECMAScript undefined.
For example the creation of a half duplex bridge
<join id1="con1" id2="con2" duplex="half" />
Result
session.connections[con1].input = "con2"
session.connections[con2].input = undefined
outputs true An array containing the identifiers of all media endpoints to which the output stream of this media endpoint is sent. If the media endpoint does not have any media destinations the length of the array MUST be 0.
For example the creation of a half duplex bridge
<join id1="con1" id2="con2" duplex="half" />
Result
session.connections[con1].outputs.length = 0
session.connections[con2].outputs.length = 1

Platforms MAY choose to add properties to Connection instances. By convention, the properties MUST begin with an underscore, "_", to identify them as platform-dependent.

10.2.3: Connection Events

CCXML applications are notified of Connection activities by events, which often reflect Connection state changes. Applications may also take actions which change the state of a Connection and which cause other events to be generated.

In addition to the standard event attributes detailed in Section 9.4.2, all Connection events have a set of properties in common, shown in the following table. Fields that are not indicated as required only appear on the event object if they have a value. Other fields will always be present.

Attribute Name Required Type Details
connectionid true string The ID of the Connection associated with this event.
protocol false string The platform protocol ID of the Connection protocol.
info false ECMAScript Object An object which provides additional platform or protocol dependent information
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.

Platforms MAY choose to add properties to events. By convention, the properties MUST begin with an underscore, "_", to identify them as platform-dependent.

10.2.4: Connection Operations

CCXML defines a number of elements, specified in detail in section 10.5, that are used to interact with Connection Objects. Execution of these elements does not immediately change the state of the Connection Object; Connection Objects change their state once the event corresponding to the event transition is handed. Elements, such as <accept> or <createcall>, do not actually change the state of the connection but instead issue requests to the platform to process the corresponding command that will in turn raise the events that chance the connection state.

When elements are used to request an action against a Connection Object, a corresponding event is always generated to indicate the result of executing that request. For instance, when the <accept> element is used to answer an incoming call, a ‘connection.connected’ event indicates that the call was accepted successfully, whereas a ‘connection.failed’ indicates that the call could not be accepted. The events that can be generated by elements that act on connections, and the circumstances under which those events occur, are summarized in the table below. Note that the <join> and <unjoin> elements are not included, since these apply to both Connections and Conferences, and are discussed in detail in Section 10.4 on Bridges.

There are two common events that can be generated by any of the connection-affecting elements:

It is important to note that because CCXML is fully asynchronous, and because events can occur on the underlying communications network at any time, that connection-related events can occur that are not related to application actions. The most common of these is connection.disconnected, which can be triggered by a user-initiated hangup, and which can occur in any state during which the cal is active.

Finally, once an event is emitted by a Connection Object that transitions to a final state (such as DISCONNECTED), no further events will be generated by that Connection Object. Thus, even if an application has performed an <accept> and expects to receive one of ‘connection.connected’, ‘connection.accept.failed’, or ‘connection.failed’, it could receive a ‘connection.disconnected’ instead. Since this event is associated with a transition to the DISCONNECTED state, no further events will be generated; thus the application will not receive any event as a result of having performed an <accept>.

The following table shows the events that reflect the outcome of the connection-oriented elements defined by CCXML, for this reason the table omits the event generated by the underling network (i.e. connection.alerting and connection.signal):

Element

Event

Reason

(any)

error.semantic

A semantic error in the application, such as the use of an invalid ECMAScript expression, preventing the element from being executed. The intended target Connection Object state is unchanged by this event.

error.connection.wrongstate

An element was used on a Connection Object in a state that is not valid for that element. For instance, performing an <accept> on a Connection Object in the CONNECTED state would result in this event. The state of the Connection Object is unchanged by this event.

connection.disconnected

The connection has disconnected; no further events, including events for any pending requests, will be generated. The Connection Object is now in the DISCONNECTED state. Properties of this event allow the cause of the disconnection to be determined.

error.connection

A platform operational error has occurred on the connection; no further events, including events for any pending requests, will be generated. The Connection Object is now in the ERROR state.

<accept>

connection.connected

A connection in the ALERTING state was successfully accepted by the platform. This event is associated with a transition to the CONNECTED state.

connection.accept.failed

The <accept> request failed to complete – the event’s reason property may indicate why the request failed. The state of the Connection Object is unchanged by this event. Example situations that could result in this event include performing <accept> twice (by the time the second <accept> is processed, the underlying connection would already have been accepted), or performing <accept> after performing a <reject>.

connection.failed

The <accept> request failed to complete – the event’s reason property may indicate why the request failed. This differs from connection.accept.failed in that the state of the Connection Object changes to FAILED. This event would typically occur if an error occurred during the process of trying to accept the call.

<redirect>

connection.redirected

The <redirect> request completed successfully; the call was redirected to the specified destination. This event is associated with a transition to the DISCONNECTED state.

connection.redirect.failed

The <redirect> request failed to complete – the event’s reason property may indicate why the request failed. This can happen for any number of common reasons – redirect target status (busy, no answer, etc), invalid destination number, insufficient resources, and others. This event does not change the state of the call; a CCXML application might well try to redirect to an alternate number, or perform some other action.

connection.failed

The <redirect> request failed to complete, but terminated the connection in the process of attempting the redirection. The Connection Object transitions to the FAILED state.

<reject>

connection.disconnected

A connection in the ALERTING state was either declined successfully (as a result of the <reject> request), OR was withdrawn before the rejection was performed. The properties of the connection.disconnected event must be consulted to determine the actual cause. In either case, the Connection Object transitions to the DISCONNECTED state.

connection.reject.failed

The <reject> request failed to complete – the event’s reason property may indicate why the request failed. The state of the Connection Object is unchanged by this request. Similarly to connection.accept.failed, this event can be caused by performing an <accept> followed by a <reject>.

connection.failed

The <reject> request failed to complete – the event’s reason property may indicate why the request failed. Unlike connection.reject.failed, the state of the Connection Object changes to FAILED.

<createcall>

connection.progressing

An outbound connection is progressing; properties of the event may provide additional information about the progress of the outbound connection. This event does not imply final success or failure of an outbound connection, and does not change connection state – the Connection Object remains in the PROGRESSING state.

connection.connected

The <createcall> request completed successfully, resulting in the establishment of a connection. The Connection Object transitions to the CONNECTED state.

connection.failed

The <createcall> request was unsuccessful in establishing an outgoing connection. This can happen for any number of common reasons – target status (busy, no answer, etc), invalid destination number, insufficient resources, and others. Properties of the connection.failed event provide more information as to why the connection attempt failed. The Connection Object transitions to the FAILED state.

connection.disconnected

The <createcall> request was abandoned at the request of the application (using <disconnect>). The Connection Object transitions to the DISCONNECTED state. This event is technically the result of the <disconnect> request, but is listed here because it is a possible outcome of the <createcall> caused by the application. Note also that a network-triggered connection.disconnected is not possible when establishing an outbound call, as this would trigger a connection.failed event.

<disconnect>

connection.disconnected

A connection in the PROGRESSING or CONNECTED states was disconnected successfully at the request of the application, or as a result of network-initiated disconnection occurred. The properties of the event indicate the actual reason for the disconnection. This event is associated with a transition to the DISCONNECTED state.

connection.failed

The <disconnect> request failed to complete successfully, resulting in a transition to the FAILED state. This could reflect an error in the disconnection process (such as the lack of a disconnect acknowledgement from the network).

<merge>

connection.merged

Two connections were merged successfully as requested by the application. One connection.merged event is received on each of the two connections that were merged. Both Connection Objects transition to the DISCONNECTED state when their respective connection.merged events are processed.

connection.merge.failed

A <merge> request failed to complete successfully – the event’s reason property may indicate why the request failed. The states of the involved Connection Objects are left unchanged.
10.2.5: Connection Class

All connection objects MUST be initiated via the Connection class. The Connection class has several read-only properties.

The following table lists the constants that correspond to the possible values of the state property of the connection object.

Constant Value
Connection.ALERTING 0
Connection.PROGRESSING 1
Connection.CONNECTED 2
Connection.FAILED 3
Connection.DISCONNECTED 4
Connection.ERROR 5

The following table lists the values of each index in the read-only array of Connection states. Each connection state constant can be used to index into this array to return the human-readable string corresponding to that constant.

Constant Value
Connection.states[0] ALERTING
Connection.states[1] PROGRESSING
Connection.states[2] CONNECTED
Connection.states[3] FAILED
Connection.states[4] DISCONNECTED
Connection.states[5] ERROR

The following example logs the current state of the connection object:

<transition event="connection.*" name="evt">
   <log expr="Connection.states[evt.state]"/>
</transition>

10.3: Conferences

CCXML applications can use <createconference> to create a new conference, or to attach to an existing conference. The CCXML application can connect or disconnect existing connections/conferences/dialogs to the new conference using <join> and <unjoin> (as described in Section 10.4). When a session no longer requires the use of a conference, it uses <destroyconference> to detach from the conference. Asynchronous events will be sent to the CCXML document upon completion of each of these operations.

Each Conference Object has one logical output and multiple inputs. The actual output streams of a Conference Object are derived by mixing all its input streams, less any contributed audio of an individual Connection, Conference Object who receives that output. The output of a Conference Object can be directed to the inputs of multiple Connections and/or Conference Object (as a result of bridging).

Some telephony call control definitions do not define a separate Conference Object, instead defining a conference simply as a call with more than two parties. In order to accommodate the widest range of underlying telephony API's, CCXML requires explicit use of a Conference Object whenever two or more audio streams are mixed.

Unlike connections and dialogs, which are local to a single session (but can be moved between sessions using <move>), conferences are global across all sessions, and can be bridged with the connections/conferences/dialogs of any session. Conferences can be named in order to facilitate the use of that conference in other sessions. Assigning a name using the confname attribute allows other sessions to access the created conference by performing a <createconference> with the same value for confname. Conferences continue to exist so long as at least one session exists that has attached to the conference using <createconference> without a corresponding <destroyconference>. When a session terminates, it implicitly detaches from any conferences to which it is still attached. Note that it is not necessary for a session to share a conference by assigning it a name in order for other sessions to make use of that conference. Other sessions may still establish bridges to a conference using <join> and <unjoin>, regardless of whether or not they have accessed the conference using <createconference>; only the conference ID is required for this. Because conferences are global, it is not legal to perform a <move> against a conference.

NOTE: A simple two-party call does not require the use of a conference object. This is discussed in Section 10.4.

10.3.1: Conference Object Properties

An instance of the Conference class is associated with each Conference Object created by <createconference> and referenced in the session.conferences associative array.

Conference Properties Required Definitions
conferenceid true This property is the ECMAScript string value of the Conference Identifier, which uniquely identifies each instance of the Conference class.
bridges true associative This property is an ECMAScript associative array containing the identifiers of all connections/dialogs within the session that are currently bridged with the conference. Connections/dialogs owned by other sessions and joined to the same conference are not visible
conferencename true This property is the ECMAScript string value of the conference name that was passed in <createconference>. If no name was provided the value is ECMAScript undefined.

10.3.2: Conference class

All conference objects MUST be initiated via the Conference class. The Conference class currently has no defined properties.

10.4: Bridges

A "bridge" is a relationship between the input and/or output streams of Connections or Conference Objects. The bridge concept and the details of its behavior are fundamental to CCXML. Bridges may also involve Dialogs, which are equivalent to Connections with respect to establishing and terminating bridges. Connections and Dialogs are therefore not distinguished below.

There are two main ways in which CCXML applications can manipulate bridges:

Even in the simplest case of a network party interacting with a dialog, two Connections are REQUIRED, and a bridge is established between them implicitly by the action of <dialogstart>. More complex situations, such as two-party calls, two-party calls with "hot" word recognition, conference control, and "coaching" scenarios, all involve the use of multiple Connections and explicit control of one or more bridges between them by using <join> and <unjoin>.

The nature of bridges, and the behavior of <join> and <unjoin>, is concerned with the mapping between the media stream inputs and outputs of Connections and Conferences:

Bridges can be either one-way, in which the media stream flows only from party A to party B (such that B can hear A, but A cannot hear B), or two-way, in which the media stream flows in both directions between the parties invovled. <join> has a duplex attribute to distinguish between two-way bridges and one-way bridges. For example, <join> ing Connection A to Connection B with duplex=full will direct the A output to the B input, and the B output to the A input, creating a simple two-party call. If instead the same <join> is done with duplex=half, it will direct the B output to the A input, and will not have any effect on the B input. Similarly, <dialogprepare>/<dialogstart> have the 'mediadirection' attribute and <createcall> has the 'joindirection' attribute for controlling what kind of bridge is established.

For "hot word" recognition on a two-party call, a two-way (full duplex) bridge MUST be established between two network Connections, and a one-way (half duplex) bridge MUST be established from one of the network Connections to a third Connection that is associated with a dialog. There are several ways this arrangement can be achieved, depending on the initial states of the three Connections. For example, if the network party on Connection A is initially interacting with a dialog on Connection D (i.e., a full duplex bridge exists between them), all that is needed then is to do a <join> of Connection A to Connection B (the other network party) with duplex=full. This example highlights an important and subtle aspect of the behavior of <join> when one, or both, of the Connections being joined is already in one or more established bridges:

Note that <join> MUST NOT be used to add a Connection to an existing two-party bridge in order to create a 3-way Conference Instead, this functionality can be achieved by first using <createconference> to create a Conference object and then <join> ing all three Connections to this Conference. If a two-way bridge exists between A and B, and A is then <join> ed full duplex to C, the result will be a two-party bridge between A and C and a one-way bridge from A to B.

CCXML applications MUST only establish bridges on Connections (and Dialogs) that are owned by the session running that application. As such, a session cannot bridge a Connection that it owns to a Connection that is owned by another session, nor can it establish a bridge between two Connections owned by another session. Since Conferences are global, however, a session MAY bridge a Connection that it owns to any Conference

Asynchronous events are used to notify the CCXML application upon the completion of bridging operations performed by that application. Such events are also used to notify the application of changes to existing bridges that were not requested by the application - such as a <destroyconference> terminating a conference that a local connection has a bridge to. However, the execution of bridging operations and completion notification varies depending on how the bridging operation was performed:

10.4.1: <join> Outcomes

As an aid to understanding, the outcomes of all possible <join> operations are shown diagrammatically below for three different initial conditions:

  1. a single Connection A, that is not currently in a bridge, represented graphically as: (A)
  2. two Connections A and B, with a half duplex bridge (A output to B input), represented graphically as: A -----> B
  3. two Connections A and B, with a full duplex bridge (A output to B input & B output to A input), represented graphically as: A <====> B
For the initial condition in which a single Connection A is not currently in a bridge, there are four possible <join> s:

initially (A)(B)
join A to B half A <----- B
join A to B full A <====> B
join B to A half A -----> B
join B to A full A <====> B

For the initial condition in which a half duplex bridge exists from Connection A to Connection B (A output to B input), there are twelve possible <join> s:

initially A -----> B
join A to B half A <----- B
join A to B full A <====> B
join B to A half A -----> B
join B to A full A <====> B
join A to C half A -----> B & A <----- C
join A to C full A -----> B & A <====> C
join C to A half A -----> B & A -----> C
join C to A full A -----> B & A <====> C
join B to C half (A) & B <----- C
join B to C full (A) & B <====> C
join C to B half A -----> B & B -----> C
join C to B full (A) & B <====> C

For the initial condition in which a full duplex bridge exists between two Connections A and B (A output to B input & B output to A input), there are twelve possible <join> s:

initially A <====> B
join A to B half A <----- B
join A to B full A <====> B
join B to A half A -----> B
join B to A full A <====> B
join A to C half A -----> B & A <----- C
join A to C full A -----> B & A <====> C
join C to A half A <====> B & A -----> C
join C to A full A -----> B & A <====> C
join B to C half A <----- B & B <----- C
join B to C full A <----- B & B <====> C
join C to B half A <====> B & B -----> C
join C to B full A <----- B & B <====> C

In summary, <join> behavior always respects three invariants:

  1. The media stream relationship specified in the <join> is established between the two Connections/Conferences referenced in the <join>. In particular, any existing stream relationship between these two Connections/Conferences is torn down automatically if it conflicts with the specified relationship.
  2. If the relationship specified in the <join> requires a Connection to "listen" and the Connection is already listening to a different source, this existing stream relationship is torn down automatically.
  3. Any existing stream relationship that does not present a conflict according to invariant #1 or invariant #2 is preserved.

10.4.2: Invariant Examples

To illustrate some typical invocations of <join> invariants a few example scenarios are presented below. In the first scenario, connection c1 is bridged to a conference C1, via a <join> where the duplex mode is full.

After <join id1="'C1'" id2="'c1'" duplex="'full'">

Session object properties
session.connections['c1'].input == 'C1'
session.connections['c1'].outputs.length == 1
session.connections['c1'].outputs[0] == 'C1'
session.conferences['C1'].bridges['c1'] == 'c1'

invariant2-before

If c1 then became a participant in a <dialogstart> where d1 represents a connection to a dialog and the mediadirection is both, the original picture would change as follows:

After <dialogstart connectionid="'c1'" src="'example.vxml'" mediadirection="'both'">

session.connections['c1'].input == 'd1'
session.connections['c1'].outputs.length == 2
session.connections['c1'].outputs[0] == 'C1'
session.connections['c1'].outputs[1] == 'd1'
session.connections['c1'].dialogid == 'd1'
session.conferences['C1'].bridges['c1'] == 'c1'
session.dialogs['d1'].input == 'c1'
session.dialogs['d1'].outputs[0] == 'c1'
session.dialogs['d1'].outputs.length == 1

invariant2-after

The <dialogstart> required c1 to "listen" to d1, however, c1 was already in an established bridge listening to C1. Consequently, the full duplex bridge between c1 and C1 is changed to a half duplex, where c1 is not allowed to "listen" to C1 and a full duplex bridge is established between c1 and d1.

In this second scenario, c1 and c2 have been joined into a conference, C1.

After <join id1="'C1'" id2="'c1'" duplex="'full'">
and:  <join id1="'C1'" id2="'c2'" duplex="'full'">

session.connections['c1'].input == 'C1'
session.connections['c1'].outputs.length == 1
session.connections['c1'].outputs[0] == 'C1'
session.connections['c2'].input == 'C1'
session.connections['c2'].outputs.length == 1
session.connections['c2'].outputs[0] == 'C1'
session.conferences['C1'].bridges['c1'] == 'c1'
session.conferences['C1'].bridges['c2'] == 'c2'

invariant1-before

If a <join> is then executed that specifies c2 and C1 as participants and the duplex mode is half, the bridge between c2 and C1 will be re-established with C1 able to "listen" to c2, but c2 no longer able to "listen" to C1.

After <join id1="C1" id2="c2" duplex="'half'">

session.connections['c1'].input == 'C1'
session.connections['c1'].outputs.length == 1
session.connections['c1'].outputs[0] == 'C1'
session.connections['c2'].input == undefned
session.connections['c2'].outputs.length == 1
session.connections['c2'].outputs[0] == 'C1'
session.conferences['C1'].bridges['c1'] == 'c1'
session.conferences['C1'].bridges['c2'] == 'c2'

invariant1-after


In this third scenario, there are three connections c1, c2 and c3. Connections c1 and c2 are connected with a half duplex bridge, connection 3 is not bridged at this point.

After <join id1="'c1'" id2="'c2'" duplex="'half'">
Session object properties

session.connections['c1'].input == 'c2'
session.connections['c1'].outputs.length == 0

session.connections['c2'].input == undefined
session.connections['c2'].outputs.length == 1
session.connections['c2'].outputs[0] == 'c1'

session.connections['c3'].input == undefined
session.connections['c3'].outputs.length == 0

invariant3-before

A full bridge is established between connections c2 and c3, connection c1 is still receiving from c2.

After <join id1="'c2'" id2="'c3'" duplex="'full'">

session.connections['c1'].input == 'c2'
session.connections['c1'].outputs.length == 0

session.connections['c2'].input == 'c3'
session.connections['c2'].outputs.length == 2
session.connections['c2'].outputs[0] == 'c1'
session.connections['c2'].outputs[1] == 'c3'

session.connections['c3'].input == 'c2'
session.connections['c3'].outputs.length == 1
session.connections['c3'].outputs[0] == 'c2'

invariant3-after

10.4.3: Media Endpoint Properties

Connection and Dialog objects all have a common set of base properties relating to media input/output. The standard set of media endpoint properties are defined below:

Media Endpoint Properties Required Definitions
input true The identifier (connectiondid/conferenceid/dialogid) of the single media endpoint (connection, dialog or conference) providing the input stream to this media endpoint or undefined if there is no input stream. This property MUST be updated each time a <join>/<unjoin> or any other media operation changes the media source to this media endpoint.
If the media endpoint does not have a media source the value MUST be ECMAScript undefined.
For example the creation of a half duplex bridge
<join id1="con1" id2="con2" duplex="half" />
Result
session.connections[con1].input = "con2"
session.connections[con2].input = undefined
outputs true An array containing the identifiers of all media endpoints to which the output stream of this media endpoint is sent. If the media endpoint does not have any media destinations the length of the array MUST be 0.
For example the creation of a half duplex bridge
<join id1="con1" id2="con2" duplex="half" />
Result
session.connections[con1].outputs.length = 0
session.connections[con2].outputs.length = 1

10.5: Elements

10.5.1: <accept>

10.5.1.1: Overview

MUST The execution of an <accept> MUST cause the underlying platform to signal the telephony system to connect the specified Connection to the CCXML platform. The CCXML document MAY then initiate interactive dialog sessions with the incoming caller, or perform other telephony operations (e.g., place outgoing calls, join calls, etc).

10.5.1.2: <accept> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
connectionid false ECMAScript Expression comes from the event being processed Connection IDs An ECMAScript expression which returns a string that must be the identifier of a Connection on which the incoming call is signaled. If the connectionid attribute is omitted, the interpreter must accept using the id indicated in the current event being processed.
If the attribute value is invalid or there is no valid default value, an error.semantic event must be thrown.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform or passed to the network accepting the connection. This information may consist of protocol-specific parameters.
Note: The meaning of these hints is specific to the implementing platform and protocol.

10.5.2: <redirect>

10.5.2.1: Overview

When a CCXML document executes a <redirect> within the <transition> block, this MUST cause the underlying platform to signal the telephony system to send the call to a specified destination. The use of <redirect> is only valid when a call is in the ALERTING and CONNECTED states.

If the call is currently joined, it MUST be unjoined before the redirect is performed and a conference.unjoined event MUST be generated. Note the platform is not required to generate the conference.unjoined or connection.redirected in any particular order.

10.5.2.2: <redirect> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
connectionid false ECMAScript Expression comes from the event being processed Connection IDs An ECMAScript expression which returns a string that is the identifier of a Connection on which a call is active or on which an incoming call is being signaled. This call must be redirected. If the connectionid attribute is omitted, the interpreter must redirect using the id indicated in the current event being processed.
If the attribute value is invalid or there is no valid default value, an error.semantic event must be thrown.
dest true ECMAScript Expression none A Valid URL An ECMAScript expression which returns a string that is the address where the call should be redirected to. A platform MUST support a telephone URI, as described in [RFC2806] and MAY support other url schemes such as "sip:" or "h323:".
reason false ECMAScript Expression none An ECMAScript expression which returns a string that is the reason the call is being redirected.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform or passed to the network redirecting the connection. This information may consist of protocol-specific parameters.
Note: The meaning of these hints is specific to the implementing platform and protocol.

If the platform is unable to redirect the call this MUST result in the generation of an connection.redirect.failed event.

10.5.3: <reject>

10.5.3.1: Overview

The execution of an <reject> MUST cause the underlying platform to signal the telephony system to reject the incoming Connection from the platform.

10.5.3.2: <reject> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
connectionid false ECMAScript Expression comes from the event being processed Connection IDs An ECMAScript expression which returns a string that is the identifier of a Connection on which an incoming call is being signaled. This call must be rejected. If the connectionid attribute is omitted, the interpreter must reject using the id indicated in the current event being processed.
If the attribute value is invalid or there is no valid default value, an error.semantic event must be thrown.
reason false ECMAScript Expression none An ECMAScript expression which returns a string that is the reason the call is being rejected.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform or passed to the network rejecting the connection. This information may consist of protocol-specific parameters.
Note: The meaning of these hints is specific to the implementing platform and protocol.

10.5.4: <createcall>

10.5.4.1: Overview

A CCXML document is able to instruct the platform to attempt to place an outgoing call with <createcall>. This element MUST instruct the platform to allocate a Connection and attempt to place an outgoing call to a specified address. The CCXML interpreter MUST receive an asynchronous event when the call attempt is completed. An <eventprocessor> <transition> block can handle this event and perform further call control, such as conferencing. If the call was successfully placed, the transition block can also initiate a dialog interaction with the called party.

The execution of <createcall> MUST result in the generation of one or more connection.progressing events (depending on platform support for call progress) followed by a connection.connected event on success, or zero or more connection.progressing events followed by a connection.failed event on failure.

10.5.4.2: <createcall> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
dest true ECMAScript Expression none A Valid URL An ECMAScript expression which returns a string that is the target of the outbound telephone call. A platform MUST support a telephone URI, as described in [RFC2806] and MAY support other url schemes such as "sip:" or "h323:".
connectionid false ECMAScript Left Hand Side Expression none ECMAScript Variable An ECMAScript left hand side expression evaluating to a previously defined variable. The value of the attribute must receive the identifier of the Connection on which the outgoing call is attempted.
aai false ECMAScript Expression none An ECMAScript expression which returns a string of application-to-application information to be passed to the destination endpoint when establishing the connection.
Note: Even if an implementation platform accepts the aai data, certain protocols and network elements may prevent the transmission to the target endpoint. If the platform does not support the transmission of aai data it must raise a connection.progressing event and indicate that the use of aai is not supported.
callerid false ECMAScript Expression none An ECMAScript expression which returns a string defining the caller identity to be used when making the outbound connection. The format of this information is protocol and platform specific but might consist of a telephone URI, as described in [RFC2806] or a SIP URI as described in [RFC3261].
Note: An implementation platform is not required to use the specified data and certain protocols and network elements may prevent its use. If the platform does not support the specification of callerid it must raise a connection.progressing event and indicate that the use of callerid is not supported.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform when establishing the outbound connection. This information may consist of protocol-specific parameters, protocol selection guidelines, or routing hints.
Note: The meaning of these hints is specific to the implementing platform.
timeout false ECMAScript Expression none An ECMAScript expression which returns a character string in CSS2 [CSS2] format The character string returned is interpreted as a time interval. This interval begins when createcall is executed. The createcall must fail if not completed by the end of this interval. A completion is defined as the call getting to a CONNECTED state as signaled by a connection.connected event. A failed createcall must return the connection.failed event.
joinid false ECMAScript Expression none (valid connection, conference, or dialog ID) An ECMAScript expression that identifies a connection, conference, or dialog ID that the new call must be joined to. This is equivalent, from the perspective of the CCXML application, to performing a <join> immediately following the <createcall>. However, platforms may use knowledge about the connection/conference/dialog to which the new call will be connected to optimize the call creation process. If the attribute value is invalid an error.semantic event must be thrown.
joindirection false ECMAScript Expression both both
calltransmit
callreceive		 An ECMAScript expression that defines the direction of the media flow between the newly created connection, and the existing connection/conference/dialog referenced by joinid:
both
Specifes a full duplex connection where the media flows in both directions.
calltransmit
The new connection transmits media to the referenced connection/conference/dialog but does not receive any media streams.
callreceive
The new connection receives media from the referenced connection/conference/dialog but does not transmit any media streams.
10.5.4.3: <createcall> examples

The following example illustrates the simplest use of <createcall> .

<createcall dest="'tel:1235551234'"/>

This example illustrates the use of several attributes of <createcall>. A SIP URI is provided as the originators caller id, a selection of protocol specific parameters are provided (callingDevice and callCharacteristics) and a string of application specific data is provided to be presented to the remote endpoint. The connection id for the new connection is returned in the variable "myConidVar".

<var name="myConidVar"/>
<createcall
 dest="'sip:+1-212-555-1212:1234@gateway.com;'"
 callerid="'sip:j.doe@big.com'"
 connectionid="myConidVar"
 aai="'This is application specific data'"
 hints="{callingDevice: 'notSpecified', callCharacteristics: 'voiceUnitCall'}" />

10.5.5: <createconference>

10.5.5.1: Overview

A CCXML document can attempt to create or attach to a Conference Object using <createconference>. This element instructs the implementation to allocate a Conference Object using the specified options. The successful execution of <createconference> MUST result in the generation of a conference.created event. If for any reason the implementation is unable to create the Conference Object using the specified options it MUST fail with a error.conference.create event.

Since conferences are global in scope, it is possible that other sessions will establish or terminate bridges to a Conference created by an application. Sessions that have created or attached to a Conference using <createconference> receive notifications of any bridges that are created or destroyed, through the 'conference.joined' and 'conference.unjoined' events. However, if a session establishes or terminates a bridge between a Connection that it owns and a Conference that it has created/attached to, it will only receive one such event - not one event each for the Connection and for the Conference.

It is legal for a session to perform a <createconference> multiple times with the same value for the 'confname' parameter. The same conference ID will be returned in each case, allowing this to be used as a mechanism for looking up conference IDs.

10.5.5.2: <createconference> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
conferenceid true ECMAScript Left Hand Side Expression none ECMAScript Variable An ECMAScript left hand side expression evaluating to a previously defined variable. The value of the attribute must receive the conference identifier. A conference identifier must be globally unique, so that conferences can be uniquely addressed and possibly connected to. It must be in URI format.
confname false ECMAScript Expression none valid conference URL An ECMAScript expression which returns a string that is the name of the conference. The conference name corresponds to the conference identifier that will be returned in the variable specified in the conferenceid attribute.
If the named conference does not exist, the platform must create a conference object as requested and return the value of the conference identifier to the variable specified in the conferenceid attribute. If a conference already exists the platform must return the conference identifier of the previously created conference.
reservedtalkers false ECMAScript Expression none An ECMAScript expression which returns the number of guaranteed speaker slots the conference mixer must reserve. If the conference already exists, then this attribute must be ignored.
If the conference mixer is unable to reserve this many speaker slots, the createconference must fail with a error.conference.create event.
reservedlisteners false ECMAScript Expression none An ECMAScript expression which returns the number of guaranteed listener slots the conference mixer must reserve. If the conference already exists, then this attribute must be ignored.
If the conference mixer is unable to reserve this many listener slots, the createconference must fail with a error.conference.create event.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform when creating the conference.
Note: The meaning of these hints is specific to the implementing platform and the event processor.

10.5.6: <destroyconference>

10.5.6.1: Overview

A CCXML document is able to instruct the platform to attempt to detach from an existing Conference Object using <destroyconference>. This destroys the conference if no other sessions are attached to it. The target Conference Object is identified using the conferenceid attribute. The successful execution of <destroyconference> MUST result in the generation of a conference.destroyed event. If for any reason the implementation is unable to deallocate the Conference Object it MUST fail with a error.conference.destroy event.

Since other sessions may have created bridges to a conference using the conference's ID, but without performing a <createconference>, destroying a conference MAY affect the bridges established by other sessions. If any bridges are terminated in this fashion, a 'conference.unjoined' event MUST be posted to indicate to the session that its Connection is no longer bridged to the Conference.

The platform MUST implicitly tear down any existing bridges to the dialog and send a conference.unjoined to the CCXML document once the media paths have been freed.

10.5.6.2: <destroyconference> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
conferenceid true ECMAScript Expression none Conference IDs An ECMAScript expression which returns a string that is the identifier of the conference that must be destroyed.
If the attribute value is invalid an error.semantic event must be thrown.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform when destroying the conference.
Note: The meaning of these hints is specific to the implementing platform and the event processor.

10.5.7: <join>

10.5.7.1: Overview

A CCXML document can attempt to create a bridge between two connections, conferences, or dialogs using <join>. This element instructs the implementation to bridge the connections, conferences, or dialogs specified using the id1 and id2 attributes in accordance with media options specified by the other attributes of <join>. The successful execution of<join> MUST result in the generation of a conference.joined event. If either of the id's are invalid an error.semantic event MUST be thrown. If for any reason the implementation is unable to create the bridge using the specified options it MUST fail with a error.conference.join event.

Any Connections or Dialogs referenced by the 'id1' and 'id2' attributes of <join> MUST be owned by the session performing the <join>. If 'id1' or 'id2' refer to Conferences, then it is not necessary that the session has performed a <createconference> to create/attach to that conference; it is sufficient that it has a valid conference ID.

When joining a Connection or Dialog to a Conference, or when joining two Conferences, the 'conference.joined' event MUST be posted to all sessions that are attached to the affected Conference(s). This MUST NOT result in multiple 'conference.joined' events if the session performing the <join> is attached to the conference, nor if any session owns both conferences when two conferences are joined together. If the implementation is unable to join the objects an error.conference.join MUST only be sent to the session that issued the <join>.

Implementations MAY disallow two dialogs from being joined together. If both id1 and id2 specify dialogs and the platform does not support joining together two dialogs, then an error.conference.join event is thrown.

10.5.7.2: <join> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
id1 true ECMAScript Expression none (valid connection, conference, or dialog ID) An ECMAScript expression which returns a string that is the identifier of a Connection, Dialog or Conference.
If the attribute value is invalid an error.semantic event must be thrown.
id2 true ECMAScript Expression none (valid connection, conference, or dialog ID) An ECMAScript expression which returns a string that is the identifier of a Connection, Dialog or Conference.
If the attribute value is invalid an error.semantic event must be thrown.
duplex false ECMAScript Expression full full
half		 An ECMAScript expression that returns a character string equal to "half" or "full", which defines the direction of the media flow between id1 resource and id2 resource. Refer to the discussion of bridging in Section 10.4 . The duplex attribute determines whether the join must establish a half-duplex (unidirectional) or full-duplex (bi-directional) bridge. The following values can be used:
full
Specifies a full duplex bridge where the media flows in both directions.
half
Species a half duplex bridge where the media flows towards id1 resource, but no media flows from id1 resource to id2 resource.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform or passed to the network when the two specified Connections, Dialogs or Conferences (id1 and id2) are joined. This information may consist of protocol-specific parameters.
Note: The meaning of these hints is specific to the implementing platform and the underlying protocol.
entertone false ECMAScript Expression 'true' 'true'
'false'
A Valid URL		 An ECMAScript expression that returns a character string that must be used to play a tone or a custom wav file to the conference participants when this Connection joins. The following values can be used:
'true'
Setting this to 'true' must play the default system beep.
'false'
Setting this to 'false' must result in no alerting sound being played at all.
A Valid URL
The developer may also specify a URL value which points to a user-defined wav file to be played instead of the default system beep.
exittone false ECMAScript Expression 'true' 'true'
'false'
A Valid URL		 An ECMAScript expression that returns a character string that must be used to play a tone or a custom wav file to the conference participants when this Connection exits. The following values can be used:
'true'
Setting this to 'true' will play the default system beep.
'false'
Setting this to 'false' will result in no alerting sound being played at all.
A Valid URL
The developer may also specify a URL value which points to a user-defined wav file to be played instead of the default system beep.
autoinputgain false ECMAScript Boolean Expression true true
false		 An ECMAScript Boolean expression that tells the conference mixer if it must use AGC to determine the input gain for this leg. If a platform does not support AGC, it must ignore this attribute. The following values can be used:
true
AGC must be used to determine input gain for a leg.
false
AGC must not be used.
autooutputgain false ECMAScript Boolean Expression true true
false		 An ECMAScript boolean expression that tells the conference mixer if it must use AGC to determine the output gain for this leg. If a platform does not support AGC, it must ignore this attribute. The following values can be used:
true
AGC must be used to determine output gain for a leg.
false
AGC must not be used.
dtmfclamp false ECMAScript Boolean Expression true true
false		 An ECMAScript Boolean expression that tells the conference mixer if it must attempt to remove detected DTMF tones for this leg. If a platform does not support removal of DTMF tones, it must ignore this attribute. The following values can be used:
true
Conference mixer must attempt to remove detected DTMF tones.
false
Conference mixer must not attempt to remove any detected DTMF tones.
toneclamp false ECMAScript Boolean Expression true true
false		 An ECMAScript Boolean expression that tells the conference mixer if it must attempt to remove loud single-frequency tones from the audio stream for this leg. If a platform does not support removal of tones, it must ignore this attribute. The following values can be used:
true
Conference mixer must attempt to remove loud single-frequency tones.
false
Conference mixer must not attempt to remove any loud single-frequency tones.

10.5.8: <unjoin>

10.5.8.1: Overview

A CCXML document is able to instruct the platform to attempt to tear down a bridge between two existing connections, conferences, or dialogs using <unjoin>. This element instructs the implementation to tear down the bridge between two connections/conferences/dialogs specified using the id1 and id2 attributes. The successful execution of<unjoin> MUST result in the generation of a conference.unjoined event. If either of the id's are invalid an error.semantic event MUST be thrown. If for any reason the implementation is unable to terminate the bridge between the specified connections/conferences/dialogs, or if no such bridge exists, it MUST fail with a error.conference.unjoin event.

Any Connections or Dialogs referenced by the 'id1' and 'id2' attributes of <unjoin> MUST be owned by the session performing the <unjoin>.

When 'id1', 'id2', or both reference to a Conference, the 'conference.unjoined' event MUST be posted to all session that are attached to the affected Conference(s). This MUST NOT result in multiple 'conference.unjoined' events if the session performing the <unjoin> is attached to the conference, or if any session owns both conferences when two conferences are being unjoined. If the implementation is unable to unjoin the objects an error.conference.unjoin MUST only be sent to the session that issued the <unjoin>.

10.5.8.2: <unjoin> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
id1 true ECMAScript Expression none (valid connection, conference, or dialog ID) An ECMAScript expression which returns a string that is the identifier of a Connection, Dialog or Conference.
If the attribute value is invalid an error.semantic event must be thrown.
id2 true ECMAScript Expression none (valid connection, conference, or dialog ID) An ECMAScript expression which returns a string that is the identifier of a Connection, Dialog or Conference. All media streams between the two specified Connections, Dialogs or Conferences (id1 and id2 ) must be torn down.
If the attribute value is invalid an error.semantic event must be thrown.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform or passed to the network when the two specified Connections, Dialogs or Conferences (id1 and id2) are unjoined. This information may consist of protocol-specific parameters.
Note: The meaning of these hints is specific to the implementing platform and the underlying protocol.

10.5.9: <disconnect>

10.5.9.1: Overview

A CCXML document is able to instruct the platform to disconnect a Connection by using <disconnect> . The underlying platform MUST send the appropriate protocol messages to perform the disconnect, and send an asynchronous event to the CCXML document when the disconnect operation completes. A CCXML document may use <disconnect> to abandon an outbound connection created using <createcall> which has not yet entered the CONNECTED state. If <disconnect> is used to abandon an outbound call, it results in the generation of a 'connection.failed' event.

If the connection had been bridged when the <disconnect> request was made, the platform MUST tear down all bridges to the connection and send a conference.unjoined to the CCXML document once the media paths have been freed.

Note the platform is not required to generate the connection.disconnected /connection.failed or conference.unjoined in any particular order, unless an outbound call was abandoned in which case a connection.failed event MUST be generated.

10.5.9.2: <disconnect> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
connectionid false ECMAScript Expression comes from the event being processed Connection IDs An ECMAScript expression which returns a string that is the id of a call leg that must be disconnected. If the connectionid attribute is omitted, the interpreter must disconnect using the id indicated in the current event being processed.
If the attribute value is invalid or there is no valid default value, an error.semantic event must be thrown.
reason false ECMAScript Expression none An ECMAScript expression which returns a string that is the reason the call is being disconnected.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform or passed to the network disconnecting the connection. This information may consist of protocol-specific parameters.
Note: The meaning of these hints is specific to the implementing platform and protocol.

10.5.10: <merge>

10.5.10.1: Background

Many of the network environments in which a CCXML implementation may be expected to operate provide facilities by which two existing calls can be merged into a single call at the network level. The following diagram illustrates this for the case where user A has two independent calls with users B and C, and utilizes this functionality to merge the calls together:

Initial Call State Figure 1: Initial Call State State Following Merge Figure 2: State Following Merge

The diagram illustrates the call control connections, or sessions, that exist between users A, B, C and the network that connects them; the media streams between users is not shown on the above diagram and may differ from the path for call control that is shown. The media path between users may or may not be affected as a result of the merge, depending on the properties of the underlying network; typically any media streams to user A would be terminated since call control sessions between user A and the network are terminated.

There are many different implementations of the merging capabilities described above, across both PSTN and Voice-over-IP networks. Known implementations include the following:

Different implementations may also have different restrictions on when and how merge functionality can be used. Some implementations might allow calls that are alerting to be merged, whereas others might only operate on calls that are already in the connected state. In addition, some implementations might only be able to merge calls in which one of the calls is an outbound call that specifically identifies the associated inbound call when that outbound call is placed (via hints on <createcall>).

10.5.10.2: Overview

The <merge> element allows two calls being handled by a particular CCXML session to be merged together at the network level, if supported by the underlying network and CCXML platform.

If successful, the two referenced calls MUST be merged at the network level, and the connections to the CCXML platform associated with those calls MUST be terminated. A connection.merged event MUST be generated on each of the two calls affected by a merge. If the merge fails, then a single connection.merge.failed event MUST be thrown which identifies both of the connections against which the merge was performed.

The platform MUST implicitly tear down any existing bridges to the connections and send a conference.unjoined to the CCXML document once the media paths have been freed, except for the media path between the two connections being merged.

10.5.10.3: <merge> Attribute Details
Name Required Attribute Constraints Type Default Value Valid Values Description
connectionid1 true ECMAScript Expression none Connection IDs An ECMAScript expression which returns a string that is the identifier of the first connection that is to be merged. The order (connectionid1 vs. connectionid2) of the Connections does not matter.
If the attribute value is invalid an error.semantic event must be thrown.
connectionid2 true ECMAScript Expression none Connection IDs An ECMAScript expression which returns a string that is the identifier of the second connection that is to be merged.
If the attribute value is invalid an error.semantic event must be thrown.
hints false ECMAScript Expression none An ECMAScript expression that returns an ECMAScript object The ECMAScript object returned contains information which may be used by the implementing platform or passed to the network when merging the two connections. This information MAY consist of protocol-specific parameters.
Note: The meaning of these hints is specific to the implementing platform and the underlying protocol.

10.6: Events

10.6.1: Overview

This section defines the events related to telephony operations including events related to the call state, success and failure events for the various telephony operations.

Several of the events defined in this section are associated with the change in state of a Connection Object. For instance, the 'connection.connected' event causes a transition to the CONNECTED state. Platforms MUST perform updates to Connection Object state when events are dequeued by the EHIA before the <transition> selection process (and thus before execution of <transition> content). This is necessary such that conditional expressions on transitions, as well as executable content, can reference Connection Object state that is consistent with the event being processed

10.6.2: connection.alerting

This event MUST be emitted when the underlying telephony connection transitions to an ALERTING state or sends notification of call progress while the Connection Object is in the ALERTING state. This event is a transition to state ALERTING.

The fields of this event are:

Attribute Name Required Type Details
name true string connection.alerting
connectionid true string The ID of the Connection associated with this event.
protocol false string The platform protocol ID of the Connection protocol.
info false ECMAScript Object An object which provides additional platform or protocol dependent information.
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

Information provided by the protocol prior to connection is accumulated and stored with the identified Connection object. This information MAY be available when the connection.alerting event is delivered to the application. Any further information provided by the protocol prior to connection MAY be provided in subsequent connection.alerting events, and made available in the updated Connection object. Alternatively, this data MAY be delivered in connection.signal events, and made available in the updated Connection object. This behavior is platform dependent.

Call related information provided after connection MAY result in connection.signal events.

10.6.3: connection.progressing

This event MUST be emitted when the underlying telephony connection sends a notification of call progress while the Connection Object is in the PROGRESSING state. This event is a transition to state PROGRESSING.

The fields of this event are:

Attribute Name Required Type Details
name true string connection.progressing
connectionid true string The ID of the Connection associated with this event.
protocol false string The platform protocol ID of the Connection protocol.
info false ECMAScript Object An object which provides additional platform or protocol dependent information.
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

Subsequent connection.progressing events MAY be generated to support protocols which exchange multiple messages during the PROGRESSING state.

10.6.4: connection.connected

This event must be emitted when a call an incoming connection is accepted successfully, or as when an outgoing connection is answered. This event is a transition to state CONNECTED.

The fields of this event are:

Attribute Name Required Type Details
name true string connection.connected
connectionid true string The ID of the Connection associated with this event.
protocol false string The platform protocol ID of the Connection protocol.
info false ECMAScript Object An object which provides additional platform or protocol dependent information.
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

10.6.5: connection.disconnected

This event indicates the disconnection of a connection due to an action by the underlying network (e.g. the user hanging up), the CCXML platform, or the CCXML application. This event is a transition to state DISCONNECTED.

If this is an off-platform event, the platform MUST implicitly tear down any existing bridges to the connection and send a conference.unjoined to the CCXML document once the media paths have been freed.

The fields of this event are:

Attribute Name Required Type Details
name true string connection.disconnected
connectionid true string The ID of the Connection associated with this event.
protocol false string The platform protocol ID of the Connection protocol.
reason false string A disconnection reason code. Content of this field is platform-specific.
info false ECMAScript Object An object which provides additional platform or protocol dependent information.
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.
trigger true string Indicates which entity cause the disconnection to occur. Valid values are 'network' for network-initiated disconnections, 'platform' for disconnections triggered by platform-based rules (such as a maximum connection duration), or 'application' for disconnections performed as a result of application actions (such as execution of a <disconnect>).

10.6.6: connection.redirected

This event MUST be emitted to indicate a successful redirection of a connection. This event is a transition to state DISCONNECTED.

The fields of this event are:

Attribute Name Required Type Details
name true string connection.redirected
connectionid true string The ID of the Connection associated with this event.
protocol false string The platform protocol ID of the Connection protocol.
reason false string A redirect result code. Content of this field is platform-specific.
info false ECMAScript Object An object which provides additional platform or protocol dependent information.
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

10.6.7: connection.merged

This event MUST be emitted to indicate that a connection has been successfully merged with another connection at the network level, and is therefore disconnected from the CCXML application. This event is a transition to state DISCONNECTED.

The fields of this event are:

Attribute Name Required Type Details
name true string connection.merged
connectionid true string The ID of the Connection associated with this event, on which the merge succeeded.
mergeid true string The ID of the Connection with which the Connected referenced by this event was merged.
protocol false string The platform protocol ID of the Connection protocol.
info false ECMAScript Object An object which provides additional platform or protocol dependent information.
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

10.6.8: connection.failed

This event MUST be emitted when an incoming or outgoing call fails to complete its connection. This event is a transition to state FAILED.

The fields of this event are:

Attribute Name Required Type Details
name true string connection.failed
connectionid true string The ID of the Connection associated with this event.
protocol false string The platform protocol ID of the Connection protocol.
reason false string A failure reason code. Content of this field is platform-specific.
info false ECMAScript Object An object which provides additional platform or protocol dependent information.
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

10.6.9: error.connection

This event MUST be emitted if a platform operational error occurs on a connection which renders that connection unusable. This event is a transition to state ERROR.

If this is an off-platform event, the platform MUST implicitly tear down any existing bridges to the connection and send a conference.unjoined to the CCXML document once the media paths have been freed.

The fields of this event are:

Attribute Name Required Type Details
name true string error.connection
connectionid true string The ID of the Connection associated with this event.
protocol false string The platform protocol ID of the Connection protocol.
reason true string A description of the reason the operation failed. Content of this field is platform-specific.
info false ECMAScript Object An object which provides additional platform or protocol dependent information.
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

10.6.10: connection.signal

This event MUST be emitted when a Connection is notified of new data available when in the CONNECTED, PROGRESSING or ALERTING state. The fields of this event are:

Attribute Name Required Type Details
name true string connection.signal
connectionid true string The ID of the Connection associated with this event.
protocol false string The platform protocol ID of the Connection protocol.
info false ECMAScript Object An object which provides additional platform or protocol dependent information.
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

Examples where connection.signal could be generated include:

The data provided within the connection.signal event is protocol dependent. This data MAY be used to initiate a dialog (for example, if all REQUIRED information is now available), or to message other platform components.

Signaling delivered on the media stream after a successful <dialogstart> MAY not be available to the CCXML application. This behavior is platform dependent.

All available call setup information is provided in the Connection object when the first connection.alerting event is generated. Any further information provided by the protocol prior to connection MAY be provided in subsequent connection.alerting events, and made available in the updated Connection object. Alternatively, this data MAY be delivered in connection.signal events, and made available in the updated Connection object. This behavior is platform dependent.

Call related information provided after connection MUST result in connection.signal events.

The Connection Object MAY be updated with new or changed information as the result of a connection.signal event.

Section 10.6.11: conference.created

This event MUST be emitted when a conference has been successfully established using <createconference>. The fields of this event are:

Attribute Name Required Type Details
name true string conference.created
conferenceid true string The ID of the Conference associated with this event.
conference true ECMAScript Object An ECMAScript object reference to the Conference object identified by the conferenceid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

Section 10.6.12: conference.destroyed

This event MUST be emitted when a session detaches from a conference using <destroyconference>. Note that this does not imply that the underlying conference has necessarily been destroyed, since there may be other sessions attached to that conference. The fields of this event are:

Attribute Name Required Type Details
name true string conference.destroyed
conferenceid true string The ID of the Conference associated with this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

Section 10.6.13: conference.joined

This event MUST be emitted when two resources (which are connections or conferences) have been bridged using <join>. The fields of this event are shown below.

If a session receives a 'conference.joined' event because it is attached to a Conference, either 'id1' or 'id2' may refer to a Connection/Dialog owned by another session. Such identifiers are not locally meaningful to the session receiving the event (although they can still be used for logging or other purposes).

Attribute Name Required Type Details
name true string conference.joined
id1 true string The ID of the Connection, Conference or Dialog representing a resource associated with this event.
id2 true string The ID of the Connection, Conference or Dialog representing a resource associated with this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

Section 10.6.14: conference.unjoined

This event MUST be emitted when a bridge is torn down between two resources using <unjoin>.

A conference.unjoined MUST also be emitted when a bridge needs to be torn down before an element can be executed or when an event indicates the loss of a one end of a bridge, such as when processing <disconnect>, <redirect>, <dialogterminate>, <destroyconference> or <merge> elements or when receiving asynchronous events such as connection.disconnected, error.connection or error.dialog.

If a session receives a 'conference.unjoined' event because it is attached to a Conference, either 'id1' or 'id2' may refer to a Connection/Dialog owned by another session. Such identifiers are not locally meaningful to the session receiving the event (although they can still be used for logging or other purposes).

The fields of this event are:

Attribute Name Required Type Details
name true string conference.unjoined
id1 true string The ID of the Connection, Conference or Dialog representing a resource associated with this event.
id2 true string The ID of the Connection, Conference or Dialog representing a resource associated with this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

Section 10.6.15: error.conference.create

The processing associated with the <createconference> failed. The fields in this event are:

Attribute Name Required Type Details
name true string error.conference.create
conferenceid true string The ID of the affected conference.
reason true string A description of the reason the operation failed. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

Section 10.6.16: error.conference.destroy

The processing associated with the <destroyconference> failed. The fields in this event are:

Attribute Name Required Type Details
name true string error.conference.destroy
conferenceid true string The ID of the affected conference.
reason true string A description of the reason the operation failed. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

Section 10.6.17: error.conference.join

The processing associated with the <join> failed. The fields in this event are:

Attribute Name Required Type Details
name true string error.conference.join
id1 true string The ID of the Connection, Conference or Dialog representing a resource associated with this event.
id2 true string The ID of the Connection, Conference or Dialog representing a resource associated with this event.
reason true string A description of the reason the operation failed. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

Section 10.6.18: error.conference.unjoin

The processing associated with the <unjoin> failed. The fields in this event are:

Attribute Name Required Type Details
name true string error.conference.unjoin
id1 true string The ID of the Connection, Conference or Dialog representing a resource associated with this event.
id2 true string The ID of the Connection, Conference or Dialog representing a resource associated with this event.
reason true string A description of the reason the operation failed. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

10.6.19: connection.merge.failed

This event MUST be emitted when a <merge> attempt fails. This event MUST NOT change the state of either of the Connection Objects involved in the merge operation The fields of this event are:

Attribute Name Required Type Details
name true string error.merge
connectionid1 true string The ID of the first Connection identified when the merge was invoked.
connectionid2 true string The ID of the second Connection identified when the merge was invoked.
reason true string A description of the reason the merge failed. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

10.6.20: error.connection.wrongstate

This event MUST be emitted when an application attempts a telephony operation that is not legal for the current state of the Connection Object. Note that the Connection Object state is current as of the event currently being processed, but may not reflect events that are currently queued, or other events that occur before the request generated by an element is processed; therefore, not all failures caused by the state of the actual connection will result in error.connection.wrongstate. This event indicates that an application performed an action that it should know to be illegal, and generally reflects an incorrectly written application.

Attribute Name Required Type Details
name true string error.connection.wrongstate
connectionid true string The ID of the Connection associated with this event.
protocol false string The platform protocol ID of the Connection protocol.
reason true string A description of the reason the operation failed. Content of this field is platform-specific.
info false ECMAScript Object An object which provides additional platform or protocol dependent information.
connection true ECMAScript Object An ECMAScript object reference to the Connection object identified by the connectionid property of this event.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.
tagname true string This property must be set to the ECMAScript string value of the name of the element that produced the error (ie accept, reject, etc).

10.6.21: error.conference

This event MUST be emitted when an error occurs on a conference that a session has created or attached to, and signals the termination of the referenced conference. It is not necessary for applications to call <destroyconference> after receiving an error.conference event (in much the same way that it is not necessary to call <disconnect> upon receiving an error.connection event).

Attribute Name Required Type Details
name true string error.conference
conferenceid true string The ID of the affected conference.
reason true string A description of the reason the operation failed. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

10.6.22: connection.redirect.failed

This event MUST be emitted when an error occurs when there is an error redirecting a connection using the <redirect> element.

Attribute Name Required Type Details
name true string connection.redirect.failed
connectionid true string The ID of the first Connection identified when the redirect was invoked.
reason true string A description of the reason the redirect failed. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

10.6.23: connection.accept.failed

This event MUST be generated when a request to accept an incoming connection cannot be completed. This event MUST NOT change the state of the Connection Object.

Attribute Name Required Type Details
name true string connection.accept.failed
connectionid true string The ID of the first Connection identified when the accept was invoked.
reason true string A description of the reason the accept failed. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

10.6.24: connection.reject.failed

This event MUST be generated when a request to reject an incoming connection cannot be completed. This event MUST NOT change the state of the Connection Object.

Attribute Name Required Type Details
name true string connection.reject.failed
connectionid true string The ID of the first Connection identified when the reject was invoked.
reason true string A description of the reason the reject failed. Content of this field is platform-specific.
eventid true string The unique identifier for the event. This must match the sendid attribute of send, if the event was generated by a CCXML document.
eventsource true string The unique identifier of the event source. This identifies the Platform Event I/O Processor that sent this event.
eventsourcetype true string The name of the Event I/O Processor that sent this event. The value is platform dependent as this is an event generated by the Platform Event I/O processor.

11: Complex Examples

11.1: Calling Card Application

Caller calls an 800 number and after some interaction with an IVR system places an outbound call to a friend.

calling_card.ccxml

<?xml version="1.0" encoding="UTF-8"?>

<ccxml xmlns="http://www.w3.org/2002/09/ccxml" version="1.0">

  <!-- Create our ccxml level vars -->
  <var name="in_connectionid" expr="''" />
  <var name="out_connectionid" expr="''" />

  <!-- Set our initial state -->
  <var name="currentstate" expr="'initial'" />

  <eventprocessor statevariable="currentstate">
    <!-- Deal with the incoming call -->
    <transition state="initial" event="connection.alerting" >
      <assign name="in_connectionid" expr="event$.connectionid" />
      <accept connectionid="in_connectionid" />
    </transition>

    <transition state="initial" event="connection.connected">
      <assign name="currentstate" expr="'in_vxml_session'" />
      <!-- VoiceXML dialog is started on a separate thread - see pin.vxml -->
      <dialogstart namelist="session.id" connectionid="in_connectionid" src="'pin.vxml'" />
    </transition>

    <!-- happens when pin.vxml VoiceXML dialog thread exits -->
    <transition state="in_vxml_session" event="dialog.exit">
      <createcall dest="'tel:+' + event$.values.telnum" connectionid="out_connectionid" />
      <assign name="currentstate" expr="'calling'" />
    </transition>

    <transition state="calling" event="connection.failed">
      <!-- tell the caller there was a error -->
      <dialogstart namelist="session.id" connectionid="in_connectionid" src="'error.vxml'" />
      <assign name="currentstate" expr="'outb_failed'" />
    </transition>

    <!-- happens when called party picks up the phone -->
    <transition state="calling" event="connection.connected">
      <assign name="out_connectionid" expr="event$.connectionid" />
      <!-- tell the callee he is receiving a call -->
      <dialogstart namelist="session.id" connectionid="out_connectionid" src="'callee.vxml'" />
      <assign name="currentstate" expr="'outb_ready_to_join'" />
    </transition>

    <transition state="outb_failed" event="dialog.exit">
      <exit />
    </transition>

    <!-- happens when callee's vxml dialog (callee.vxml exits) -->
    <transition state="outb_ready_to_join" event="dialog.exit">
      <join id1="in_connectionid" id2="out_connectionid" />
      <assign name="currentstate" expr="'wtg_for_joined'" />
    </transition>

    <transition state="wtg_for_joined" event="ccxml.joined">
      <assign name="currentstate" expr="'active'" />
    </transition>

    <!-- Lets clean up the call  -->
    <transition state="active" event="connection.disconnected" >
      <if cond="event$.connectionid == in_connectionid">
        <disconnect connectionid="out_connectionid"/>
        <exit />
      </if>
      <assign name="currentstate" expr="'in_vxml_session'" />
      <!-- start VoiceXML dialog again to see
        if caller wants to make another call -->
      <dialogstart namelist="session.id" connectionid="in_connectionid" src="'pin.vxml'" />
    </transition>

    <!-- Catch disconnects in unexpected states -->
    <transition event="connection.disconnected">
      <exit />
    </transition>
  </eventprocessor>
</ccxml>

pin.vxml

<?xml version="1.0" encoding="UTF-8"?>

<vxml xmlns="http://www.w3.org/2001/vxml"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://www.w3.org/2001/vxml
   http://www.w3.org/TR/voicexml20/vxml.xsd"
   version="2.0">
  <form id="pin">
    <block> Welcome to Acme's Calling Card </block>
    <field name="pin" type="digits">
      <prompt> Please say your PIN number </prompt>
      <filled>
        <if cond="pin.length != 8">
          <clear namelist="pin"/>
        <else/>
          <submit next="checktime.asp" namelist="pin"/>
        </if>
      </filled>
    </field>
  </form>
</vxml>

error.vxml

<?xml version="1.0" encoding="UTF-8"?>

<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
  <form>
    <block>
       Sorry. The Party you are trying to call
       is unavailble.
       <exit/>
    </block>
  </form>
</vxml>

callee.vxml

<?xml version="1.0" encoding="UTF-8"?>

<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
  <form>
    <block>You have a call. Connecting</block>
  </form>
</vxml>

VXML page returned by checktime.asp

<?xml version="1.0" encoding="UTF-8"?>

<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
  <form id="form2">
    <!--.asp consults back-end database before filling this value-->
    <assign name="timeleft" expr="600"/>
    <block> Time remaining is <value expr="timeleft"/> seconds </block>
    <field name="telnum" type="digits" >
      <prompt> Please speak the telephone number you want to call including the country code.
             for example you would say <say-as interpret-as="characters">14075551234</say-as>
        </prompt>
      <filled>
          <exit namelist="telnum"/>
      </filled>
    </field>
  </form>
</vxml>

11.2: Conferencing application

Different callers call into a conference through an agreed upon telephone number. When each one of them joins the conference he is told how many people are there in the conference and those already in the conference are informed about a new entrant to the conference. Similarly when someone hangs up, the fact that a conference participant has exited is announced. A conference object is created at the beginning of the conference and is destroyed when all the participants have hung up.

First page to all callers

<?xml version="1.0" encoding="UTF-8"?>
<ccxml xmlns="http://www.w3.org/2002/09/ccxml" version="1.0">
        <var name="in_connectionid" expr="''" />
        <var name="currentstate" expr="'initial'" />

        <eventprocessor statevariable="currentstate">
                <transition state="initial" event="connection.alerting">
                        <assign name="currentstate" expr="'alerting'" />
                        <assign name="in_connectionid" expr="event$.connectionid" />
                        <accept connectionid="in_connectionid" />
                </transition>
                <transition state="alerting" event="connection.connected">
                        <assign name="currentstate" expr="'fetching'" />
                        <fetch next="'http://example.com/conference.asp'" namelist="in_connectionid" />
                </transition>
                <transition state="fetching" event="fetch.done" >
                        <goto fetchid="event$.fetchid" />
                </transition>
        </eventprocessor>
</ccxml>

CCXML page returned by conference.asp to first callers browser

<?xml version="1.0" encoding="UTF-8"?>
<ccxml xmlns="http://www.w3.org/2002/09/ccxml" version="1.0">
        <var name="conf_id" expr="''" />
        <var name="currentstate" expr="'starting'" />
        <var name="in_connectionid" expr="'0f0c0d@host1.com'" />
        <!-- above value is the value submitted to conference.asp-->

        <eventprocessor statevariable="currentstate">
                <transition state="starting" event="ccxml.loaded">
                        <createconference conferenceid="conf_id" />
                </transition>
                <transition state="starting" event="conference.created" >
                        <assign name="currentstate" expr="'fetching'" />
                        <fetch next="'http://example.com/conference.asp'" namelist="in_connectionid conf_id" />
                </transition>
                <transition state="fetching" event="fetch.done" >
                        <goto fetchid="event$.fetchid" />
                </transition>
        </eventprocessor>
</ccxml>

CCXML page returned by conference.asp to all subsequent callers

<?xml version="1.0" encoding="UTF-8"?>
<ccxml xmlns="http://www.w3.org/2002/09/ccxml" version="1.0">

        <var name="currentstate" expr="'ready_to_conf'" />
        <var name="in_connectionid" expr="'ff0d01@host2.com'" />
        <var name="conf_id" expr="'0a4602@host1.com'" />
        <!-- above values are the values submitted to conference.asp-->

        <eventprocessor statevariable="currentstate">
                <transition event="ccxml.loaded">
                        <dialogstart connectionid="in_connectionid" src="'vconference.asp'" />
                        <assign name="currentstate" expr="'announcing'" />
                </transition>
                <transition state="announcing" event="dialog.exit">
                        <join entertone="false" exittone="false" id1="conf_id" id2="in_connectionid" />
                </transition>
                <transition state="announcing" event="conference.joined">
                        <assign name="currentstate" expr="'active'" />
                        <dialogstart conferenceid="conf_id" src="'newcaller.vxml'" />
                </transition>
                <transition state="active" event="connection.disconnected">
                        <dialogstart conferenceid="conf_id" src="'leave.vxml'" />
                        <assign name="currentstate" expr="'fetching'" />
                        <fetch next="'http://example.com/teardown.asp'" namelist="in_connectionid conf_id" />
                </transition>
                <transition state="fetching" event="fetch.done">
                        <goto fetchid="event$.fetchid" />
                </transition>
        </eventprocessor>
</ccxml>

vconference.asp

<?xml version="1.0" encoding="UTF-8"?>
<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
        <form>
                <block>
                        Welcome to the W3C conference. There are already
                        <value expr="'3'" />
                        participants in the conference.
                        <!--above value is based on count kept by vconference.asp-->
                </block>
        </form>
</vxml>

newcaller.vxml

<?xml version="1.0" encoding="UTF-8"?>
<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
        <form>
                <block>
                        A new participant has entered the conference.
                </block>
        </form>
</vxml>

leave.vxml

<?xml version="1.0" encoding="UTF-8"?>
<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
        <form>
                <block>
                        Someone just left the conference.
                </block>
        </form>
</vxml>

CCXML page returned by teardown.asp to all but the last participant

<?xml version="1.0" encoding="UTF-8"?>
<ccxml xmlns="http://www.w3.org/2002/09/ccxml" version="1.0">
        <var name="currentstate" expr="'destroying'" />
        <var name="conf_id" expr="'0a4602@host1.com'" />
        <var name="in_connectionid" expr="'ff0d01@host2.com'" />
        <!-- above values are the values submitted to teardown.asp-->

        <eventprocessor statevariable="currentstate">
                <transition event="ccxml.loaded">
                        <exit />
                        <!-- just exit and destroy the session -->
                </transition>
        </eventprocessor>
</ccxml>

CCXML page returned by teardown.asp to last participant

<?xml version="1.0" encoding="UTF-8"?>
<ccxml xmlns="http://www.w3.org/2002/09/ccxml" version="1.0">

        <assign name="currentstate" expr="'destroying'" />
        <assign name="conf_id" expr="'0a4602@host1.com'" />
        <assign name="in_connectionid" expr="'ff0d01@host2.com'" />
        <!-- above values are the values submitted to teardown.asp -->

        <eventprocessor statevariable="currentstate">
                <transition event="ccxml.loaded">
                        <destroyconference conferenceid="conf_id" />
                        <exit />
                </transition>
        </eventprocessor>
</ccxml>

11.3: Personal Assistant

This program is a Personal Assistant that operates as an automated answering service.

A subscriber to this service would receive a phone number to the automated service. When a caller wants to talk to the subscriber, he calls the given number. This automated system asks who the caller is, and records the audio. Then the system calls the current number of the target person, and asks if the call should be connected.

If so, the calls are bridged. If not, then the original caller is warned and disconnected.

main.ccxml

<?xml version="1.0" encoding="UTF-8"?>
<ccxml xmlns="http://www.w3.org/2002/09/ccxml" version="1.0">
        <var expr="'initial'" name="currentstate" />
        <var name="in_connectionid" />
        <var name="dlg_onhold" />
        <var name="out_connectionid" />
        <var name="accepted" />

        <eventprocessor statevariable="currentstate">

                <transition event="connection.alerting"  state="initial">
                        <assign expr="event$.connectionid" name="in_connectionid" />
                        <accept />
                </transition>

                <transition event="connection.connected" state="initial">
                        <assign expr="'welcoming_caller'" name="currentstate" />
                        <dialogstart src="'welcome_message.vxml'" />
                </transition>

                <transition event="dialog.exit" state="welcoming_caller">
                        <!-- place the caller on hold -->
                        <dialogstart dialogid="dlg_onhold" connectionid="in_connectionid" src="'holdmusic.vxml'" />
                        <!-- Contact the target.  The number here is server-generated -->
                        <assign expr="'contacting_target'" name="currentstate" />
                        <createcall dest="'tel:+1-555-555-6666'" connectionid="out_connectionid" />
                </transition>

                <transition event="connection.connected" state="contacting_target">
                        <!-- Ask the target if (s)he would like to accept the call -->
                        <assign expr="'waiting_for_target_answer'" name="currentstate" />
                        <dialogstart src="'outbound_greetings.vxml'" />
                </transition>

                <transition event="dialog.exit"  state="waiting_for_target_answer">
                        <assign expr="event$.values.willaccept" name="accepted" />
                        <if cond="accepted == 'false'">
                                <!-- disconnect the called party (but still notify the other one) -->
                                <disconnect connectionid="out_connectionid" />
                        </if>
                        <assign expr="'stop_hold'" name="currentstate" />
                        <dialogterminate dialogid="dlg_onhold" />
                </transition>

                <transition event="dialog.exit"  state="stop_hold">
                        <if cond="accepted == 'false'">
                                <assign expr="'voice_mail'" name="currentstate" />
                                <dialogstart connectionid="in_connectionid" src="'vm.vxml'" />
                        <else />
                                <assign expr="'playing_connecting'" name="currentstate" />
                                <dialogstart connectionid="in_connectionid" src="'connecting.vxml'" />
                        </if>
                </transition>

                <transition event="dialog.exit" state="playing_connecting">
                        <join id1="in_connectionid" id2="out_connectionid" />
                        <assign expr="'talking'" name="currentstate" />
                </transition>

                <transition event="connection.disconnected" >
                        <if cond="event$.connectionid == in_connectionid">
                                <exit />
                        </if>
                </transition>
        </eventprocessor>
</ccxml>

welcome_message.vxml

<?xml version="1.0" encoding="UTF-8"?>
<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
        <form>
                <record name="recording">
                        <prompt>
                                You have reached the personal assistant for Bill Lumbergh of InnoTech.
                                If is about the new TPS format please call Dom Portwood to get the new cover sheet.

                                If this is for any other reason go on and state your name
                                and I will decide if I want to take your call.

                                Oh ya, if this is Milt, we're gonna need to go ahead and
                                move you downstairs into storage B. We have some new people
                                coming in, and we need all the space we can get. So if you
                                could go ahead and pack up your stuff and move it down there,
                                that would be terrific, OK

                        </prompt>
                        <filled>
                                OK, thanks.
                                <submit next="postRecordingAndExit.vxml" namelist="recording" />
                        </filled>
                </record>
        </form>
</vxml>

outbound_greetings.vxml

<?xml version="1.0" encoding="UTF-8"?>
<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
        <var name="willaccept"/>
        <form>
                <field id="answer">
                        <grammar src="yesnogrammar.grxml" />
                        <prompt>
                                Hi bill, you have a message from
                                <audio src="dynamicallyRecordedName.wav" />
                                Would you like to take it? Say Yes, or No.
                        </prompt>
                        <filled>
                                <if cond="answer=='yes'">
                                        Just a moment, please hold.
                                        <assign name="willaccept" value="true" />
                                        <exit namelist="willaccept" />
                                <elseif cond="answer==no" />
                                        OK, goodbye.
                                        <assign name="willaccept" value="false" />
                                        <exit namelist="willaccept" />
                                </if>
                        </filled>
                </field>
        </form>
</vxml>

vm.vxml

<?xml version="1.0" encoding="UTF-8"?>
<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
        <form>
                <prompt>
                        Transferring you to voice mail hell.
                </prompt>
                <block>
                        <goto next="voicemail.vxml" />
                </block>
        </form>
</vxml>

connecting.vxml

<?xml version="1.0" encoding="UTF-8"?>
<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
        <form>
                <prompt>
                        Just a moment, please hold...
                </prompt>
                <block>
                        <exit />
                </block>
        </form>
</vxml>

holdmusic.vxml

<?xml version="1.0" encoding="UTF-8"?>
<vxml xmlns="http://www.w3.org/2001/vxml" version="2.0">
        <form id="Form">
                <block>
                        <prompt bargin="false">
                                When a man loves a woman
                                Can't keep his mind on nothin' else
                                He'd trade the world
                                For a good thing he's found
                                If she is bad, he can't see it
                                She can do no wrong
                                Turn his back on his best friend
                                If he puts her down.
                        </prompt>
                        <goto next="holdmusic.vxml" />
                </block>
        </form>
</vxml>

CPL

The Call Processing Language (CPL) is an XML based language that can be used to describe and control Internet telephony services. Its focus is user scripting of call handling behavior for incoming calls. It is designed to be suitable for running on a server where users may not be allowed to execute arbitrary programs, and so is not Turing-complete.

The latest version of CPL can be found linked from the IETF IP Telephony (IPTEL) Working Group charter page.

CallXML

CallXML [CALLXML] is a markup language created by Voxeo Corporation that includes both voice and call-control functionality. CallXML is an XML based markup language used to describe the user interface of a telephone, voice over IP, or multi-media call application to a CallXML browser.

CallXML was designed to make it easy for Web developers to create applications that can interact with and control any number or type of calls, including:

For more information please see http://community.voxeo.com .

ECMA-CSTA

The description of CSTA [CSTA] from http://www.ecma-international.org/ is as follows:

"CSTA specifies an Applications Interface and Protocols for monitoring and controlling calls and devices in a communications network.

These calls and devices may support various media and can reside in various network environments such as IP, Switched Circuit Networks and mobile networks. CSTA however, abstracts various details of underlying signalling protocols (e.g. SIP/H.323) and networks for the applications."

The architecture of CCXML would allow a platform to be based on CSTA for the underlying telephony protocol while still providing the CCXML execution environment for ease of integration with voice browsers.

TXML

TXML (Telera's Extensible Markup Language) [TXML] is an XML based language designed by Genesys (formerly Telera) for remotely controlling the behavior of Point of Presence (POP) servers.

TXML provides the syntax for the XML Pages, which are generated at the customer's application at the premises and used by a POP server to execute actions on behalf of the customer's application. The XML Pages are simple ASCII text files that are either stored in a Web server's directory at the premises or generated by scripts at the premises server. The XMLPages are requested from the premises server via HTTP requests made by a client on the POP gateway.

The language includes elements for

Go here for more documentation.

SIP

SIP, the Session Initiation Protocol, [RFC3261] is a signaling protocol for Internet conferencing, telephony, presence, events notification and instant messaging. As a signaling protocol, SIP sits "below" the application description level of VoiceXML and CCXML. We expect many CCXML and VoiceXML browsers to support SIP signaling.

Appendix B - CCXML DTD

This section is Normative.

The CCXML DTD is located at http://www.w3.org/TR/ccxml/ccxml.dtd.

Appendix C - CCXML XML Schema

This section is Normative.

This appendix defines a normative XML Schema for CCXML. The CCXML schema is located at http://www.w3.org/TR/ccxml/ccxml.xsd.

Appendix D - VoiceXML 2.0 Integration Details

This section is Normative.

D.1 Overview

This section describes the details of how CCXML and VoiceXML 2.0 work together to provide dialog functionality in CCXML.

The CCXML application behaviors described below are guidelines and applications are not required to support the full set of VoiceXML interactions. Platforms however should support the events and methods specified below to allow CCXML applications to implement the behaviors documented in this Appendix.

Since HTTP is a stateless protocol, application servers typically use cookie-based and/or URL rewriting techniques to enable stateful interactions with the server. Authors should be aware that application servers employing cookie-based management techniques will view concurrently executing CCXML and VoiceXML applications as independent (the CCXML and VoiceXML cookie stores are independent). Authors wishing to correlate CCXML and VoiceXML data at the server can use URL rewriting or alternatively employ the CCXML sessionid variable together with the connectionid or conferenceid as a common, unique key across the CCXML and VoiceXML applications.

D.2 Events

CCXML and VoiceXML 2.0 need to be able to exchange events between the browsers. The method of the message passing is up to the platform but it is assumed that there is some basic capacity in place.

Each running CCXML session has an event queue used to process CCXML events, independently of VoiceXML event processing by the dialogs created by that CCXML session. The execution of certain CCXML elements, such as <dialogterminate> and <send>, may cause events to be sent to the VoiceXML browser; similar, certain VoiceXML elements such as <transfer> will result in the generation of dialog events delivered to the CCXML session that owns the dialog in question. The sections below define the event relationship between the CCXML and VoiceXML environments.

VoiceXML 2.0 provides limited capabilities for handling asynchronous or unexpected events. Since CCXML is designed around a robust event processing mechanism, and since the CCXML session manages connections to the underlying network, processing of asynchronous events - which may be delivered through externally accessible event I/O processors - typically occurs primarily within the CCXML application, which can then control the VoiceXML session as appropriate. The VoiceXML dialog can therefore focus exclusively on interaction with the user.

D.3 VoiceXML Session Variables

When a VoiceXML dialog is bridged to a connection with an associated call leg, the standard VoiceXML session variables obtain their values from the call leg. Otherwise, these variables are undefined. VoiceXML Session variables are updated whenever there is a update to the associated connection or conference. CCXML defines an additional read-only VoiceXML session variable called session.connection.ccxml with the following sub-properties:

session.connection.ccxml.sessionid
This variable evaluates to the CCXML Session ID to which the VoiceXML dialog is currently associated.
session.connection.ccxml.dialogid
This variable evaluates to the CCXML Dialog ID for the current dialog.
session.connection.ccxml.connectionid
This variable evaluates to the CCXML Connection ID to which the VoiceXML dialog is currently bridged. This variable is undefined if the dialog is not bridged to a connection.
session.connection.ccxml.conferenceid
This variable evaluates to the CCXML Conference ID to which the VoiceXML dialog is currently bridged. This variable is undefined if the dialog is not bridged to a conference.
session.connection.ccxml.values
This associative array contains the names and values of the parameters attribute supplied in a CCXML <dialogprepare> or <dialogstart> invocation.

D.4 CCXML <dialogprepare>

When a CCXML application processes a <dialogprepare> element it prepares a VoiceXML application with the URI that is passed in on the <dialogprepare> element.

Normally it is expected that a VoiceXML dialog environment will use the <dialogprepare> request as an opportunity to fetch the initial document indicated by the src and namelist attributes along with any referenced resources such as <audio>, <script>, and <grammar> elements marked as prefetchable.

Even if a VoiceXML dialog environment is unable to perform any useful preparation the CCXML implementation MUST support the <dialogprepare> element and deliver a dialog.prepared event in response. The implementation MUST as a minimum, note the values provided via the src, namelist, and connectionid attributes, create a Dialog object, and return a new unique value to the location defined by the dialogid attribute.

D.5 CCXML <dialogstart>

When a CCXML application processes a <dialogstart> element it starts up a VoiceXML application on the connection with the URI that is passed in on the <dialogstart> element or to the dialog that was prepared using <dialogprepare> and specified using the prepareddialogid attribute.

D.6 CCXML <dialogterminate>

When a CCXML application processes a <dialogterminate> it causes a "connection.disconnect.hangup" event to be thrown to the VoiceXML application. As far as the VoiceXML application knows the call was just disconnected. The VoiceXML application still has a chance to return data to the CCXML application by using <exit> in its <catch> statement.

D.7 VoiceXML <exit>

When a VoiceXML application processes a VoiceXML <exit> it will cause the VoiceXML application to exit and return the contents of the namelist attribute to the CCXML application in the "dialog.exit" event in the following form:

<exit namelist="foo bar jar"/>

maps into an event that looks like the following:

dialog.exit
           values.foo
           values.bar
           values.jar

and could be accessed in a CCXML Application like this:

<!-- Process the incoming call -->
<transition state="dialogActive" event="dialog.exit">
  <log expr="'Houston, the dialog foo: [' + event$.values.foo + ']'" />
  <log expr="'Houston, the dialog bar: [' + event$.values['bar'] + ']'" />
  <var name="xxx" expr="'jar'/>
  <log expr="'Houston, the dialog jar: [' + event$.values[xxx] + ']'" />
  <exit />
</transition>

If the VoiceXML application is returning data using the expr attribute the data will be stored in "values".

<!-- Process the incoming call -->
<transition state="dialogActive" event="dialog.exit">
  <log expr="'Houston, the dialog using expr [' + event$.values + ']'" />
  <exit />
</transition>

D.8 VoiceXML <disconnect>

When the VoiceXML application processes a <disconnect> element it causes a "dialog.disconnect" event to be thrown in the CCXML application. It is then up to the CCXML application to disconnect the call and sends back a "connection.disconnect.hangup" event by using the <dialogterminate> element. The following is an example of what would happen:

  1. The VoiceXML application executes a <disconnect>.
  2. As a result, the VoiceXML interpreter sends a disconnect event to CCXML.
  3. CCXML receives a "dialog.disconnect" event from the VoiceXML application. It interprets this as a request from the VoiceXML application to "please disconnect me".
  4. An eventprocessor in the CCXML document SHOULD have a <transition> element intended to handle the "dialog.disconnect" event.
  5. The CCXML application would have a <disconnect> element as the child of the transition event. This would disconnect the call.
  6. An eventprocessor in the CCXML document should have a <transition> element intended to handle the "connection.disconnected" event.
  7. The <transition> element has a child element which performs a <dialogterminate> on the dialog.

Here is the example CCXML code that completes the disconnect and returns the "connection.disconnect.hangup" event back to VoiceXML using <dialogterminate>:

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0" xmlns="http://www.w3.org/2002/09/ccxml">
  <var name="dialogid"/>

  <eventprocessor statevariable="mystate">
    <transition event="dialog.disconnect">
      <assign name="dialogid" expr="event$.dialogid"/>
      <disconnect connectionid="event$.connectionid" />
    </transition>

    <transition event="connection.disconnected" >
     <dialogterminate dialogid="dialogid"/>
    </transition>
  </eventprocessor>
</ccxml>

D.9 VoiceXML <transfer>

When a VoiceXML application processes a <transfer> element it is handled within CCXML via series of events between the VoiceXML platform and the CCXML application. The type of transfer is controlled in VoiceXML 2.0 by the bridge attribute. If the value of bridge is "true" this will come in with a transfer type of "bridge" and if the value is "false" it will have a type of "blind". Here is an example of the logic to support the VoiceXML 2.0 transfer types:

dialog.transfer.complete

This event MUST be sent from the CCXML application to the Dialog which uses this to fill transfer results (i.e. for VoiceXML platforms to fill field item results). The <send> attributes used to send this event are:

Attribute Name Required Type Details
target true string dialogid of the dialog thats transfer is complete
targettype true string dialog
sendid false string Optional sendid
delay false string Optional delay
name true string dialog.transfer.complete
namelist true string results object with the value of the transfer field to be filled in

An example of this send element is below:

<var name="results" expr="'near_end_disconnect'">
<send name="'dialog.transfer.complete'"
    target="dialogid"
    targettype="'dialog'"
    namelist="results" />

dialog.terminatetransfer

The VoiceXML interpreter is responsible for throwing this event when a "hotword" grammar is matched while performing a bridged transfer.

D.10 User Disconnect

When a caller hangs up on one of the connections the VoiceXML dialog is not automatically disconnected. The CCXML application then needs to send a "connection.disconnect.hangup" event to the VoiceXML application by using the <dialogterminate> element so it can complete any cleanup that is required. The VoiceXML application can then still return data to the CCXML application by using the VoiceXML <exit> element.

D.11 VoiceXML 2.0 Example

The following example code shows how you would duplicate the standard VoiceXML 2.0 Interpreter Context in a CCXML Application. This example is not meant to be a complete application and does not handle all error events but is rather meant to give an overview of what such an application may look like.

You may also download the source of this application.

<?xml version="1.0" encoding="UTF-8"?>
<ccxml version="1.0">

    <!-- Declare the vars we are going to use -->
    <var name="in_connectionid" />
    <var name="out_connectionid" />
    <var name="dialogid" />
    <var name="vxml_maxtime"/>
    <var name="URI"/>
    <var name="maxtime_sendid"/>
    <var name="results"/>

    <!-- Set an initial state -->
    <var name="mystate" expr="'init'"/>

    <eventprocessor statevariable="mystate">

        <!--
           - Deal with an incoming call
         -->
        <transition state="init" event="connection.alerting">
            <!-- Save off the connection id -->
            <assign name="in_connectionid" expr="event$.connectionid" />
            <accept connectionid="event$.connectionid"/>
        </transition>

        <!--
           - Call is connected so lets start the dialog
         -->
        <transition state="init" event="connection.connected">
            <dialogstart connectionid="event$.connectionid"
                src="http://www.example.com/dialog.vxml"
                dialogid="dialogid"/>
            <assign name="mystate" expr="'connected'" />
        </transition>

        <!--
           - Dialog is active
         -->
        <transition state="connected" event="dialog.started">
            <assign name="mystate" expr="'dialogActive'" />
        </transition>

        <!--
           - Dialog requests that we disconnect the call
         -->
        <transition state="dialogActive" event="dialog.disconnect">
            <disconnect connectionid="event$.connectionid" />
            <assign name="mystate" expr="'disconnecting'" />
        </transition>

        <!--
           - We have disconnected the call. We need to send an
           - event to the dialog saying we are done.
          -->
        <transition state="disconnecting" event="connection.disconnect">
            <send name="'connection.disconnect.hangup'"
                target="dialogid"
                targettype="'dialog'"/>
        </transition>

        <!--
           - Dialog has exited after we disconnected the call.
           - We just are going to exit from this CCXML session...
          -->
        <transition state="disconnecting" event="dialog.exit">
            <exit/>
        </transition>

        <!--
           - The caller disconnected. We need to send the event up to
           - the Dialog and change our state.
          -->
        <transition state="dialogActive"
                    event="connection.disconnect">
            <dialogterminate dialogid="dialogid"/>
            <assign name="mystate" expr="'userDisconnect'" />
        </transition>

        <!--
           - Dialog has exited after the caller hungup.
           - We just are going to exit from this CCXML session...
          -->
        <transition state="userDisconnect" event="dialog.exit">
            <exit/>
        </transition>


        <!--
           -
           - Handle a transfer request from a VXML script.
           -
         -->
        <transition state="dialogActive" event="dialog.transfer">
            <!-- Branch on transfer type -->
            <if cond="event$.type == 'blind'">
                <!-- Bridge == false. We are going to just redirect the call -->

                <!-- Update our state var -->
                <assign name="mystate" expr="'redirecting'" />

                <!-- And redirect to the uri specified in the event -->
                <redirect connectionid="in_connectionid" dest="event$.URI" />

                <!-- Just send the success event to the dialog -->
                <send name="'connection.disconnect.transfer'"
                    target="dialogid"
                    targettype="'dialog'"/>

            <else/>
                <!-- Bridge == true. In this case we need to
                     place a call and bridge the calls -->

                <!-- save off maxtime -->
                <assign name="vxml_maxtime" expr="event$.maxtime" />

                <!-- Update our state var -->
                <assign name="mystate" expr="'calling'" />

                <!-- Place the call using the values from the transfer request -->
                <assign name="URI" expr="event$.URI" />
                <createcall dest="event$.URI"
                    connectionid="out_connectionid"
                    aai="event$.aai"
            timeout="event$.connecttimeout"/>
            </if>
        </transition>


        <!--
           - We will get the following events but we do not do anything
           - because in VoiceXML 2.0 you just ignore redirect errors.
           - We do however process the dialog.exit and shutdown
           - the CCXML Session.
         -->
        <transition state="redirecting"
                    event="connection.redirected">
        </transition>
        <transition state="redirecting" event="connection.failed">
        </transition>
        <transition state="redirecting" event="dialog.exit">
            <exit/>
        </transition>


        <!--
           -
           - Handle bridge=true Events
           -
           - This first event is for if the outbound call failed.
           -
        -->
        <transition state="calling" event="connection.failed">
            <!-- Just send the error event to the dialog -->
            <assign name="results" expr="event$.reason"/>
            <send name="'dialog.transfer.complete'"
                target="dialogid"
                targettype="'dialog'"
                namelist="results" />

            <!-- Update our state var back to the original state -->
            <assign name="mystate" expr="'dialogActive'" />
        </transition>

        <!--
           - The outbound call has been answered.
         -->
        <transition state="calling" event="connection.connected">
            <!-- Update our state var back to show that we are connected -->
            <assign name="mystate" expr="'outgoing_call_active'" />
            <!-- Unjoin the calls before it can be connected to other call -->
            <unjoin id1="in_connectionid" id2="dialogid" duplex="full" />
        </transition>


         <!--
           - Now connecte the outbound.
         -->
    <transition state="outgoing_call_active" event="conference.unjoined">
            <!-- Join the two calls together -->
            <join id1="in_connectionid" id2="out_connectionid" duplex="full" />
        </transition>

        <!--
           - We will get here once the join completes.
         -->
        <transition state="outgoing_call_active"
                    event="conference.joined">
            <!-- If maxtime has been set then we setup a timer -->
            <if cond="vxml_maxtime != null">
                <send name="'vxml_maxtime'"
                    target="session.id"
                    delay="vxml_maxtime"
                    sendid="maxtime_sendid"/>
            </if>
        </transition>

        <!--
           - Deal with someone disconnecting.
         -->
        <transition state="outgoing_call_active"
                    event="connection.disconnected">

            <!-- Cancel any maxtime events that are waiting to be fired -->
            <if cond="maxtime_sendid != null">
                <cancel sendid="maxtime_sendid"/>
                <assign name="maxtime_sendid" expr="null"/>
            </if>

            <!-- Branch off based on what call leg this is for and send
                 the proper event to the dialog -->
            <if cond="event$.connectionid == out_connectionid">
                <assign name="results" expr="'far_end_disconnect'" />
                <send name="'dialog.transfer.complete'"
                    target="dialogid"
                    targettype="'dialog'"
                    namelist="results" />

                <!-- Update our state var back to the original state -->
                <assign name="mystate" expr="'dialogActive'" />

            <else />
                <!-- Set our state to show that the
                     original caller is disconnected. -->
                <assign name="mystate" expr="'userDisconnect'" />
                <dialogterminate dialogid="dialogid"/>
            </if>

        </transition>

        <!--
           - Deal with a "hotword" type event where the dialog
           - requests that we stop the transfer.
         -->
        <transition state="outgoing_call_active"
                    event="dialog.terminatetransfer">

            <!-- Change our state to show we are dealing with hotword stuff -->
            <assign name="mystate" expr="'hotword'" />

            <!-- Cancel any maxtime events that are waiting to be fired -->
            <if cond="maxtime_sendid != null">
                <cancel sendid="maxtime_sendid"/>
                <assign name="maxtime_sendid" expr="null"/>
            </if>

            <!-- unjoin our connections -->
            <unjoin id1="in_connectionid" id2="out_connectionid"/>

        </transition>

        <!--
           - Calls have been unjoined.
         -->
        <transition state="hotword" event="conference.unjoined">
            <!-- Rejoin the first connection to the dialog -->
            <join id1="in_connectionid" id2="dialogid"/>

            <!-- Disconnect the outbound call -->
            <disconnect connectionid="out_connectionid"/>
        </transition>

        <!--
           - Send an event to the dialog once we are all back together again.
         -->
        <transition state="hotword" event="conference.joined">

            <!-- Build up our event -->
            <assign name="results" expr="'near_end_disconnect'" />
            <send name="'dialog.transfer.complete'"
                target="dialogid"
                targettype="'dialog'"
                namelist="results" />

            <!-- Update our state var back to the dialogActive state -->
            <assign name="mystate" expr="'dialogActive'" />
        </transition>


        <!--
           - Deal with connection.disconnect events in the hotword state.
           - We are only going to deal with stuff if the event is
           - for the incoming call.
         -->
        <transition state="hotword" event="connection.disconnect">
            <if cond="event$.connectionid == in_connectionid">
                <dialogterminate dialogid="dialogid"/>
                <!-- Update our state var to the userDisconnect state -->
                <assign name="mystate" expr="'userDisconnect'" />
            </if>
        </transition>


        <!--
           - Deal with the maxtime event during a call transfer.
           - Should this happen we just disconnect the outbound call leg
           - and get back to the dialogActive state.
           -
           - Step one is to disconnect the call...
         -->
        <transition state="outgoing_call_active"
                    event="vxml_maxtime">
            <assign name="maxtime_sendid" expr="null"/>

            <assign name="mystate" expr="'maxtime'" />
            <disconnect connectionid="out_connectionid"/>
        </transition>

        <!--
           - Once we have the disconnect event we verify that we
           - got it for the outbound call and rejoin the dialog to the
           - inbound call. If the inbound call disconnected
           - we are going to go on and forward the event along
           - and wait for the dialog to exit.
           -
         -->
        <transition state="maxtime" event="connection.disconnected">
            <if cond="event$.connectionid == out_connectionid">
                <join id1="dialogid" id2="in_connectionid"/>
            <else />
                <dialogterminate dialogid="dialogid"/>
            </if>
        </transition>

        <!--
           -
           - We are rejoined. Update our state and send the transfer
           - event back to the dialog.
           -
         -->
        <transition state="maxtime" event="conference.joined">
            <!-- Update our state var back to the dialogActive state -->
            <assign name="mystate" expr="'dialogActive'" />

            <assign name="results" expr="'maxtime_disconnect'" />
            <send name="'dialog.transfer.complete'"
                target="dialogid"
                targettype="'dialog'"
                namelist="results" />
        </transition>

        <!--
           - Dialog has exited while we were in a hotword state.
           - We just are going to exit from this CCXML session...
          -->
        <transition state="maxtime" event="dialog.exit">
            <exit/>
        </transition>


        <!--
           -
           - Deal with any extra random events that may come in.
           -
         -->

        <!--
           - Make sure that we deal with any extra dialog events
           - by ending the session. A real ccxml app would do something
           - better here.
         -->
        <transition event="dialog.*">
            <exit/>
        </transition>

        <!--
           - And do the same for any exit events.
         -->
        <transition event="error.*">
            <exit/>
        </transition>

        <!--
           - And last but not least catch any connection.disconnect
           - events that made it past us.
         -->
        <transition event="connection.disconnect">
            <exit/>
        </transition>


    </eventprocessor>
</ccxml>

Appendix E - Telephony Protocol Names

Overview

This section defines a list of recommended telephony protocol names to be used in CCXML platforms within the connection event objects (See 10.2.3: Connection Events). Platforms MUST use the following list when available. If the protocol is not defined in this list the platform MUST prefix the name with an underscore, "_", to identify them as platform-dependent.

Protocol names

Protocol Name Details
sip Session initiation protocol [RFC3261].
h323 ITU H.323 Voice over IP protocol [ H.323 ].
q931 ISDN q.931 call control [ Q.931/DSS1 ].
ss7 Signaling System 7 [ SS7 ].
csta ECMA Computer Supported Telecommunications Applications [ CSTA ].
pots Plain Old Telephone Service.
cas Channel Associated Signaling.

Appendix F - Changes

Changes in Working Draft 2

Changes in Working Draft 3

Changes in Last Call Working Draft

Changes in Last Call Working Draft 2

Changes in Last Call Working Draft 3

Changes in Working Draft 7

Appendix G - Acknowledgments

This version of CCXML was written with the participation of members of the W3C Voice Browser Working Group, and a special thanks is in order for the following contributors:

David Attwater, BTexact Technologies
RJ Auburn, Voxeo Corporation
Eric Burger, Snowshore
David Burke, VoxPilot
Emily Candell, Comverse
Ken Davies, Hey Anita
Rajiv Dharmadhikari, Genesys
Dave Donnelly, BTexact Technologies
Daniel Evans
Mike Galpin, Syntellect
Markus Hahn
Jeff Haynie, Vocalocity
David W Heileman, Unisys
Gadi Inon
Rob Marchand, Genesys
Scott McGlashan, Hewlett-Packard
Rachel Muller, Aspect
Paolo Baggia, Loquendo
Brad Porter, TellMe Networks
Kenneth Rehor, Vocalocity
Dave Renshaw, IBM
Mark Scott, Genesys
Saravanan Shanmugham, Cisco
Scott Slote, Nortel Networks
Govardhan Srikant, Nortel Networks
Jim Trethewey, Intel
Wai-Yip Tung, Cisco

This W3C specification is based upon a former CCXML specification, contributed to the Voice Browser Working Group in April 2001. The CCXML authors were:

RJ Auburn, Voxeo Corporation
Michael Cafarella, TellMe
Don Jackson, TellMe
Jeff Peck, Intel
Pramod Sharma, Telera
Saravanan Shanmughan, Cisco Systems
Corey Stohs, Cisco Systems
Yi Zhang, Telera

Appendix H - References

[CSTA]
" Services for Computer Supported Telecommunications Applications (CSTA) Phase III ", Standard Ecma-269, 2002.
See http://www.ecma-international.org/publications/standards/Ecma-269.htm
[IANA]
" IANA Character Sets ", IANA.
See http://www.iana.org/assignments/character-sets
[JSR021]
" JAIN Call Control ", JSR 000021, 2001.
See http://www.jcp.org/aboutJava/communityprocess/final/jsr021/
[MIME-TAG]
Client handling of MIME headers, Ian Jacobs (Editor) W3C TAG Finding 09 July 2003. Available at http://www.w3.org/2001/tag/doc/mime-respect.html
[RFC2119]
Key words for use in RFCs to Indicate Requirement Levels, S. Bradner Network Working Group RFC2119 March 1997. Available at http://www.rfc-editor.org/rfc/rfc2119.txt.
[RFC3261]
" SIP: Session Initiation Protocol ", IETF RFC 3261, 2002.
See http://www.ietf.org/rfc/rfc3261.txt
[RFC2806]
" URLs for Telephone Calls ", IETF RFC 2806, 2000.
See http://www.ietf.org/rfc/rfc2806.txt
[S.100]
" S.100 ", ECTF.
See http://www.comptia.org/sections/ectf/media_services.aspx
[SALT]
Speech Application Language Tags (SALT) 1.0 Specification, Cisco Systems Inc., Comverse Inc., Intel Corporation, Microsoft Corporation, et al. The SALT Forum, 15 July 2002. Available at http://www.saltforum.org/saltforum/downloads/SALT1.0.pdf.
[VOICEXML]
Voice Extensible Markup Language (VoiceXML) Version 2.0 , Scott McGlashan, Daniel C. Burnett, Jerry Carter, et al. W3C Candidate Recommendation 20 February 2003. Available at http://www.w3.org/TR/voicexml20/
[XML]
" Extensible Markup Language (XML) 1.0 ". Bray et al. W3C Recommendation.
See http://www.w3.org/TR/2000/REC-xml-20001006
[Q.931/DSS1]
" ITU-T Recommendation Q.931 ", ISDN user-network interface layer 3 specification (5/98).
See http://www.itu.int/rec/recommendation.asp?type=folders&lang=e&parent=T-REC-Q.931
[SS7]
" ITU-T Recommendations Q.700-775 ", Signalling System No. 7 (3/93).
See http://www.itu.int/rec/recommendation.asp?type=items&lang=e&parent=T-REC-Q.700-199303-I
[ECMAScript]
" ECMAScript Language Specification ", Standard Ecma-262, 1999.
See http://www.ecma-international.org/publications/standards/Ecma-262.htm
[ECMA327]
"ECMAScript 3rd Edition Compact Profile", Standard Ecma-327, 2001.
See http://www.ecma-international.org/publications/standards/Ecma-327.htm
[XMLNS]
" Namespaces in XML ", World Wide Web Consortium, W3C Recommendation.
See href="http://www.w3.org/TR/REC-xml-names/ .
[XML-BASE]
" XML Base ", J. Marsh, editor, W3C Recommendation, June 2001.
See http://www.w3.org/TR/2001/REC-xmlbase-20010627/ .
[HTML]
" HTML 4.01 Specification ", Dave Raggett et al. W3C Recommendation, December 1999.
See http://www.w3.org/TR/1999/REC-html401-19991224/ .
[RDF-SYNTAX]
" Resource Description Framework (RDF) Model and Syntax Specification. ", Ora Lassila and Ralph R. Swick, W3C Recommendation, February 1999.
See http://www.w3.org/TR/1999/REC-rdf-syntax-19990222/ .
[RDF-SCHEMA]
" Resource Description Framework (RDF) Schema Specification 1.0. ", Dan Brickley and R.V. Guha, W3C Candidate Recommendation, March 2000.
See http://www.w3.org/TR/2000/CR-rdf-schema-20000327/ .
[DC]
" Dublin Core Metadata Element Set, Version 1.1: Reference Description ", See http://dublincore.org/documents/dces/ .
[SCHEMA2]
XML Schema Part 2: Datatypes, P.V. Biron and A. Malhotra, Editors. World Wide Web Consortium, 2 May 2001. This version of the XML Schema Part 2 Recommendation is http://www.w3.org/TR/2001/REC-xmlschema-2-20010502/. The latest version of XML Schema 2 is available at http://www.w3.org/TR/xmlschema-2/.
[RFC2396]
Uniform Resource Identifiers (URI): Generic Syntax, T. Berners-Lee et al., Editors. IETF, August 1998. This RFC is available at http://www.ietf.org/rfc/rfc2396.txt.
[RFC2732]
Format for Literal IPv6 Addresses in URL's, R. Hinden, et al., Editors. IETF, December 1999. This RFC is available at http://www.ietf.org/rfc/rfc2732.txt.
[RFC3023]
XML Media Types, M. Murata, et al., Editors. IETF, January 2001 This RFC is available at http://www.ietf.org/rfc/rfc3023.txt
[CSS2]
Cascading Style Sheets, level 2: CSS2 Specification, B. Bos, et al., Editors. World Wide Web Consortium, 12 May 1998. This version of the CSS2 Recommendation is http://www.w3.org/TR/1998/REC-CSS2-19980512/. The latest version of CSS2 is available at http://www.w3.org/TR/REC-CSS2/.
[RFC2119]
" Key words for use in RFCs to Indicate Requirement Levels ", IETF RFC 2119, 1997.
See http://www.ietf.org/rfc/rfc2119.txt
[H.323]
" ITU-T Recommendation H.323 ", Packet-based multimedia communications systems (7/03).
See http://www.itu.int/rec/recommendation.asp?type=items&lang=e&parent=T-REC-H.323-200307-P
[CALLXML]
CallXML 1.0, Voxeo Corporation, October 1999.
[TXML]
Telera Extensible Markup Language, Telera.
[RFC2616]
" Hypertext Transfer Protocol -- HTTP/1.1 ", IETF RFC 2616, 1999.
See http://www.ietf.org/rfc/rfc2616.txt
[RFC2617]
HTTP Authentication: Basic and Digest Access Authentication , IETF RFC 2617, June 1999. See http://www.ietf.org/rfc/rfc2617.txt.
[RFC2109]
HTTP State Management Mechanism , IETF RFC 2109, February 1997. See http://www.ietf.org/rfc/rfc2109.txt.
[RFC4267]
The W3C Speech Interface Framework Media Types: application/voicexml+xml, application/ssml+xml, application/srgs, application/srgs+xml, application/ccxml+xml, and application/pls+xml, Max Froumentin, Editor. IETF, November 2005. This RFC is available at http://www.ietf.org/rfc/rfc4267.txt.

Appendix J - Conformance

This section is Normative.

J1. Conforming CCXML Document

A document is a Conforming CCXML Document if it meets all of the following conditions:

It is recommended that the <ccxml> element indicate the location of the CCXML schema (see Appendix C) via the xsi:schemaLocation attribute from [SCHEMA2]:

xsi:schemaLocation="http://www.w3.org/2002/09/ccxml http://www.w3.org/TR/ccxml/ccxml.xsd"

There may be a DOCTYPE declaration in the document prior to the root element. If present, the public identifier included in the DOCTYPE declaration must reference the CCXML DTD (Appendix B) using its Formal Public Identifier:

<!DOCTYPE ccxml PUBLIC "-//W3C//DTD CCXML 1.0//EN" "http://www.w3.org/TR/ccxml/ccxml.dtd">

The system identifier may be modified appropriately. The DTD subset must not be used to override any parameter entities in the DTD.

Here is an example of a Conforming CCXML Document:

<?xml version="1.0" encoding="UTF-8"?>

<ccxml version="1.0" xmlns="http://www.w3.org/2002/09/ccxml"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://www.w3.org/2002/09/ccxml http://www.w3.org/TR/ccxml/ccxml.xsd">

  <eventprocessor>
    <transition event="connection.alerting">
      <log expr="'Hello World'"/>
      <exit/>
    </transition>
  </eventprocessor>

</ccxml>

Note that in this example, the recommended xmlns:xsi and xsi:schemaLocation attributes are included. Note also, the inclusion of an XML declaration. An XML declaration like the one above is not required in all XML documents. CCXML document authors are strongly encouraged to use XML declarations in all their documents. Such a declaration is required when the character encoding of the document is other than the default UTF-8 or UTF-16 and no encoding was determined by a higher-level protocol.

The CCXML language or these conformance criteria provide no designated size limits on any aspect of CCXML documents. There are no maximum values on the number of elements, the amount of character data, or the number of characters in attribute values.

J2. Using CCXML with other namespaces

The CCXML namespace may be used with other XML namespaces as per [XMLNS], although such documents are not strictly conforming CCXML documents as defined above. Future work by W3C will address ways to specify conformance for documents involving multiple namespaces.

J3. Conforming CCXML Processors

A CCXML Processor is a program that can parse and process Conforming CCXML Documents. In a CCXML Processor, the XML parser must be able to parse and process all XML constructs defined by XML 1.0 [XML] and Namespaces in XML [XMLNS]. This XML parser is not required to perform validation of a CCXML document as per its schema or DTD; this implies that during processing of a CCXML document it is optional to apply or expand external entity references defined in an external DTD.

A Conforming CCXML Processor must correctly understand and apply the semantics of each markup element as described by this document.

When a Conforming CCXML Processor encounters elements or attributes, other than xml:lang and xml:base, in a non-CCXML namespace it may:

There is, however, no conformance requirement with respect to performance characteristics of the CCXML Processor.

Appendix K - Basic HTTP Event I/O Processor

This section is Normative.

K.1 Overview

This appendix describes a "basichttp" event I/O event processor which uses HTTP ([RFC2616]) to transport events between a CCXML implementation and external components.

A CCXML implementation receives events from an external component via the "basichttp" processor. If the event is destined for an active CCXML session, the event and its parameters are injected into the session. Using the "basichttp" processor, events can be sent from a CCXML session with the <send> element to an external component.

The "basichttp" processor is intended as a minimal interoperable mechanism for sending and receiving events between external components and CCXML 1.0 implementations. Other event I/O processors may be more appropriate for advanced application scenarios. HTTP Basic Access Authentication ([RFC2617]) should be supported at a minimum. HTTP Digest Access Authentication ([RFC2617]), HTTPS, or other security techniques should be considered.

A CCXML 1.0 implementation must support the "basichttp" processor. Implementations may support other event injection processors so long as they do not have the type "basichttp" which is reserved for the processor described in this section.

K.2 Access URI

The access URI for the "basichttp" event I/O processor is the URI to which an external component can send an event for injection into an active session.

The access URI is available in a CCXML session via session.ioprocessors using the key "basichttp". For example, session.ioprocessors["basichttp"] returns the access URI (e.g. http://www.example.com/ccxml/basichttp) for the "basichttp" processor.

The access URI for the "basichttp" event processor may be sent to external components by, for example, its inclusion in the namelist attribute of the <send> element.

The access URI may also be specified in an implementation-specific manner (for example, product documentation).

K.3 Receiving Events

Input from external components can be received by the CCXML implementation at the "basichttp" access URI as HTTP POST requests. The request is analyzed by the "basichttp" event processor, resulting in

  1. an event being injected into an active CCXML session, or
  2. no action being taken (an error occurred, operation not permitted, etc)

The "basichttp" processor then indicates the result to the external component via the response code contained in the HTTP response.

Parameter values are passed into the "basichttp" processor using an encoded application/x-www-form-urlencoded body.

To inject an event into an existing CCXML session, the HTTP request must specify the id of the session and the name of the event. The session id MUST be specified as an HTTP parameter named "sessionid"

The name of the event must be specified using the HTTP parameter "name".

The following HTTP parameters are reserved:

sessionid
The value specifies the id of session into which the event is to be injected.
name
The value specifies the name of the event. The value is composed of alphanumeric and "." (dot) characters only. The first character must not be a dot or digit. The parameter is required.
eventsource
The value specifies a URI to which events may be sent (i.e. it may be used as the value of the target attribute in a <send> element). The parameter is optional.

Any non-reserved HTTP request parameters (in other words, all HTTP request parameters that are not listed in the table above) define the properties of the injected CCXML event. For instance, if the HTTP request contained a parameter named "foo" with value "bar", then the corresponding CCXML event object would have a property named "foo" (accessible as event$.foo), the value of which would be the string value "bar".

Request parameters names may contain one or more periods, in order to allow the injection of events with properties that are objects. For example, a parameter named "a.b" with a value of "1" represents an object named "a", which has a property "b" with a value of "1". A subsequent parameter "a.c" with a value of "2" would add a property named "c" with a value of "2" to that event. This scheme applies recursively; using "a.d.x" = "3" and "a.d.y" = "4" would result in a multi-level object. Request parameter names must be valid ECMAScript variable names, or must be composed of period-separated ECMAScript variable names. Request parameter values, both reserved and non-reserved, are treated as strings. The omission of a request parameter value will be treated as an empty string. Parameter names may not be repeated within a request. A request with repeated parameter names is considered to be invalid, and should be rejected by the "basichttp" event I/O processor.

The following subset of HTTP response codes are defined:

Response Code
 Description
204 (No Content) Injection successful: session id matches an active CCXML session id, event name and payload parameters are valid
400 (Bad Request) Injection failed: one or more parameters have an invalid name or value
401 (Unauthorized) Used in conjunction with HTTP Authentication ([RFC2617]): The request requires user authentication
403 (Forbidden) Injection failed: other reason (e.g. session id does not match an existing CCXML session id)
404 (Not Found) Injection failed: access URI invalid.
500 (Internal Server Error) Injection failed: internal server error.

Events injected into an active CCXML session by the "basichttp" processor provide the standard event attributes as described in Section 9.4.2. The name has the value of the "name" parameter. The eventsource has the value of the "eventsource" parameter if provided; otherwise eventsource is undefined. The eventid is a unique string identifier of the event generated by the "basichttp" processor. The eventsourcetype has the value "basichttp".

The payload parameters and their values are exposed as top level properties of the event object (complex parameter names require appropriate initialization of sub-objects). To avoid conflict with standard event attributes, payload parameters with the name "eventid" or "eventsourcetype" are ignored.

For example, if the access URI for the "basichttp" processor is set to "http://www.example.com/ccxml/basichttp", an external component can send an HTTP request as follows:

http://www.example.com/ccxml/basichttp?sessionid=ccxmlsession1&
name=basichttp.myevent&eventsource=http%3a//www.example.org/ccxmlext&
agent=agent12&site.location=orlando&site.code=RE445

If the session id matches an active CCXML session (i.e. its session.id is "ccxmlsession1") and the parameter names and values are valid, the processor injects the event into the session and sends an HTTP 204 response code. The event may then be handled by a transition such as:

<!-- Process incoming basichttp event -->
<transition state="'dialogActive'" event="basichttp.*" >

  <log expr="'Received event'" />
  <log expr="'name=' + event$.name" />
  <log expr="'sourcetype=' + event$.eventsourcetype" />
  <log expr="'eventsource=' + event$.eventsource" />
  <log expr="'agent=' + event$.agent" />
  <log expr="'site.location=' + event$.site.location" />
  <log expr="'site.code=' + event$.site.code" />

</transition>

where event$.name would have the value "basichttp.myevent", event$.eventsourcetype the value "basichttp", event$.eventsource the value "http://www.example.org/ccxmlext", event$.agent the value "agent12", event$.site.location the value "orlando" and event$.site.code the value "RE445".

K.4 Sending Events

Events can be sent from the CCXML implementation to an external component with the "basichttp" processor using the <send> element (Section 9.2.3) with the targettype attribute set to "basichttp". The target attribute is set to the access URI of the external component.

The HTTP method is "POST" and parameter values are encoded in an application/x-www-form-urlencoded body (POST method).

The id of the CCXML session id MUST be sent as a HTTP parameter named "session".

The name attribute MUST be specified as an HTTP parameter named "name". If the namelist attribute is defined, its variable names and values are mapped to HTTP parameters. Inline content is not supported.

The basic HTTP event I/O processor generates events in response to <send> as described in Section 9.3. An HTTP 204 response code returned by the external component (or a successful challenge-response resulting from a 401 Unauthorized response) is mapped to the CCXML event send.successful; all other HTTP response codes are mapped to error.send.failed.

Appendix L - Session Creation Event I/O Processor

This section is Normative.

L.1 Overview

This appendix describes a "createsession" event processor which can receive HTTP ([RFC2616]) requests from an external component to create new CCXML sessions.

The "createsession" processor is intended as a minimal interoperable mechanism to allow external components to create new sessions in CCXML 1.0 implementations. Other event I/O processors may be more appropriate for advanced application scenarios. Security issues may need to be addressed by the implementation. If security is not addressed as part of the deployment network configuration, then HTTP Authentication ([RFC2617]) , HTTPS, or other security techniques should be considered. Implementations may use additional HTTP parameters specifically to address security.

A CCXML 1.0 implementation may support a "createsession" event processor. Implementations may support alternative session creation event processors so long as they do not have the type "createsession" which is reserved for the processor described in this section.

L.2 Access URI

The access URI for the "createsession" event I/O processor is the URI to which an external component can send a session creation event.

If the implementation supports the "createsession" event processor, then its access URI is available in a CCXML session via session.ioprocessors using the key "createsession". For example, session.ioprocessors["createsession"] returns the access URI (e.g. http://www.example.com/ccxml/createsession) for the "createsession" type event I/O processor.

The access URI may also be specified in an implementation-specific manner (for example, product documentation).

L.3 Receiving Session Creation Events

A new CCXML session can be created by an external component when the "createsession" processor receives at its access URI an HTTP POST request with a "uri" parameter whose value is the CCXML document to load.

The following HTTP parameters are reserved:

uri
The value specifies the URI of the CCXML document for the session. The parameter is required.
eventsource
The value specifies a URI to which events may be sent from the created session using, for example, the "basichttp" event processor. The parameter is optional.
method
Equivalent to <createccxml>'s 'method' attribute; used to set the HTTP method applied in the fetch of the specified CCXML document. Allowed values are "get" or "post" (case-insensitive). If omitted, the default value is "get".
timeout
Equivalent to <createccxml>'s 'timeout' attribute; used to set the maximum time allowed when fetching a CCXML document before abandoning the fetch attempt and returning an error. If omitted, the CCXML platform will use a default value
maxage
Equivalent to <createccxml>'s 'maxage' attribute; used to set the max-age value of the Cache-Control header when fetching CCXML documents. If omitted, the CCXML platform will use a default value.
maxstale
Equivalent to <createccxml>'s 'maxstale' attribute; used to set the max-stale value of the Cache-Control header when fetching CCXML documents. If omitted, the CCXML platform will use a default value.
postbody
Used to set the application/x-www-form-urlencoded encoded HTTP body for "post" requests. This parameter is ignored if 'method' is set to "get". The value of this parameter is the prepared application/x-www-form-urlencoded content that has been URL-encoded.
fetchparam
Equivalent to <createccxml>'s 'fetchparam' attribute; used to pass information about the newly created session to the application server. If omitted, the default value is "none".

Other parameters provided in the HTTP request are treated as the event payload and made available in the created session. Single parameter values must be supported; multiple value parameters may be supported.

Payload parameter names must be valid ECMAScript variable names. Valid complex variable names are permitted; for example, "agent.role". Reserved and payload parameter values must be valid ECMAScript expressions.

The following HTTP response codes are defined:

Response Code Description
200 CCXML session created successful
400 Session not created: one or more parameters have an invalid name or value
401 Session not created: request lacks proper authorization
403 Session not created: other reason (e.g. CCXML document not found)
408 Session not created: timeout fetching CCXML document

If the CCXML session was created successfully, the HTTP 200 response MUST contain an 'application/x-www-form-urlencoded' body. The 'session.id' property of the newly created session MUST be returned in this body; other information MAY also be returned by the platform.

In the created session, session.startupmode is set to "external", the session.uri is to set to the value of the uri parameter and a session.values object is defined with the property type set to the value "createsession" and the property eventsource set to the value of the "eventsource" parameter. Other payload parameters are exposed as properties of session.values (complex parameter names require appropriate initialization of sub-objects). To avoid conflict with type defined above, payload parameters with the name "type" are ignored.

For example, an external component sends the following HTTP request to the "createsession" access URL:

http://www.example.com/ccxml/createsession?
uri=http://www.example.org/ccxml/myscript.ccxml&
eventsource=http://www.example.org/ccxmlext&
delay.value=500&delay.format=msecs&
vxmlscript=http://www.example.org/ccxml/myscript.vxml

If the "createsession" processor is supported by the CCXML implementation, the request parameter names and values are valid, and the ccxml document is successfully fetched and processed, then a new CCXML session is created with the following session variables:

session.id = 'ccxmlsession2'
session.startupmode = 'external'
session.uri = 'http://www.example.org/ccxml/myscript.ccxml'
session.values.type = 'createsession'
session.values.eventsource = 'http://www.example.org/ccxmlext'
session.values.delay.value = 500
session.values.delay.format = msecs
session.values.vxmlscript = 'http://www.example.org/ccxml/myscript.vxml'

The "createsession" processor then responds to the originating HTTP request by generating an HTTP 200 response code. The session id of the newly created CCXML session MUST be returned in the body of the response.
